2H0/2HZ
1-3-21
U034
Adjustment: Center line adjustment
1. Select the item to be adjusted.
*: Setting the difference value from reference value
2. Press the system menu key.
3. Press the start key to output a test pattern.
4. Press the system menu key.
5. Change the setting value using the +/- or numeric keys.
For output example 1, decrease the value. For output example 2, increase the value.

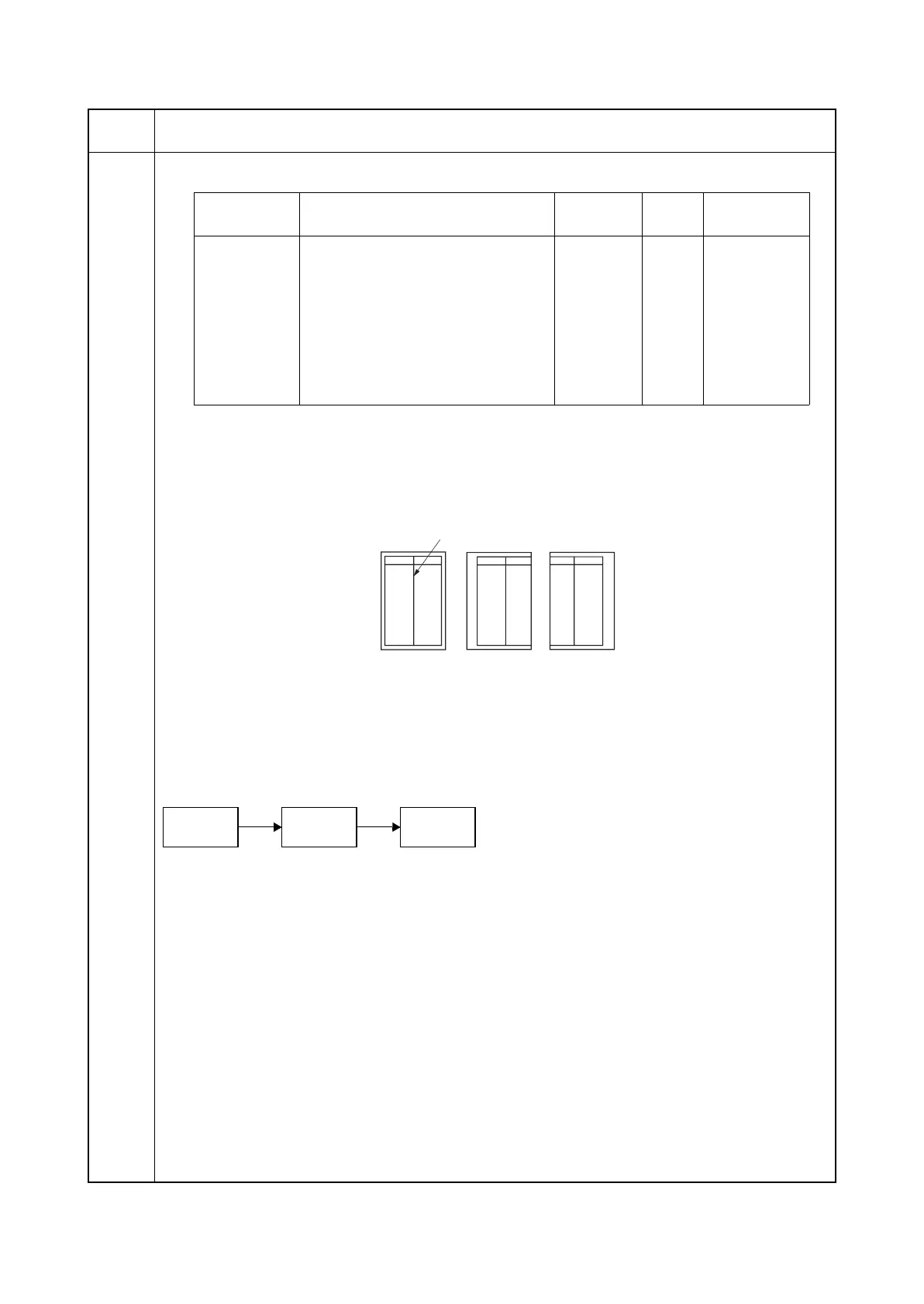

Figure 1-3-5
6. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Maintenance
item No.
Description
Display Description Setting
range
Initial
setting
Change in
value per step
LEFT Adjustment of reference value 0 to 1000 180 0.042 mm
MP TRAY Paper feed from MP tray* -500 to 500 0 0.042 mm
CASSETTE 1 Paper feed from cassette 1* -500 to 500 0 0.042 mm
CASSETTE 2 Paper feed from cassette 2* -500 to 500 0 0.042 mm
CASSETTE 3 Paper feed from optional cassette 3* -500 to 500 0 0.042 mm
CASSETTE 4 Paper feed from optional cassette 4* -500 to 500 0 0.042 mm
DUPLEX Duplex mode (second side)* -500 to 500 0 0.042 mm
Center line of printing
Correct image Output
example 1
Output
example 2
U034
U067
(P.1-3-29)
U072
(P.1-3-34)
To Next Page
