Kyocera KM-3060 Service Manual

2H0/2HZ-1
1-3-32
U071
Adjusting the DP scanning timing
Description
Adjusts the DP original scanning timing.
Purpose
Make the adjustment if there is a regular error between the leading or trailing edges of the original and the
copy image when the optional DP is used.
Method
1. Press the start key.
2. Select the item to be adjusted.
Adjustment: Leading edge registration
1. Press the system menu key.
2. Place an original on the DP and press the start key to make a test copy.
3. Press the system menu key.
4. Change the setting value using the +/- or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.

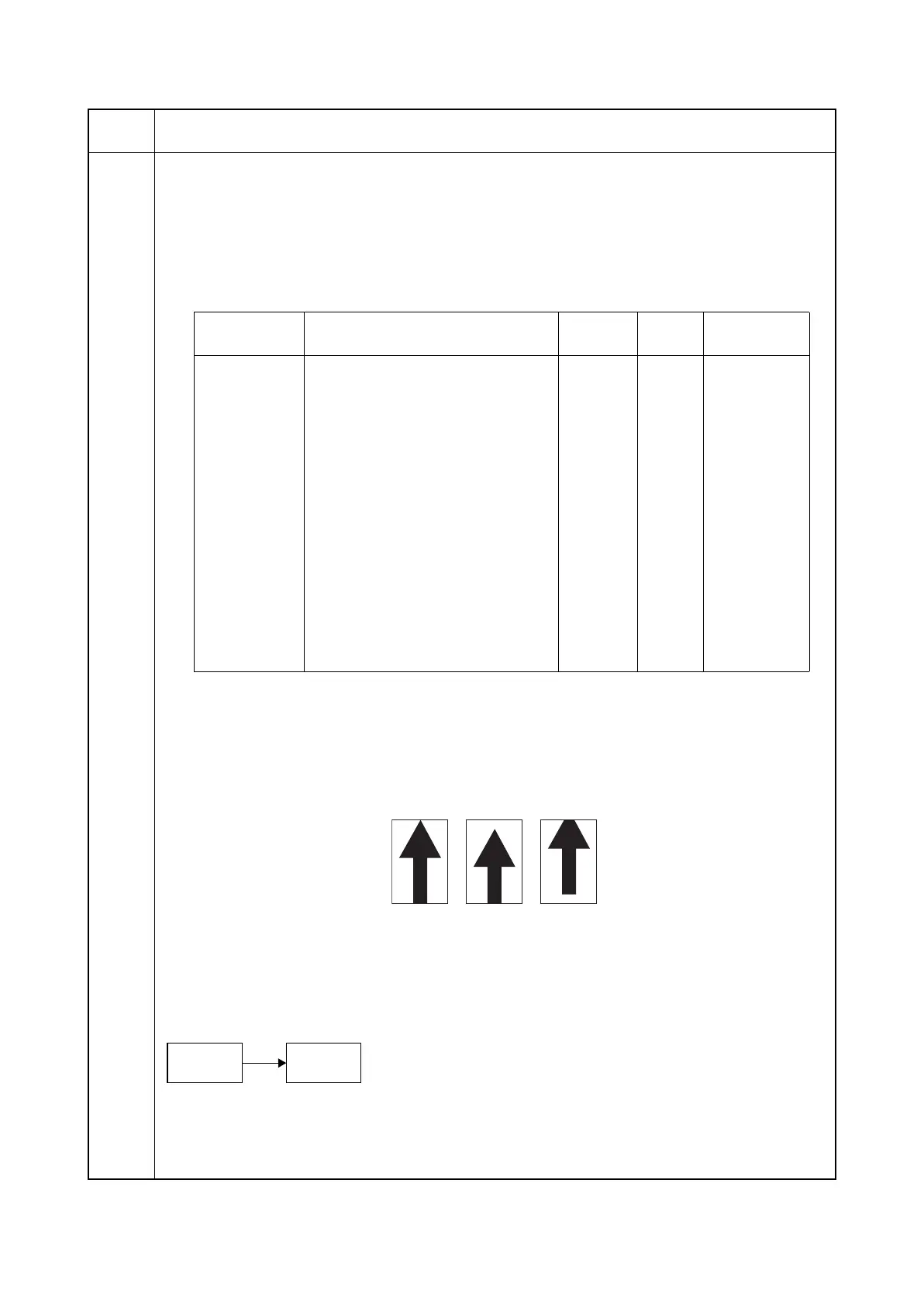

Figure 1-3-14
5. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Maintenance
item No.
Description
Display Description Setting
range
Initial
setting
Change in
value per step
ADJUST
DATA1
Leading edge registration (first page) -32 to 32 0 0.196 mm
ADJUST
DATA2
Trailing edge registration (first page) -32 to 28 0 0.196 mm
ADJUST
DATA3
Leading edge registration (second
page)
-32 to 32 0 0.196 mm
ADJUST
DATA4
Trailing edge registration (second
page)
-32 to 28 0 0.196 mm
ADJUST
DATA1(H)
Leading edge registration at high-
speed scanning (first page)
-32 to 32 0 0.196 mm
ADJUST
DATA2(H)
Trailing edge registration at high-speed
scanning (first page)
-32 to 28 0 0.196 mm
ADJUST
DATA3(H)
Leading edge registration at high-
speed scanning (second page)
-32 to 32 0 0.196 mm
ADJUST
DATA4(H)
Trailing edge registration at high-speed
scanning (second page)
-32 to 28 0 0.196 mm
Original Copy
example 1
Copy
example 2
U071
U404
(P.1-3-66)
