2H0/2HZ-1
1-5-49
(5) Detaching and refitting the heat roller
Follow the procedure below to replace the heat roller.
Procedure
1. Remove the fuser heater (see page 1-5-47).
2. Remove the heat roller separation claws
(see page 1-5-44).
3. Remove the front and rear heat bushes from
right fuser frame.
4. Remove the fuser gear Z46, front and rear
heat bushes from heat roller.
5. Replace the heat roller and install the roller
6. Refit all the removed parts.

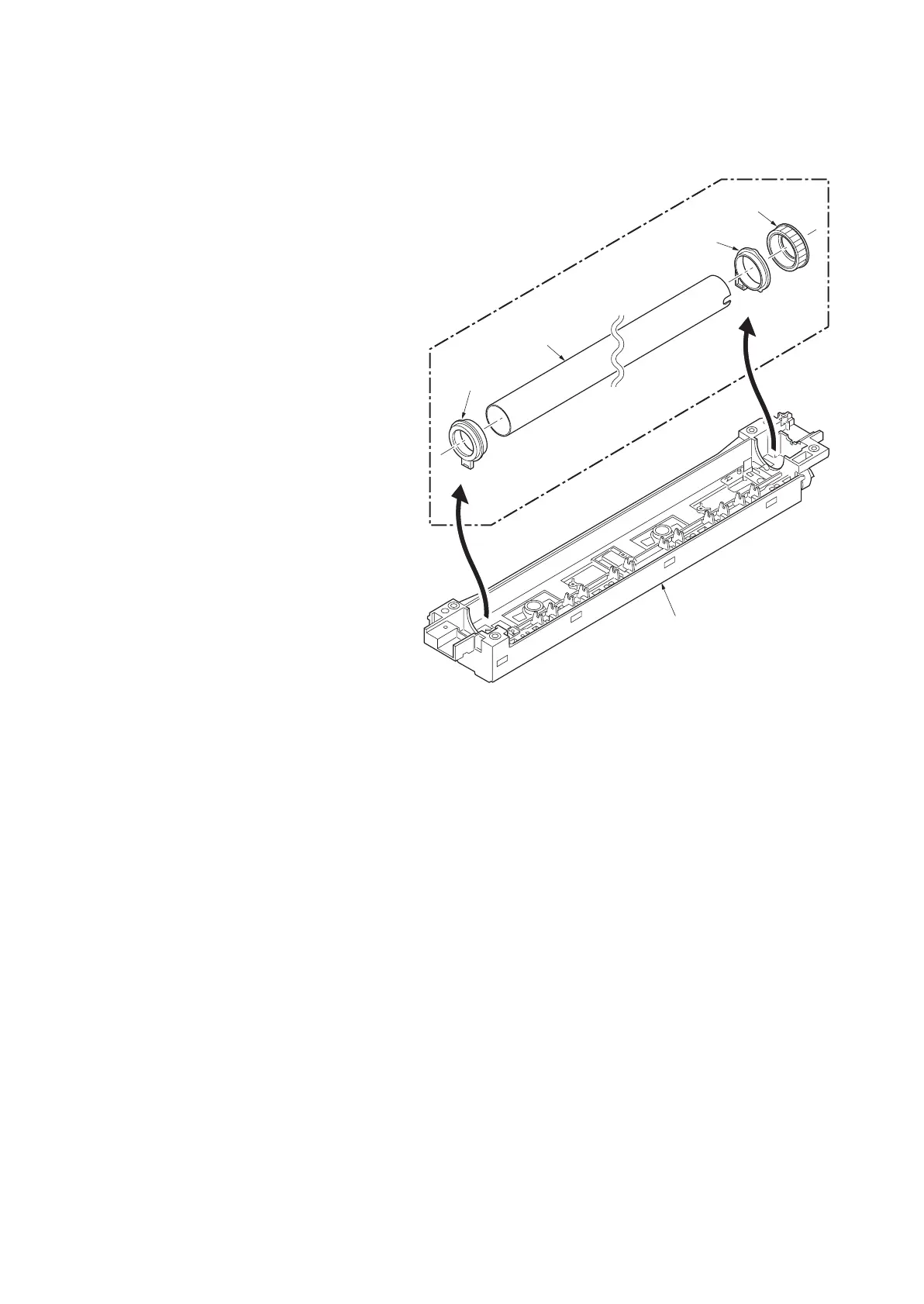

Figure 1-5-90
Heat roller
Front heat
bush
Right fuser frame
Rear heat
bush
Fuser gear Z46
To Next Page
