2H0/2HZ
1-5-41
1-5-7
Fuser section
(1) Detaching and refi
tting the fuser unit

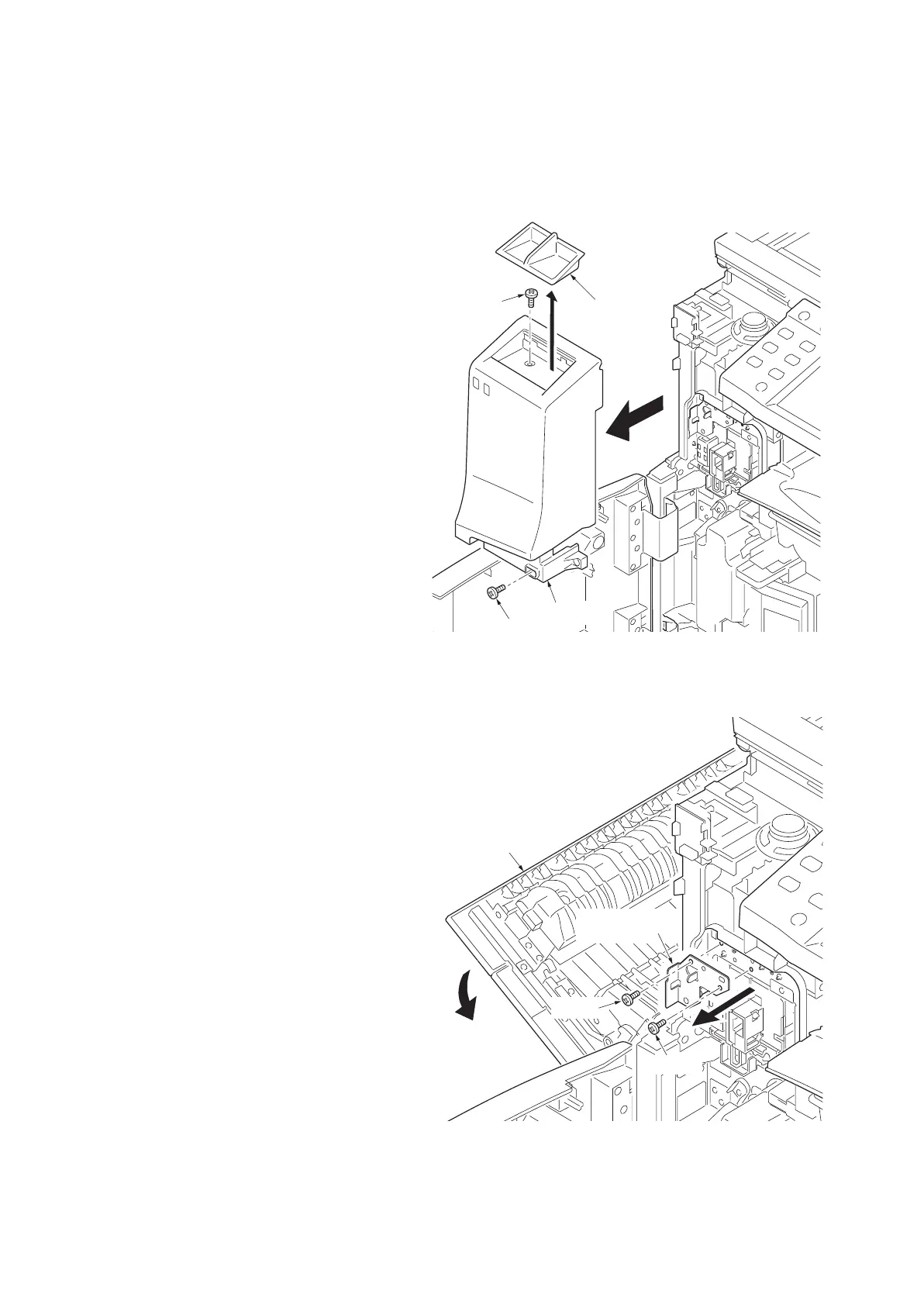

Follow the procedure below to check or replace the fuser unit.
Procedure
1.
Open the front cover.
2.
Remove the clip holder
.
3.
Remove two screws a
nd remove front
left
cover
.
Figure 1-5-75
4.
Open t
he left
cover 1.
5.
Remove two screws and remove the lef
t
cover hook.
Figure 1-5-76
Front left cover
Clip holder
Screw
Screw
Screw
Left cover hook
Left cover 1
Screw
220
222
