Kyocera KM-3060 Service Manual

2H0/2HZ
1-3-27
U065
Adjusting the scanner magnification
Description
Adjusts the magnification of the original scanning.
Purpose
Make the adjustment if the magnification in the main scanning direction is incorrect.
Make the adjustment if the magnification in the auxiliary scanning direction is incorrect.
Caution
Adjust the magnification of the scanner in the following order.
Method
1. Press the start key.
2. Select the item to be adjusted.
Adjustment: Main scanning direction
1. Press the system menu key.
2. Place an original and press the start key to make a test copy.
3. Press the system menu key.
4. Change the setting value using the +/- or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.

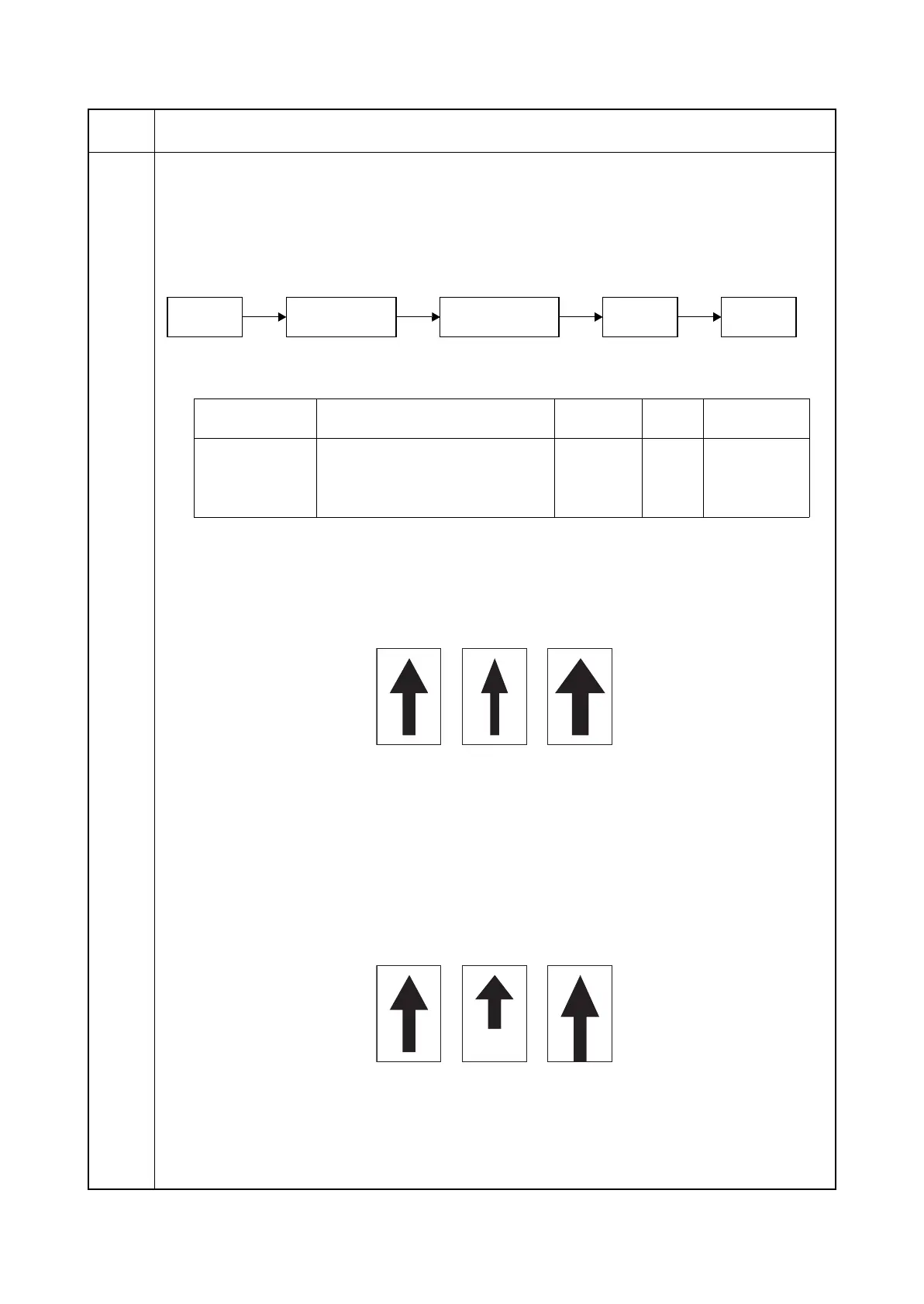

Figure 1-3-9
5. Press the start key. The value is set.
Adjustment: Auxiliary scanning direction
1. Press the system menu key.
2. Place an original and press the start key to make a test copy.
3. Press the system menu key.
4. Change the setting value using the +/- or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Figure 1-3-10
5. Press the start key. The value is set.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
U065
(main scanning
direction)
U053
(P.1-3-24)
U067
(P.1-3-29)
U065
(auxiliary scanning
direction)
U070
(P.1-3-31)
Display Description Setting
range
Initial
setting
Change in
value per step
MAIN SCAN ADJ Scanner magnification in the main
scanning direction
-15 to 15 0 0.1 %
SUB SCAN ADJ Scanner magnification in the auxil-
iary scanning direction
-25 to 25 0 0.1 %
Original Copy
example 1
Copy
example 2
Original Copy
example 1
Copy
example 2
