2H0/2HZ-1
1-5-51

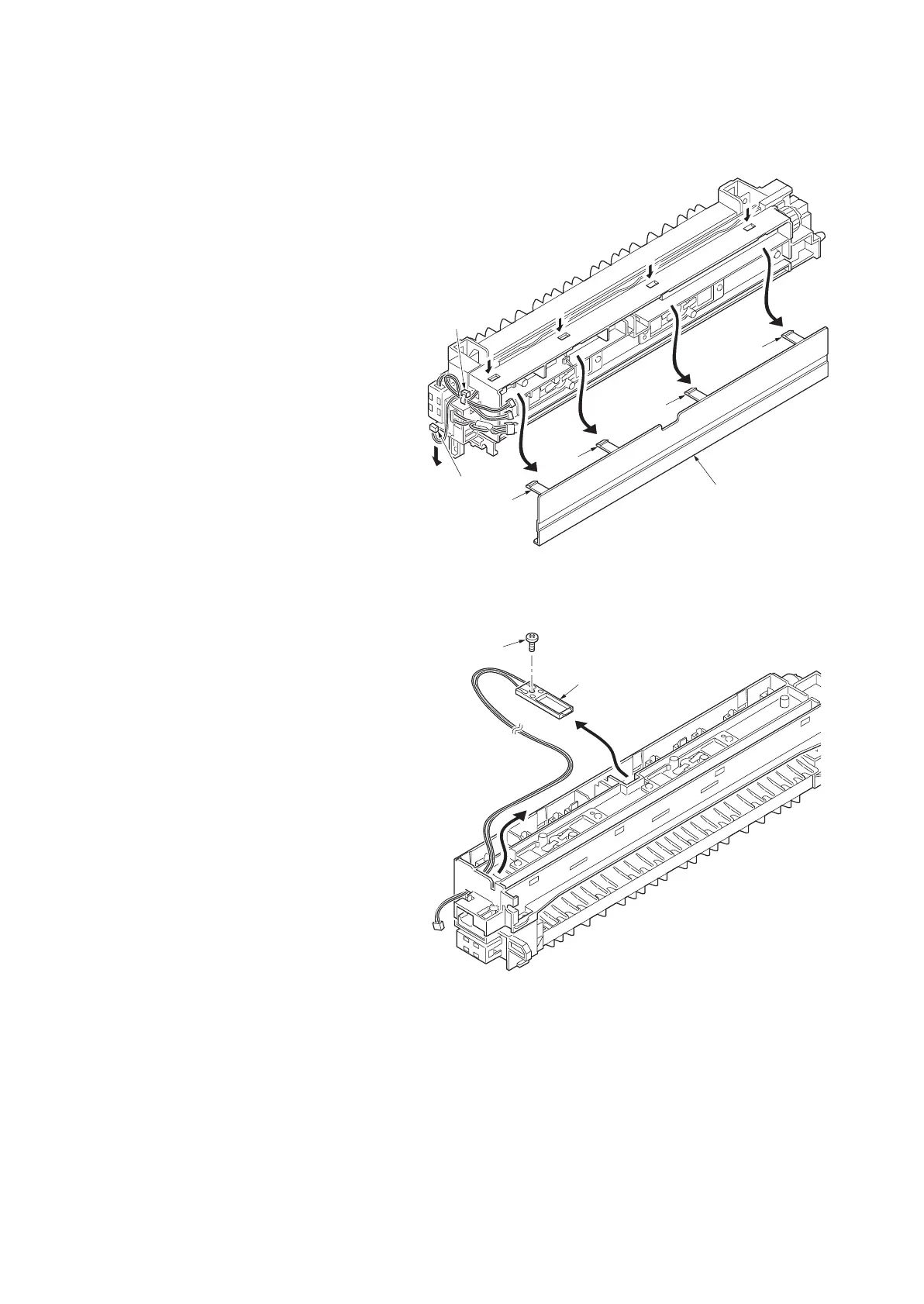

(7) Detaching and refitting the fuser thermistor 2
Follow the procedure below to replace the fuser thermistor 2.
Procedure
1. Remove the fuser unit (see page 1-5-41).
2. Remove four claws and remove the fuser
unit cover.
3. Remove the connector.
4. Remove the band.
Figure 1-5-92
5. Remove the screw and remove the fuser
thermistor 2.
6. Replace the fuser thermistor 2 and install
the thermistor.
7. Refit all the removed parts.
Figure 1-5-93
Fuser unit cover
Claw
Connector
Band
Claw
Claw
Claw
Screw
Fuser thermistor 2
To Next Page
