2H0/2HZ
1-5-3
1-5-2 Paper feed section
(1) Detaching and refitting the forwarding, paper feed and separation pulleys
Follow the procedure below to replace the forwarding, paper feed and separation pulleys.
Procedure

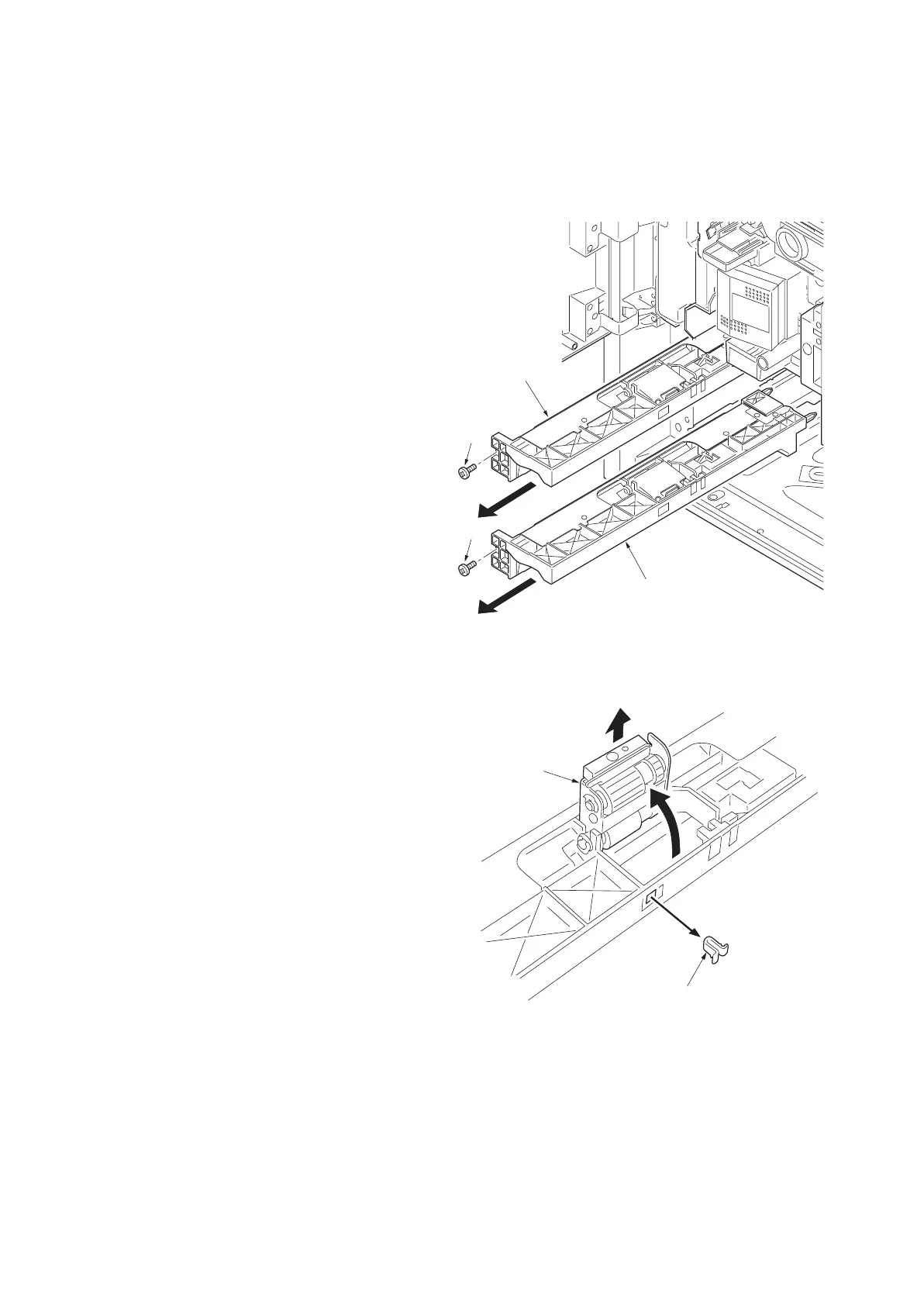

Removing the primary paper feed units
1. Open the front cover and pull out the cas-
settes 1 and 2.
2. Remove the screw and remove the primary
paper feed unit.
Figure 1-5-3
Removing the forwarding pulley
3. Remove the stopper from the primary paper
feed unit.
4. Raise the forwarding pulley retainer in the
direction of the arrow, and remove the
retainer from the primary paper feed unit.
Figure 1-5-4
Primary paper feed unit
Primary paper feed unit
Screw
Screw
Forwarding
pulley retainer
Stopper
To Next Page
