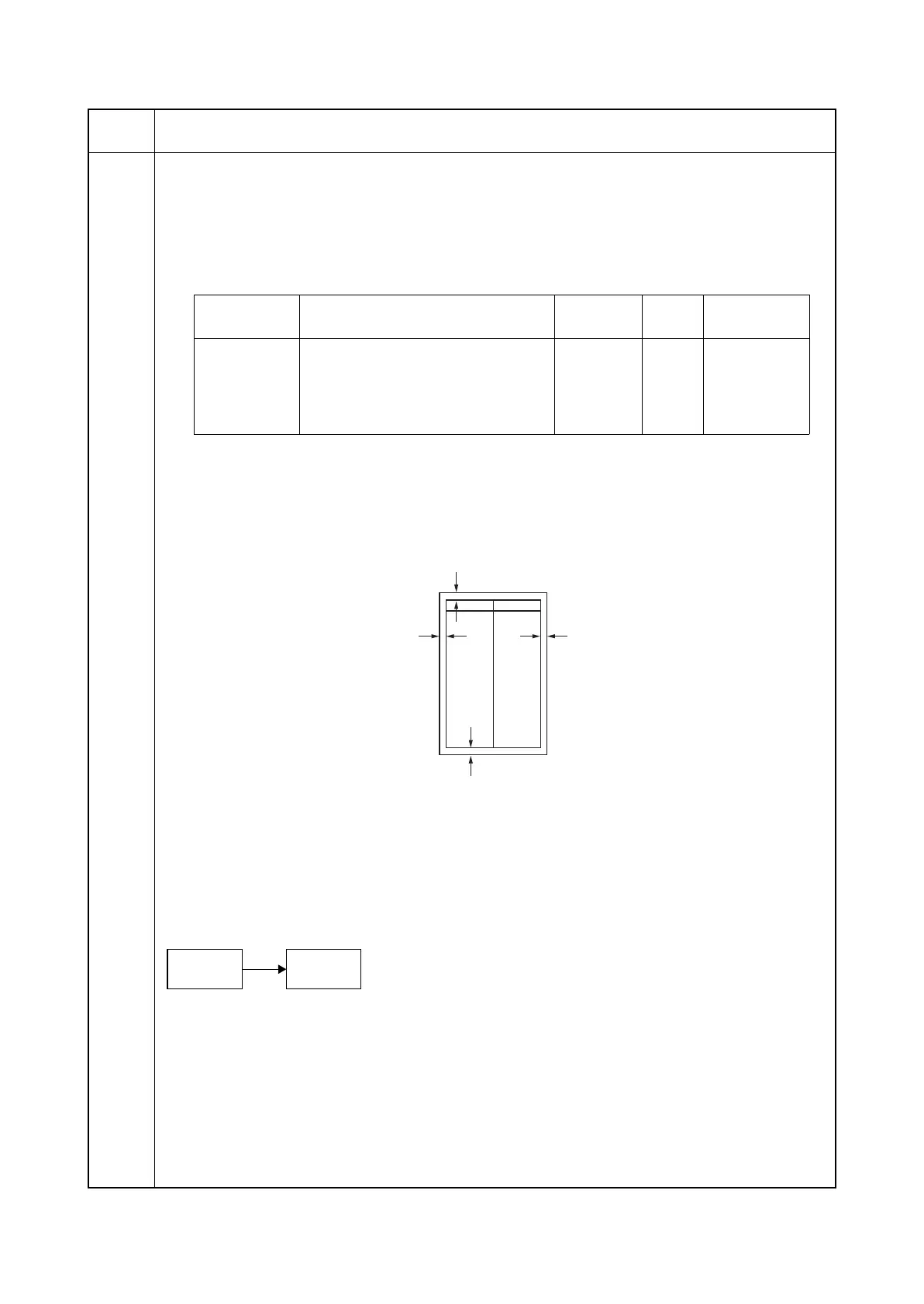

Adjusting margins for scanning an original on the platen
Description
Adjusts margins for scanning the original on the platen.
Purpose
Make the adjustment if margins are incorrect.
Adjustment
1. Press the start key.
2. Select the item to be adjusted.
3. Press the system menu key.
4. Place an original and press the start key to make a test copy.
5. Press the system menu key.
6. Change the setting value using the +/- keys.
Increasing the value makes the margin wider, and decreasing it makes the margin narrower.
Figure 1-3-19
7. Press the start key. The value is set.
Caution
Check the copy image after the adjustment. If the image is still incorrect, perform the following adjustments in
maintenance mode.
Completion
Press the stop key. The indication for selecting a maintenance item No. appears.
Maintenance
item No.
Description
Display Description
Setting
range
Initial
setting
Change in
value per step
A MARGIN Scanner left margin 0 to 10.0 2.0 0.5 mm
B MARGIN Scanner leading edge margin 0 to 10.0 2.0 0.5 mm
C MARGIN Scanner right margin 0 to 10.0 2.0 0.5 mm
D MARGIN Scanner trailing edge margin 0 to 10.0 2.0 0.5 mm
Scanner leading edge margin
(3±1.5 mm)
Scanner
left margin
(2±1.0 mm)
Scanner
right margin
(2±1.0 mm)
Scanner trailing edge margin
(2±1.0 mm)
U403
U404
(P.1-3-66)
To Next Page
