2H0/2HZ-1
1-5-44
(2) Detaching and refitting the heat roller separation claws
Follow the procedure below to replace the heat roller separation claws.
Procedure
1. Remove the fuser heater (see page 1-5-47).
2. Remove four screws.
3. Remove four claws and remove the rear
fuser guide.

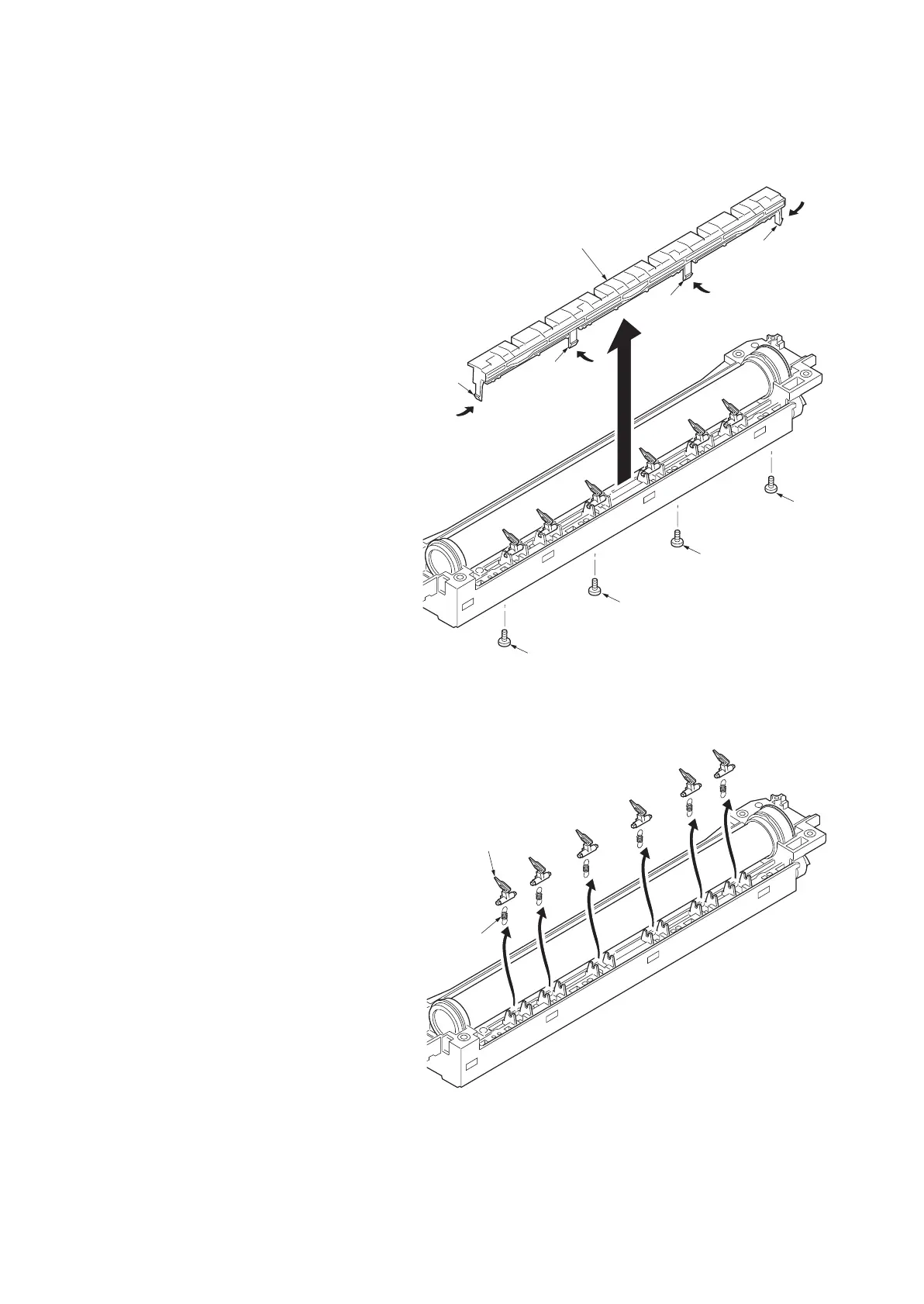

Figure 1-5-81
4. Remove the spring and remove the heat
roller separation claws.
5. Replace the heat roller separation claws and
install the claws.
6. Refit all the removed parts.
Figure 1-5-82
Screw
Screw
Screw
Screw
Rear fuser guide
Claw
Claw
Claw
Claw
Spring
Heat roller
separation claw
To Next Page
