2-1-7 Fuser section
The fuser section consists of the parts shown in Figure 2-1-18. When paper reaches the fuser section after the transfer
process, it passes between the press roller and heat roller, which is heated by fuser heaters M or S (FH-M or FH-S). Pres-
sure is applied by the fuser unit pressure springs so that the toner on the paper is melted, fused and fixed onto the paper.
The heat roller is heated by fuser heaters M or S (FH-M or FH-S) inside it; its surface temperature is detected by the fuser
thermistor 1 and 2 (FTH1/2), and is regulated by the fuser heaters turning on and off.
If the fuser section becomes abnormally hot, fuser thermostat 1 and 2 (FTS1/2) operates shutting the power to the fuser
heaters off. When the fusing process is completed, the paper is separated from the heat roller by its separation claws and
is conveyed from the machine to eject and switchback section.

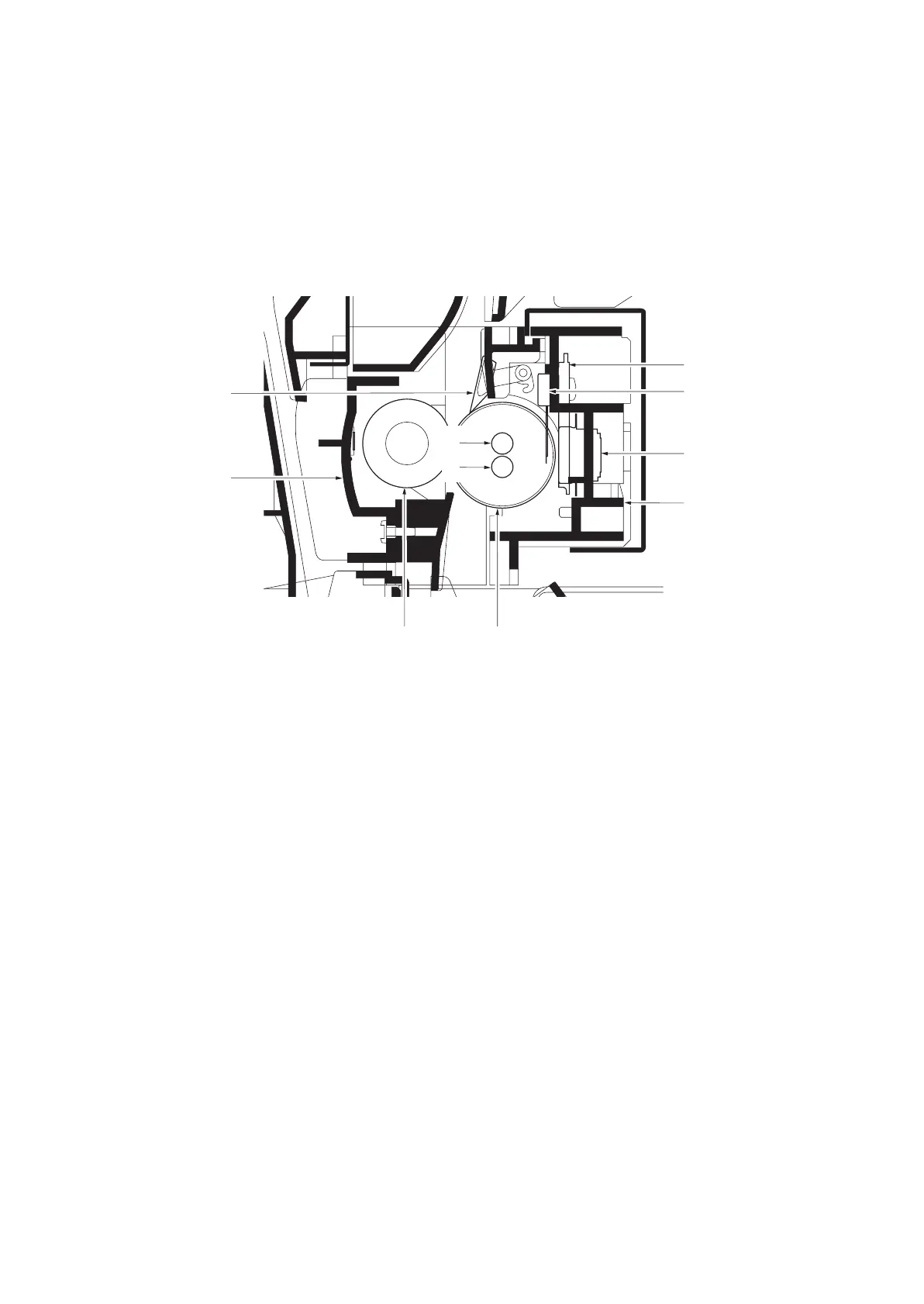

Figure 2-1-18 Fuser section
4
5
6
11
1
3
7,8
2
9
10
(1) Left fuser frame
(2) Right fuser frame
(3) Heat roller
(4) Heat roller separation claws
(5) Fuser heater M (FH-M)
(6) Fuser heater S (FH-S)
(7) Fuser thermostat 1 (FTS1)
(8) Fuser thermostat 2 (FTS2)
(9) Fuser thermistor 1 (FTH1)
(10) Fuser thermistor 2 (FTH2)
(11) Press roller
