2H0/2HZ
1-5-23
(3) Detaching and refitting the scanner wires
Take the following procedure when the scanner wires are broken or to be replaced.
(3-1) Detaching the scanner wires
Procedure
1. Remove the scanner unit (see page 1-5-19).
2. Remove the exposure lamp (see page 1-5-
15).
3. Remove the screw and remove the slit
holder plate.
4. Remove the slit glass.

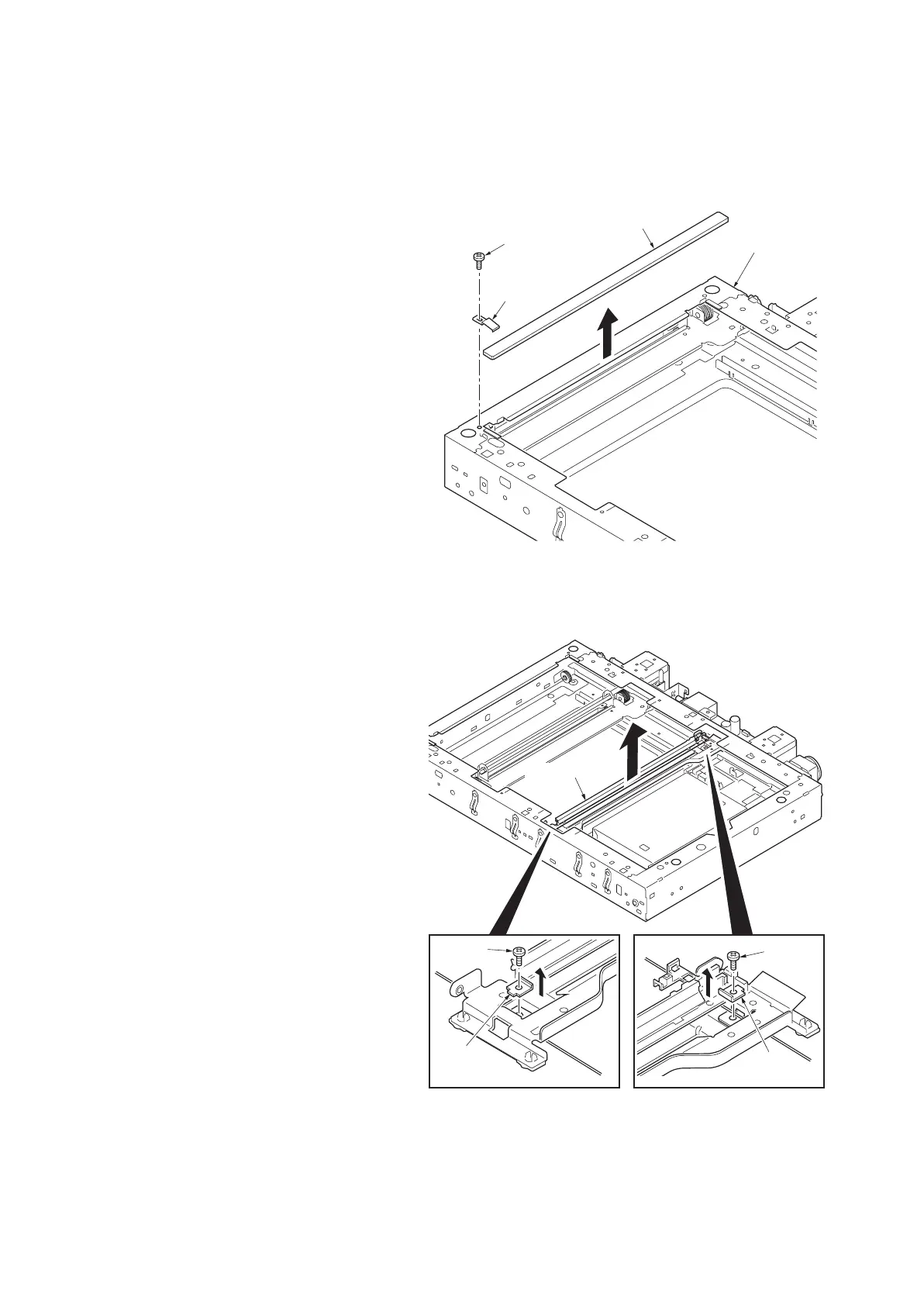

Figure 1-5-42
5. Remove each screw and remove front and
rear wire holder plates.
6. Remove the mirror 1 frame from the scanner
unit.
Figure 1-5-43
Screw
Slit glass
Scanner unit
Slit holder
plate
Screw
Mirror 1 frame
Front wire
holder plate
Rear wire
holder plate
Screw
To Next Page
