2H0/2HZ
-1
1-5-59
(3) Detaching and refi
tting the hard disk

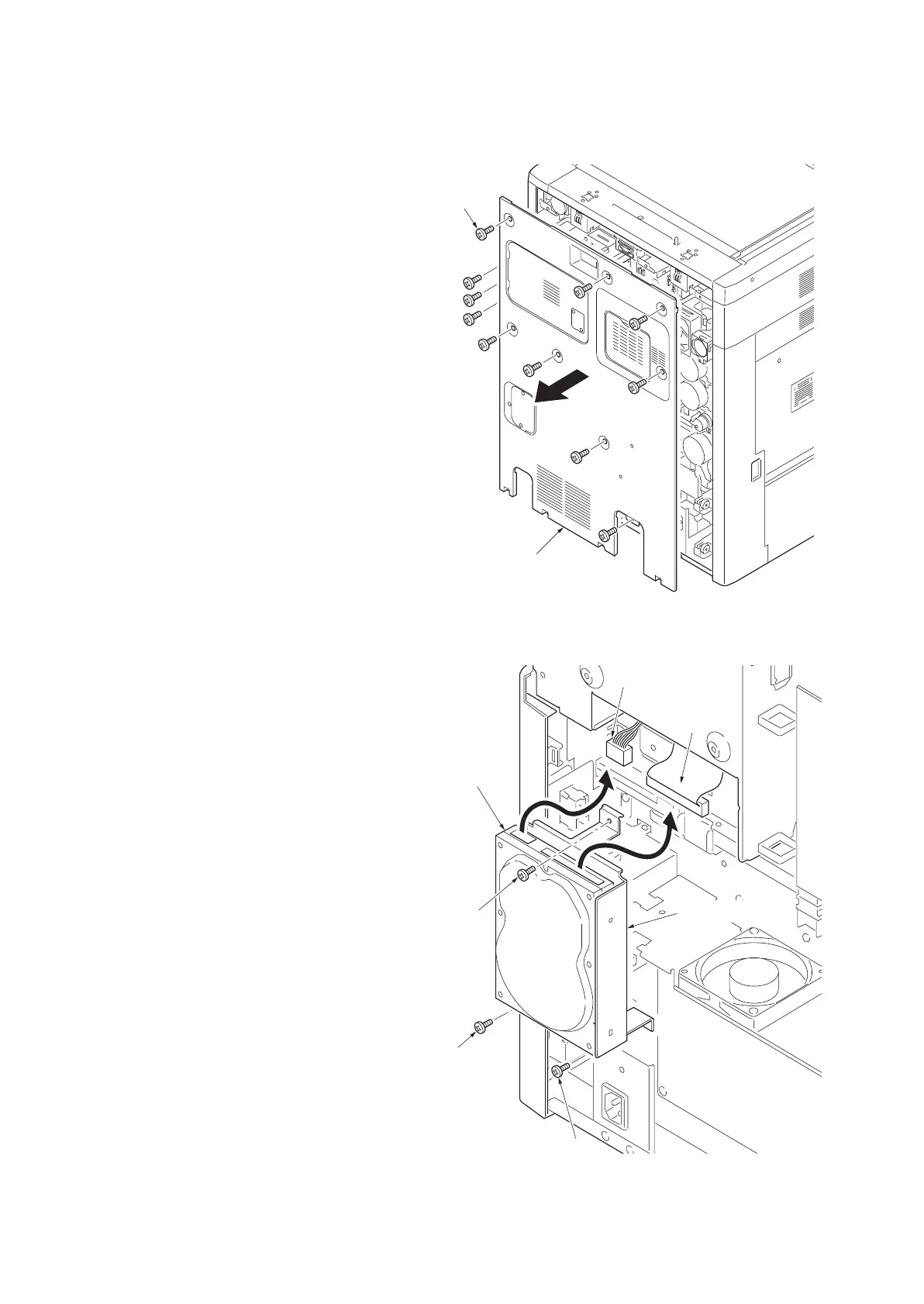

Follow the procedure below to replace the hard disk.
Procedure
1.
Remove eleven screws
and remove the rear
cover
.
Figure 1-5-106
2.
Remove two connectors.
3.
Remove three screws
and remove the HDD
mount.
Figure 1-5-107
Screws
(eleven)
Rear cover
Screw
Screw
Screw
Connector
Connector
HDD mount
Hard disk
238
240
