2H0/2HZ
2-1-12
2-1-5 Transfer and separation sections
The transfer and separation section consists mainly of the transfer roller, separation electrode and drum separation claws.
A high voltage generated by the high voltage PWB (HVTPWB) is applied to the transfer roller for transfer charging.
Paper after transfer is separated from the drum by applying separation charging that is output from the high voltage PWB
(HVTPWB) to the separation electrode.

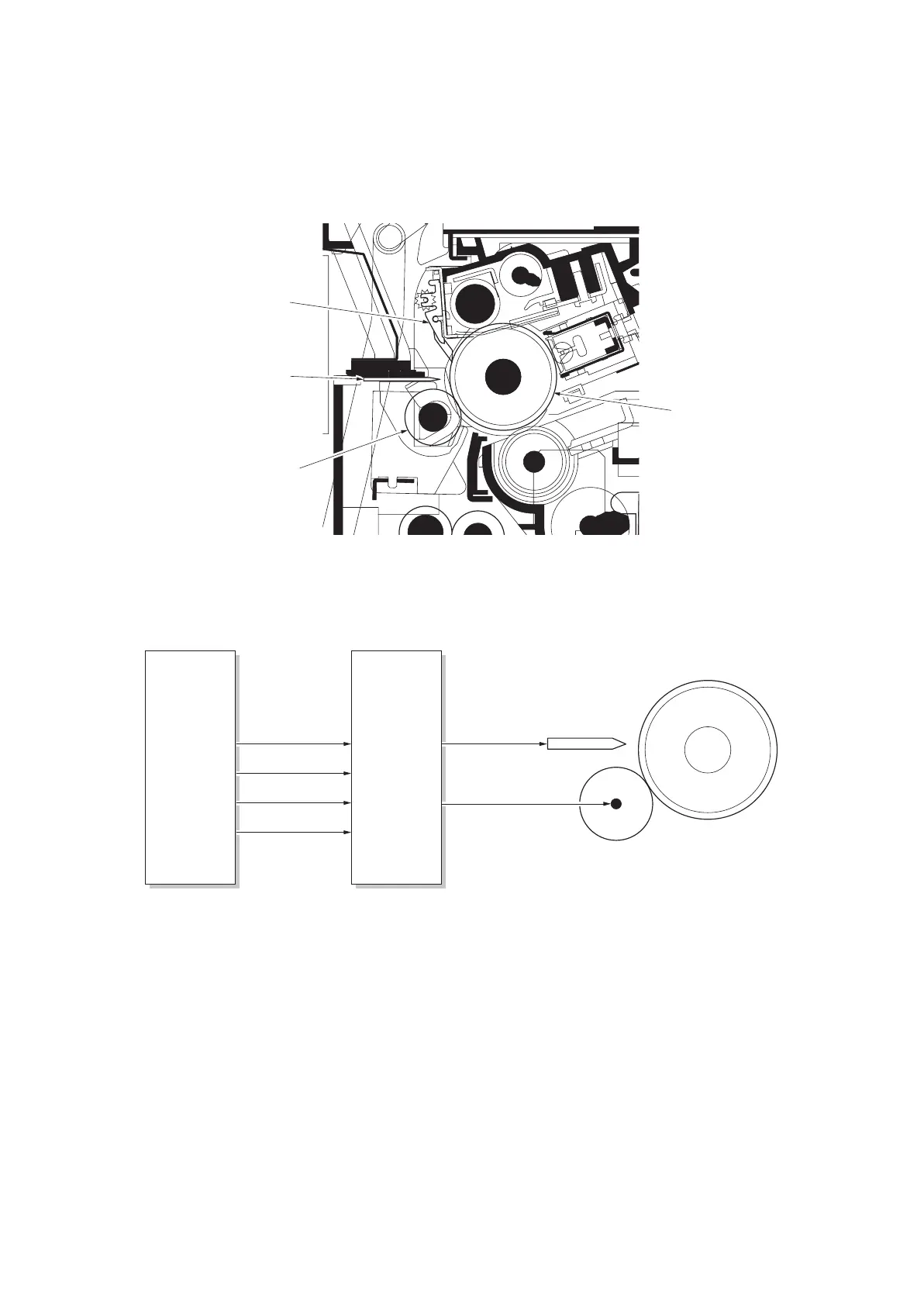

Figure 2-1-14 Transfer and separation sections
Figure 2-1-15 Transfer and separation sections block diagram
Drum
Drum
separation
claws
Separation
electrode
Transfer roller
Drum
Separation
electrode
Transfer roller
Separation
high voltager
SHVDRN
Transfe
high voltager
HVTPWB
CN1-9
SHVISELN
CN1-4
THVADJC
CN1-3
THVDRN
CN1-2
EPWB
YC12-4
YC12-9
YC12-10
YC12-11
