2H0/2HZ-1
1-5-50
(6) Detaching and
refitting the fuser thermistor 1
Follow the procedure below to replace the fuser thermistor 1.
Procedure
1.
Remove the heat roller (see page 1-5-49).
2.
Remove the screw and remove the fuser
thermistor 1.
3.
Replace the fuser thermistor 1 and install
the thermistor.
4.
Refit all the removed parts.

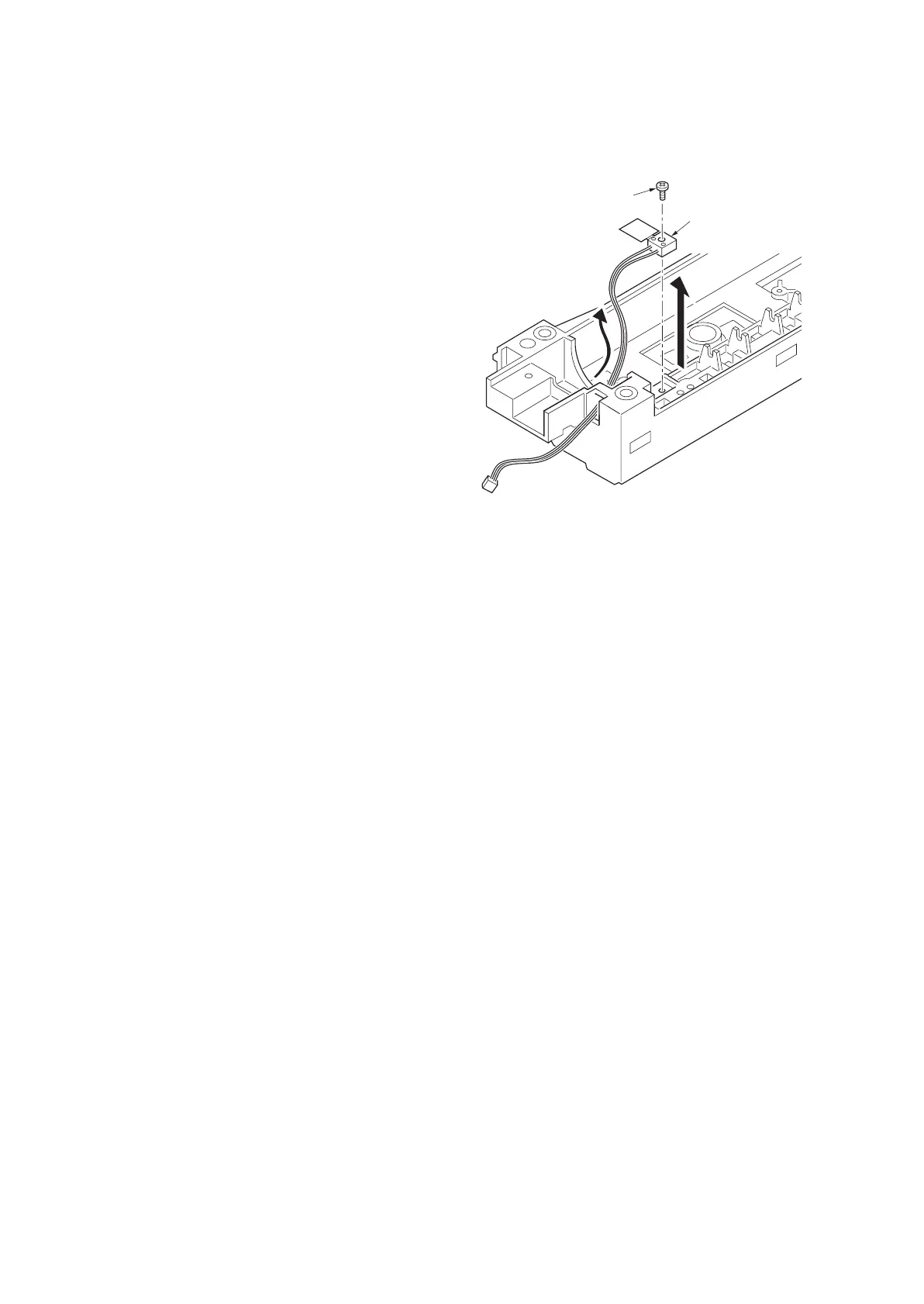

Figure 1-5-91
Screw
Fuser thermistor 1
229
231
