4.10.10 Keyboard for 8.4-type Display Unit (FCU8-KB025)

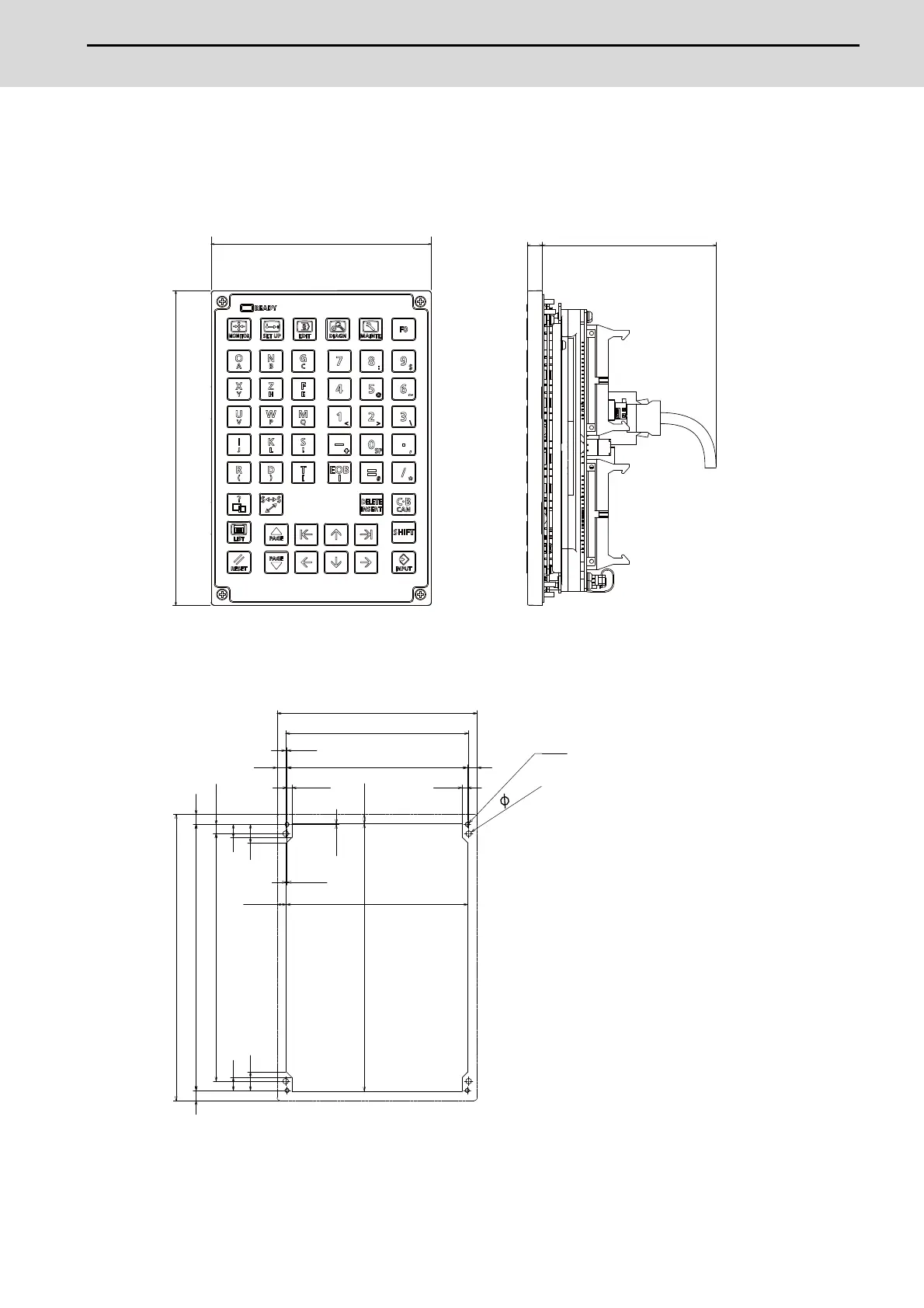

[Outline dimension]
(Note) The above side view shows the state with the operation panel I/O unit mounted.
[Panel cut dimension]
140
200
9.5
[mm]
110
(Space required for wiring)
[mm]
128±0.3
140
127
126±0.3
0.5
187
173±0.3 186±0.3
(7)
(7)
(7)
(7)
9
13
9
13
(6.5)
3.5
3.5
0.5
(6.5)
6.5±0.2
1±0.2
4-M3
200
(Unit outline)
(Unit outline)
(Square hole
dimension)
(Square hole dimension)
screw
4 - 4 holes
