M800S/M80/E80 Series Connection and Setup Manual
15 Cable
373
IB-1501269-J

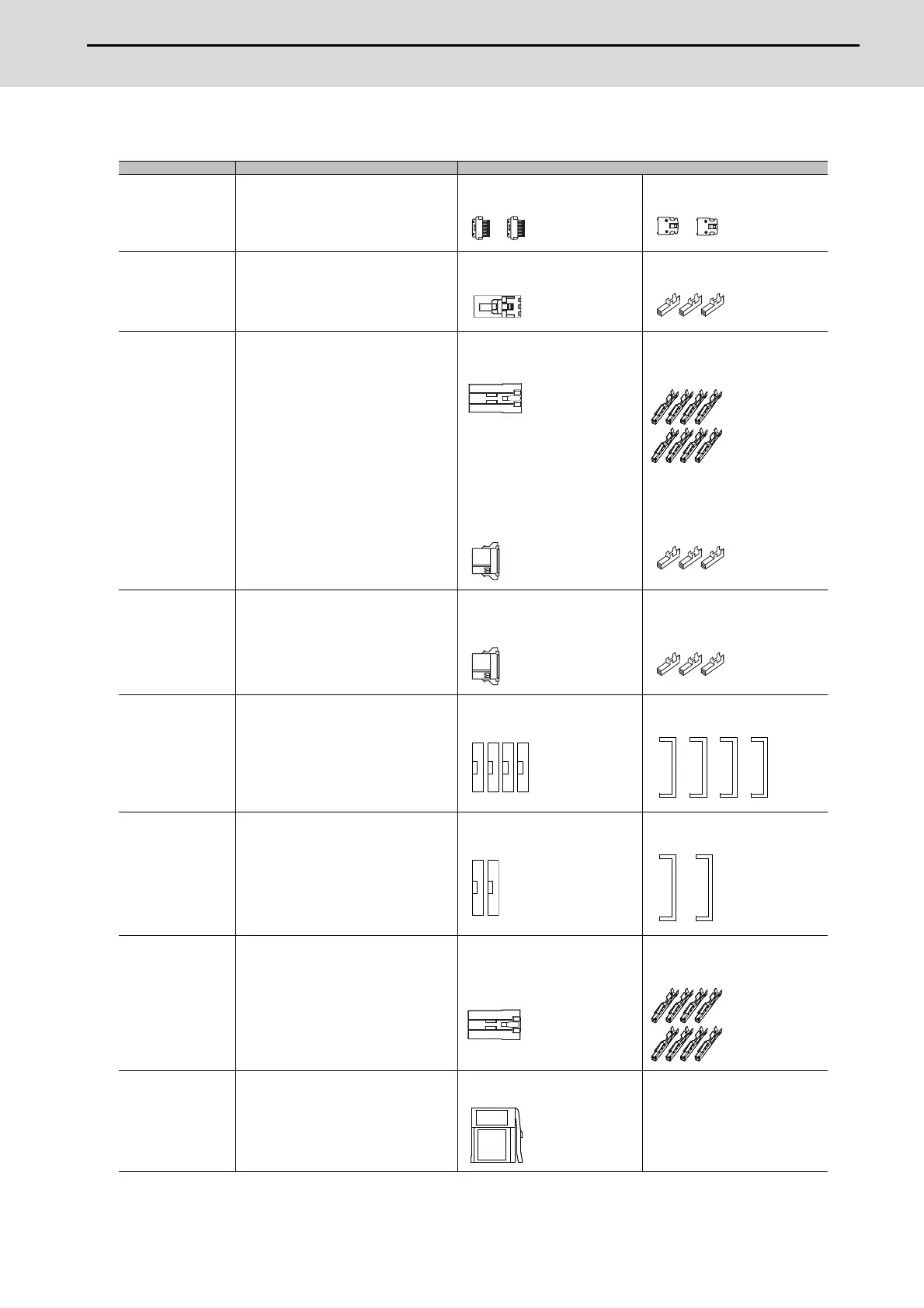

15.4 List of Cable Connector Sets
Type Application Package contents
FCUA-CS000
General I/O units
(For SKIP,SIO,MPG,AIO)
Connector (3M)
10120-3000PE x 2pcs.
Shell kit (3M)
10320-52F0-008 x 2pcs.
005057-9403
0016020103 x 3 pcs.
Emergency stop connector
(For EMG)
Connector (MOLEX)
50-57-9403 x 1pc.
Gold contact (MOLEX)
0016020103 x 3 pcs.
RIO2 CON Connector kit for RIO 2.0 unit
Connector
(Tyco Electronics)
1-1318119-3 x 2pcs.
Connector
(Tyco Electronics)
2-178288-3 x 1pc.
Contact
(Tyco Electronics)
1318107-1 x 8pcs.
Contact
(Tyco Electronics)
1-175218-5 x 3pcs.
FCUA-CN220
24VDC power supply connector
(For DCIN)
Connector
(Tyco Electronics)
2-178288-3 x 1pc.
Contact
(Tyco Electronics)
1-175218-5 x 3pcs.
7940-6500SC x
4pcs.
3448-7940 x 4pcs.
DO connector (for operation panel I/O
unit)
DI/DO connector (for remote I/O unit)
Connector (3M)
7940-6500SC x 4pcs.
Strain relief (3M)
3448-7940 x 4pcs.
7950-6500SC x
2pcs.
3448-7950 x 2pcs.
DI connector (for operation panel I/O
unit)
Connector (3M)
7950-6500SC x 2pcs.
Strain relief (3M)
3448-7950 x 2pcs.
2-1318119-4
1318107-1 x 8pcs.
Connector for CJ71
Connector
(Tyco Electronics)
2-1318119-4 x 1pc.
Contact
(Tyco Electronics)
1318107-1 x 8pcs.
37104-2165-000FL
10P
THERMISTOR connector
(For thermistor input unit)
Connector (3M)
37104-2165-000FL x 10pcs.
