M800S/M80/E80 Series Connection and Setup Manual
24 Setting the Machine Error Compensation
501
IB-1501269-J
24.2 Bidirectional pitch error compensation
24.2.1 Outline
Compensation amounts can be set respectively for the movement in positive and negative directions, and
compensation can be made for each direction. This method will reduce the difference between the path in the
positive direction and path in the negative direction.
You can set the compensation amount for each division point obtained by equally dividing the machine coordinates

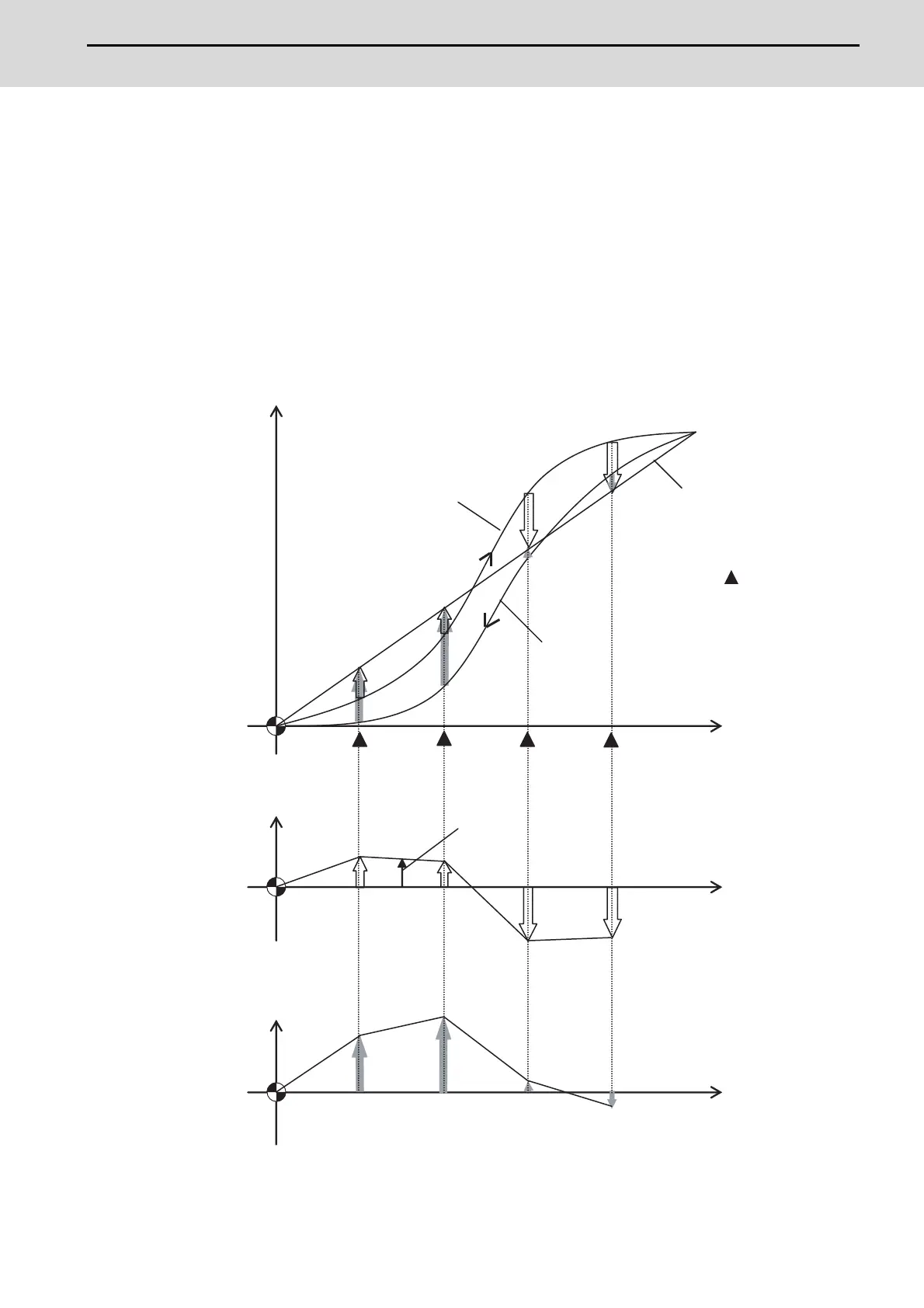

based on the reference position. (See the figure below.)
The compensation amount can be set by either the absolute or incremental amount method. Select the method with
"#4000 Pinc".
Machine position between division points "n" and "n+1" is smoothly compensated by the linear approximation of the
compensation amount.
n n+1 n+2 n+3
Actual machine position
Ideal machine position
: Division point
Commanded
machine position
Commanded
machine position
Commanded
machine position
Compensation amount
between two division points
Relationship between the compensation amount and machine position
Actual machine position
without compensation
(When moving in the forward
direction)
Actual machine position without
compensation
(When moving in the negative direction)
Compensation
amount in the
positive direction
Compensation
amount in the
negative direction
