M800S/M80/E80 Series Connection and Setup Manual
22 Setting the Position Detection System
457
IB-1501269-J
22.1.1 Basic Position Alignment Method I
(1) Preparations
Set the parameters on the
[Abs.Posit.Param.] screen.
#2049 type (absolute position detection type) = 2
(marked point alignment method)
#2050 absdir (basic point of Z direction) = 0/1
#2059 zerbas (select zero point parameter and basic point) =0
(position where the axis was stopped) (* 1)
The parameters other than #2049 type can also be set on [Absolute
position setting screen].
(2) Turn the power OFF and ON.
(Only when #2049 has been reset.)

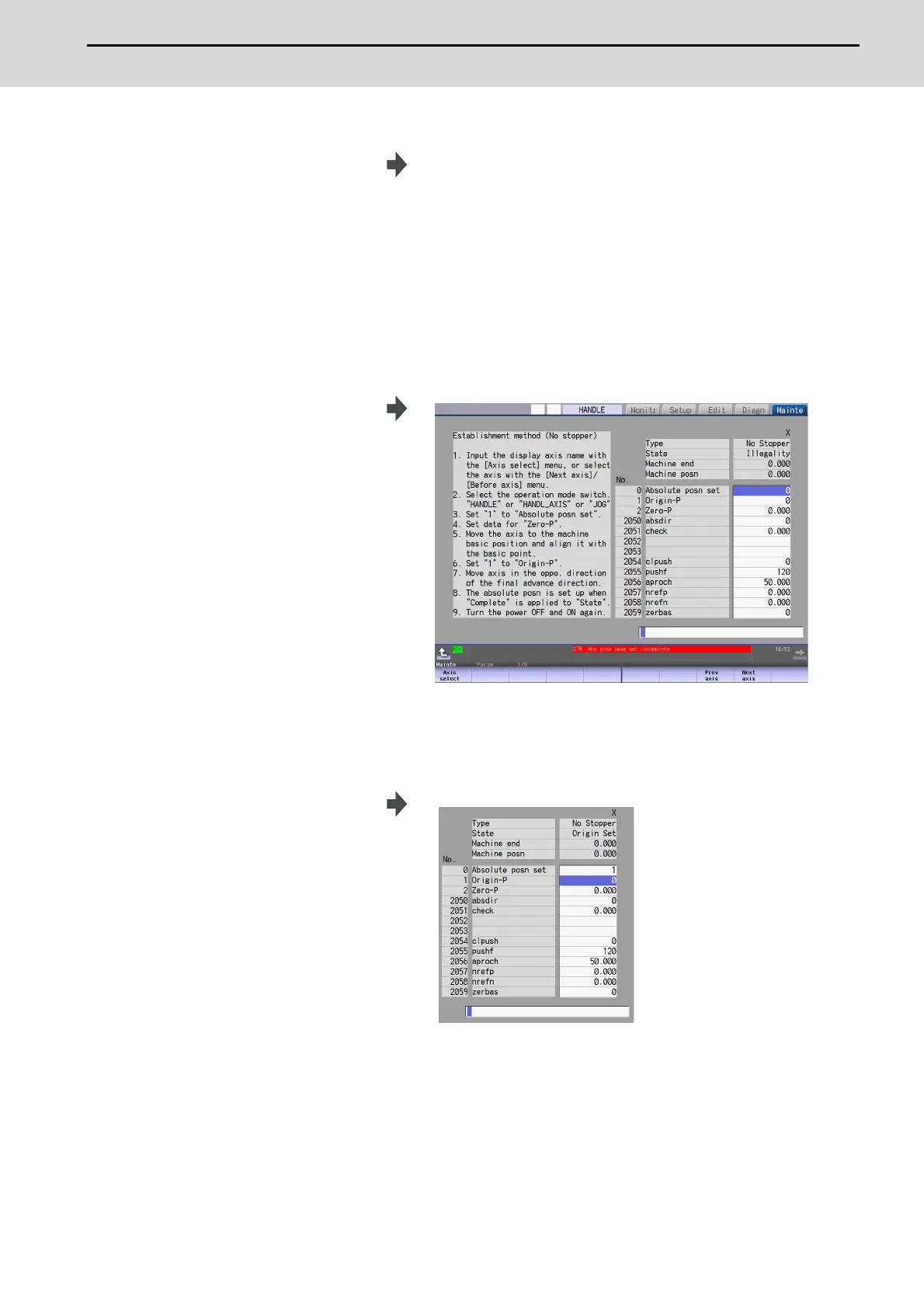

The following are the operations on [Absolute position setting screen].(Select [Mainte] - [To Abs pos])
(3) Select the axis set to type 2 on the
[Abs.Posit.Param.] screen.
Select the menu [Axis select], enter
the axis name (#1022 axname2
(display axis name)) in the input area
and then press [INPUT].
(4) Select "HANDLE", "HANDL_AXIS", or
"JOG" for the mode selection of
machine operation switch.
(5) Confirm that the cursor is placed on
"Absolute posn set", input "1" in the
input area and press the [INPUT] key.
The input value is registered in the "Absolute posn set" area.
To Next Page
