M800S/M80/E80 Series Connection and Setup Manual
5 Installation
216
IB-1501269-J
5.3.7 MITSUBISHI CNC Machine Operation Panel
Mount the MITSUBISHI CNC machine operation panel (main panel and sub panel) with the prescribed number of fixing
screws.
(Note) Refer to "General Specifications: MITSUBISHI CNC Machine Operation Panel" for the panel cut dimension
drawing and the screw hole position.

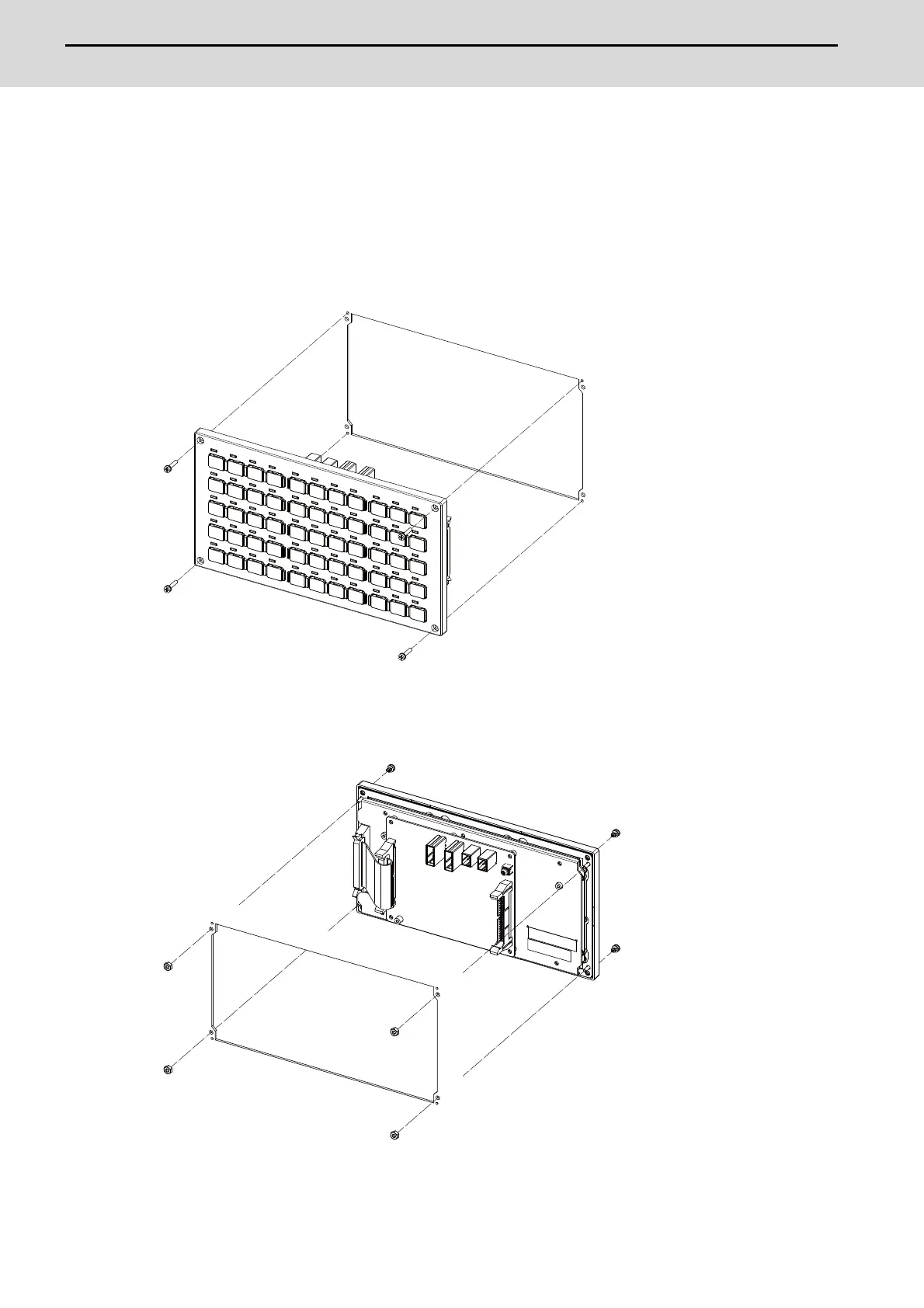

[FCU8-KB921/KB922/KB923/KB924/KB925/KB926]
- Fixed on the front side
Fixing screw: Cheese head screw M3 (4 pcs).
(Fixing screws are provided with the unit.)
- Fixed on the back side
Fixture: M3 nut (4 pcs).
(4 pcs of the screw caps (a) are provided with the unit.)
(a)
