10.3 Connecting with Frame Ground

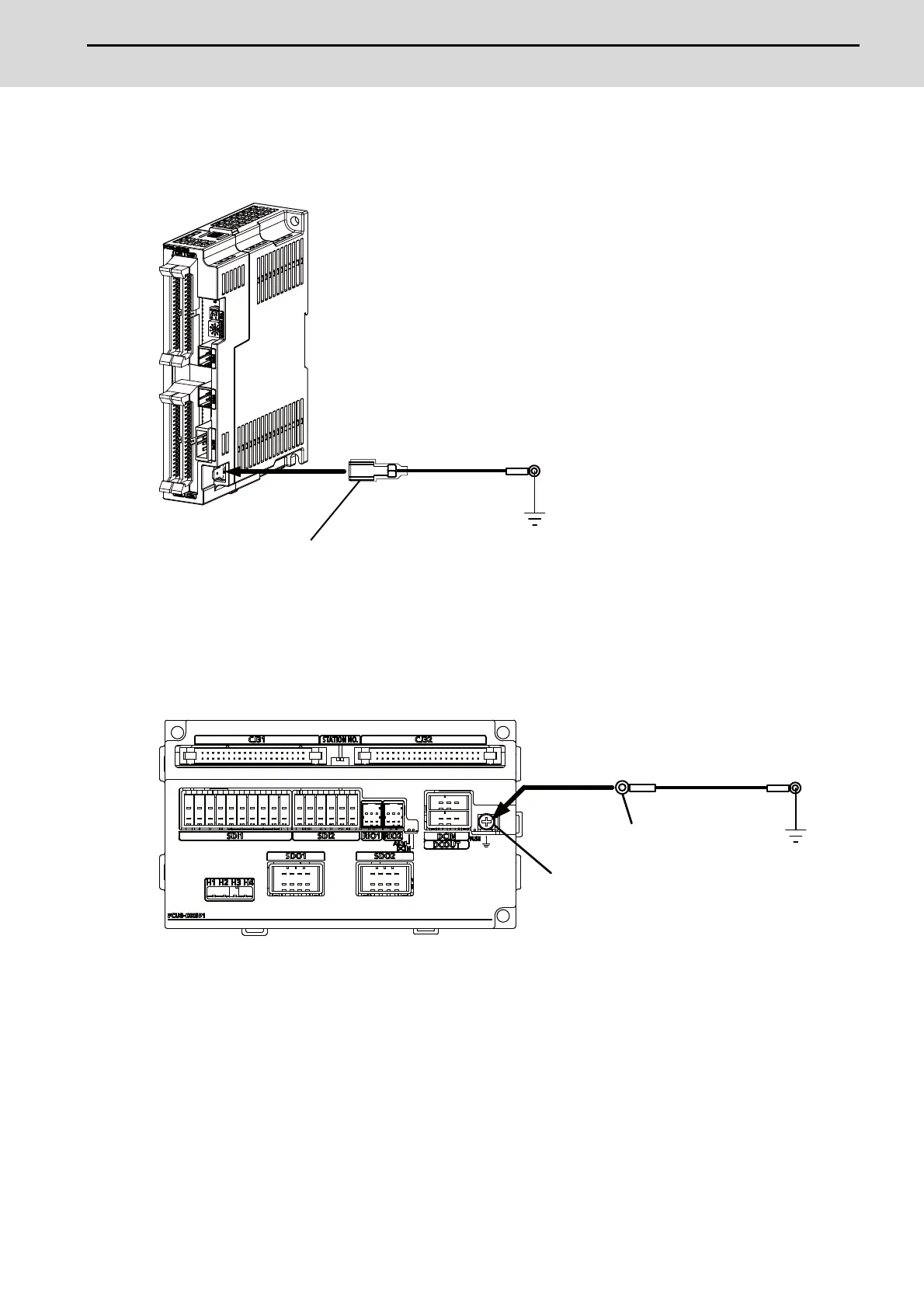

[FCU8-DX220 / FCU8-DX230 / FCU8-DX231 / FCU8-DX202 / FCU8-DX213 / FCU8-DX213-1 /

FCU8-DX654 / FCU8-DX654-1 / FCU8-DX408 / FCU8-DX409]

Flat terminal: 175021-1 / 175023-1

Protection cover: 174817-2

Recommended manufacturer : Tyco Electronics

[FCU8-DX651]

Frame ground

250 Series flat terminal

Round terminal

screw

Frame ground
