M800S/M80/E80 Series Connection and Setup Manual

7 Connection of Control Unit

230

IB-1501269-J

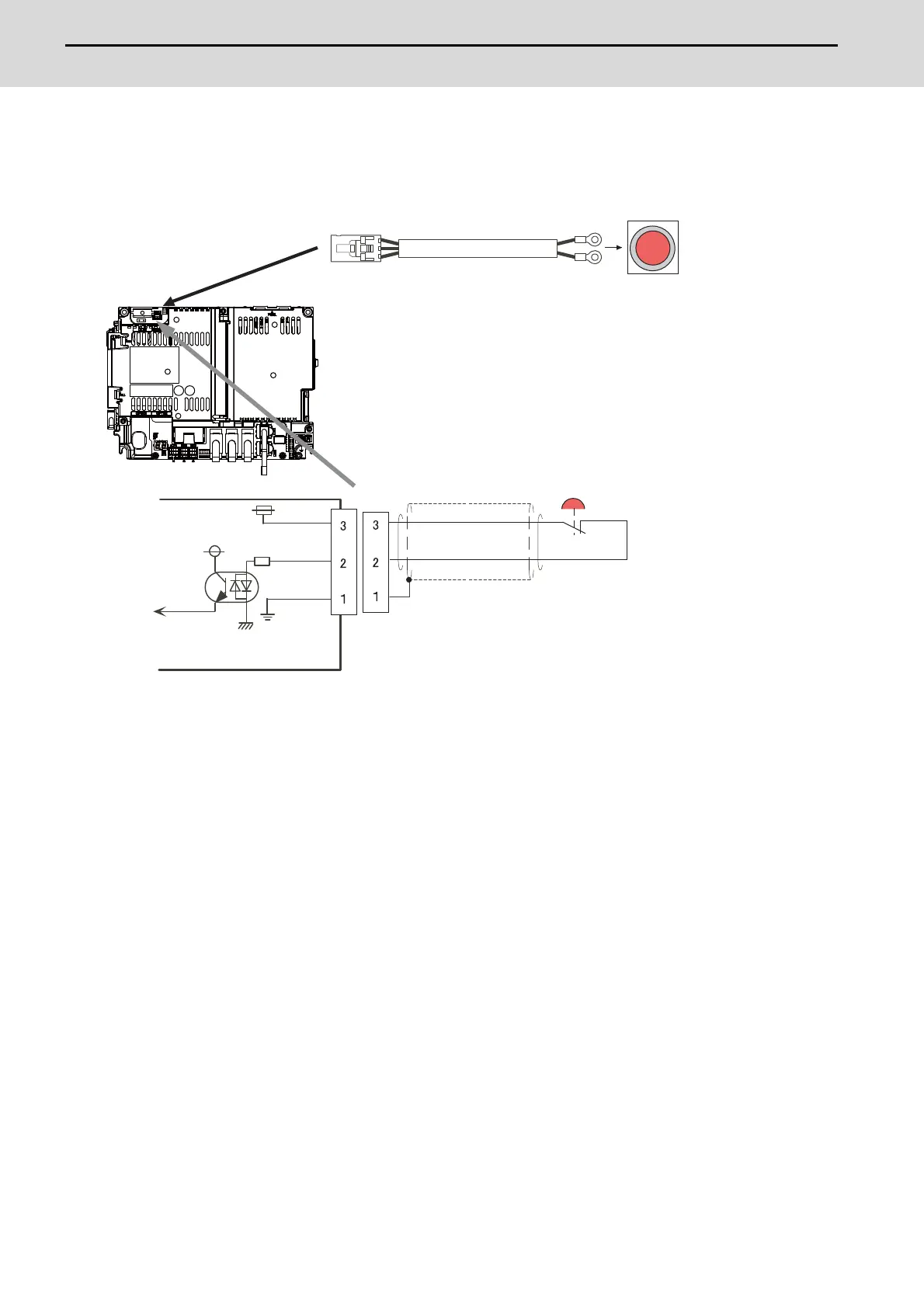

7.3 Connecting with Emergency Stop Signal

Connect the emergency stop switch to EMG connector of the control unit.

Cable drawing: "Cable: J120 Cable"

Connector pin assignment: "General Specifications: Control Unit" (EMG connector)

J120

+24V

EMGIN

EMG

Control unit

Emergency stop input circuit

Emergency

stop switch

Emergency

stop switch
