M800S/M80/E80 Series Connection and Setup Manual
15 Cable
343
IB-1501269-J
15.2 Cable Relating to NC

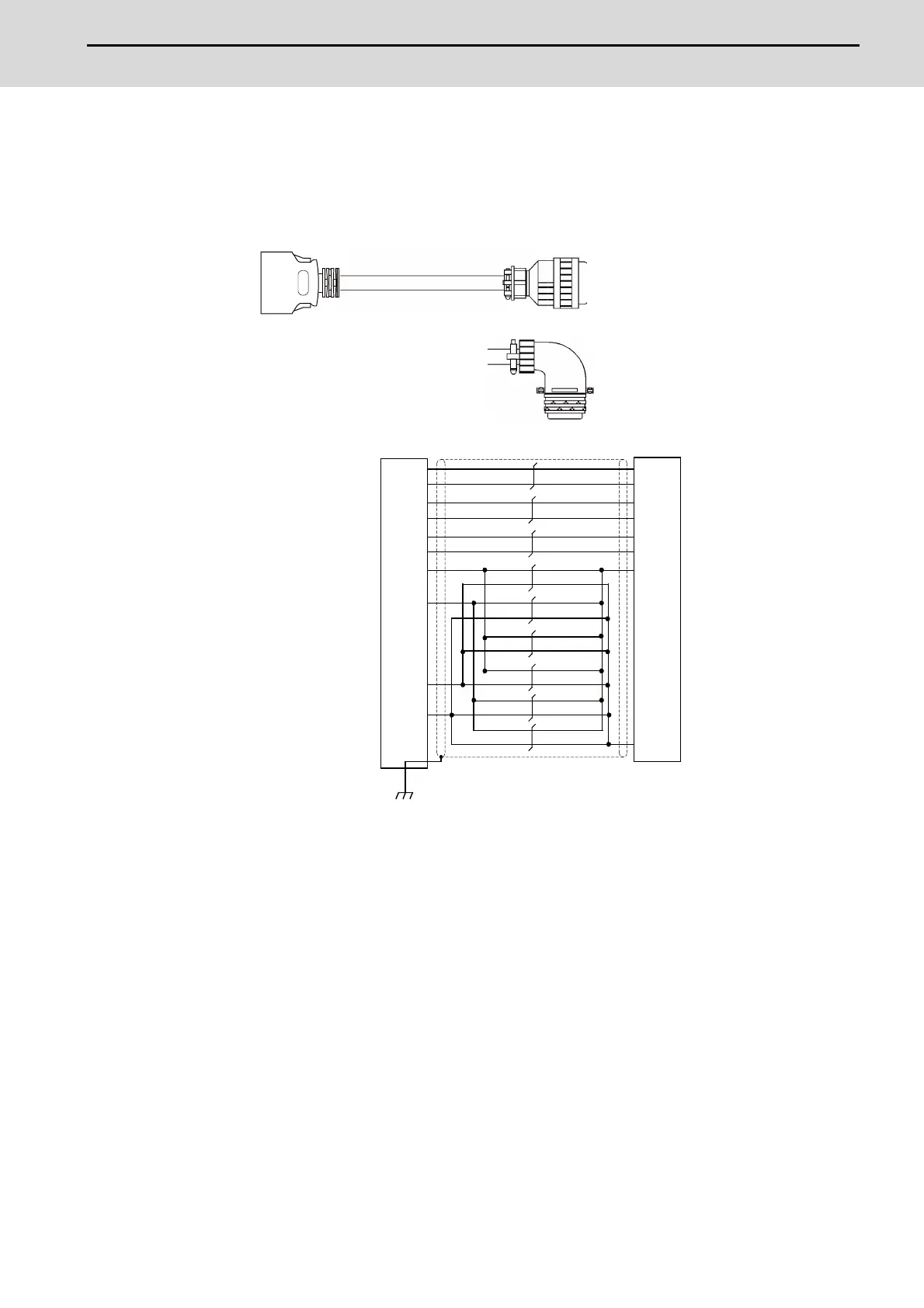

15.2.1 FCUA-R050/R054 Cable
Max. cable length: 30m
Application: Synchronous encoder - control unit
(Note) Fold the cable shield over the sheath, and wrap copper foil tape over it. Connect the wound copper foil
tape to GND plate of the connector.
[ENC1]
Plug: 10120-3000VL
Shell: 10320-52F0-008
Recommended manufacturer: 3M
Wire material: UL1061-2464
AWG24×12P
Recommended manufacturer:
Oki Electric Cable
[FCUA-R050 cable]
Connector: MS3106B20-29S
Cable clamp: MS3057-12A
Recommended manufacturer:
ITT Cannon
[FCUA-R054 cable]
Connector: MS3108B20-29S
Cable clamp: MS3057-12A
Recommended manufacturer:
ITT Cannon
ENC
FCUA-R050
FCUA-R054
ENC1A (ENC2A)
ENC1A*(ENC2A*)
ENC1B (ENC2B)
ENC1B*(ENC2B*)
ENC1Z (ENC2Z)
ENC1Z*(ENC2Z*)
0V
0V
+5V
+5V
A
N
C
R
B
P
K
ENC1
4
14
3
13
2
12
1
11
10
20
H
FG
