M800S/M80/E80 Series Connection and Setup Manual
7 Connection of Control Unit
246
IB-1501269-J

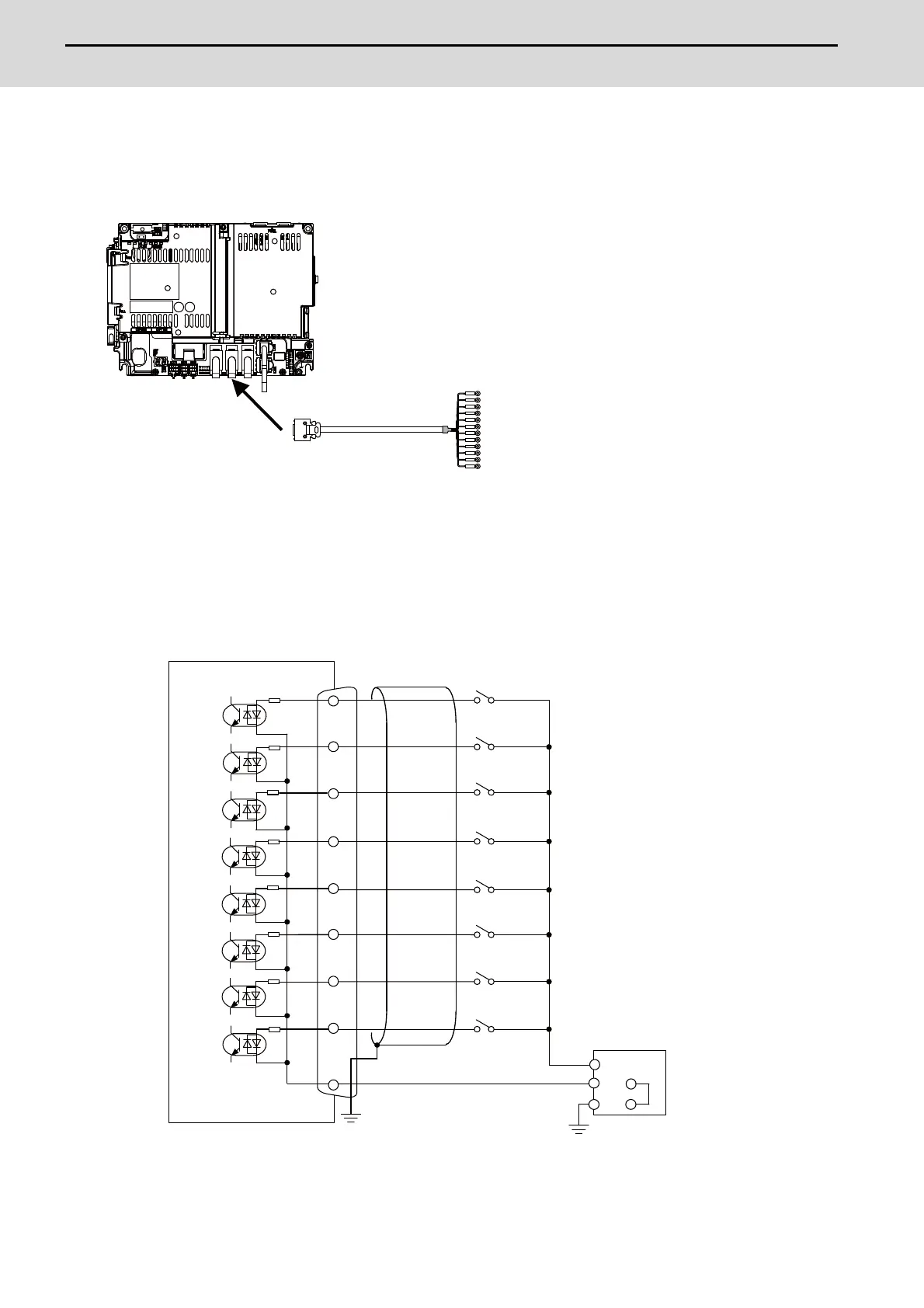

7.9 Connecting with Skip Signal (Sensor)
Connect the skip signals to SKIP connector of the control unit.
Skip signals are used for processing high-speed signals. Always shield the cable.
(Note) Connecting the skip signal cable to a wrong connector causes a damage on the control unit when turning ON
the skip signal power supply. Confirm the wiring before turning the power ON.
(1) Connection of skip signal cable
<0V connection at COM terminal>
J100
SK2
COM
SK0
COM
COM
SK6
SK7
SK5
SK4
COM
SK1
SK3
SKIP
Control unit
SKIP
SI8
SI1
SI2
SI3
SI4
SI5
SI6
SI7
FG
0V
1,5,11,15
COM
18
2
12
3
13
7
17
8
FG
2.35kΩ
J100
24VDC(+)
Stabilized
power supply
0V connection at COM terminal
Control unit
To Next Page
