Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
112
IB-1501269-J
4.12.2 FCU8-DX220 / FCU8-DX230 / FCU8-DX231 / FCU8-DX202 / FCU8-DX213 /
FCU8-DX213-1 / FCU8-DX654 / FCU8-DX654-1 / FCU8-DX651/ FCU8-DX408 / FCU8-DX409

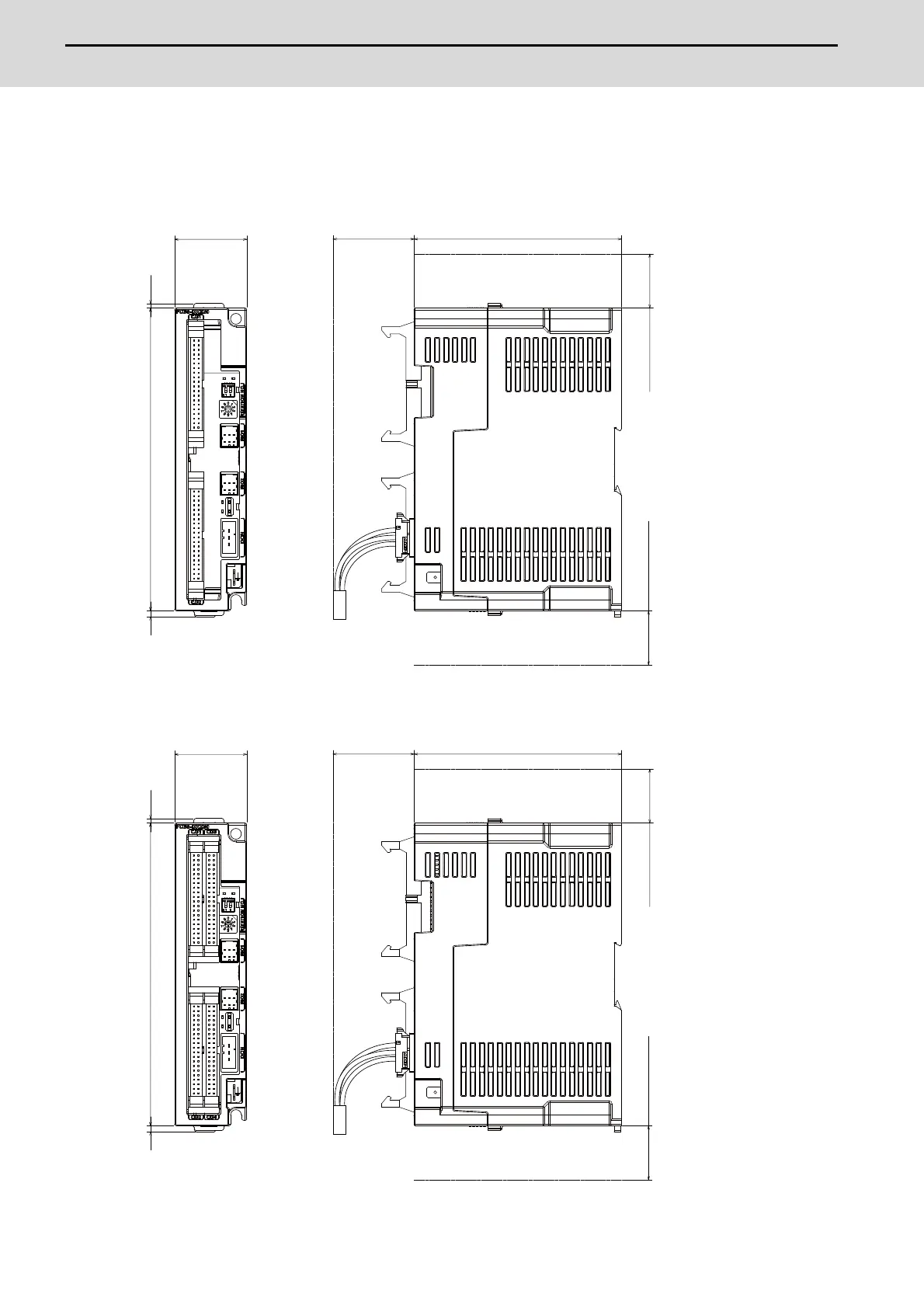

[Outline dimension : FCU8-DX220]
[Outline dimension : FCU8-DX230]
(Space required above the unit)(Space required below the unit)
(Space
required for
wiring)
40
168 2.5
45 115
4
[mm]
30 30
(Space required above the unit)(Space required below the unit)
(Space
required for
wiring)
40
168 2.5
45 115
4
[mm]
30 30
