Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
15 Cable
372
IB-1501269-J
15.3.15 SH21 Cable
Max. cable length: 30m
Application: Power supply communication cable
Power backup unit communication cable
(Note 1) Fold the cable shield over the sheath, and wrap copper foil tape over it. Connect the wound copper foil
tape to GND plate of the connector.
(Note 2) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws too tightly
otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
[CN4,CN9]
Plug: 10120-3000PE
Shell: 10320-52F0-008
Recommended manufacturer: 3M
Wire material: UL20276 AWG28×10P
Recommended manufacturer:
Toyokuni Electric Cable
Plug: 10120-3000PE
Shell: 10320-52F0-008
Recommended manufacturer: 3M

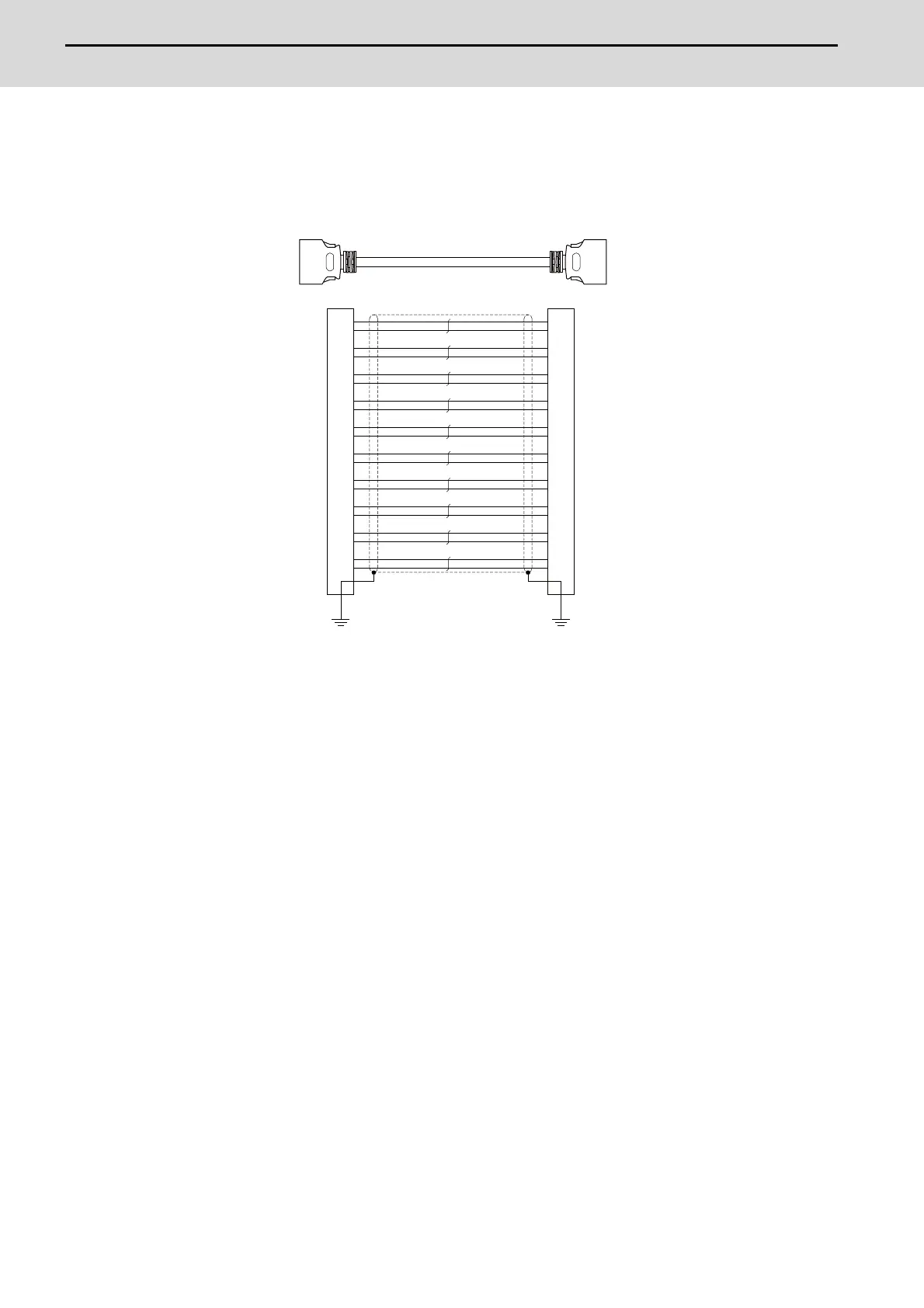

CN4, CN9
1
11
2
12
3
13
4
14
5
15
6
16
7
17
8
18
9
19
10
20
1
11
2
12
3
13
4
14
5
15
6
16
7
17
8
18
9
19
10
20
0V
0V
SVTXD
SVTXD*
SVALM
SVALM*
SVRXD
SVRXD4
0V
0V
SVEMG
SVEMG*
+5V
0V
0V
SVTXD
SVTXD*
SVALM
SVALM*
SVRXD
SVRXD4
0V
0V
SVEMG
SVEMG*
+5V
FG FG
