M800S/M80/E80 Series Connection and Setup Manual
7 Connection of Control Unit
249
IB-1501269-J
7.10.1 Handle Numbers
There are two types of the handle numbers assignment: automatic assignment and arbitrary assignment.
[Automatic assignment]
Set all the parameters from "#1395 H1_pno (1st handle selection)" to "#1397 H3_pno (3rd handle selection)" to
"0000".

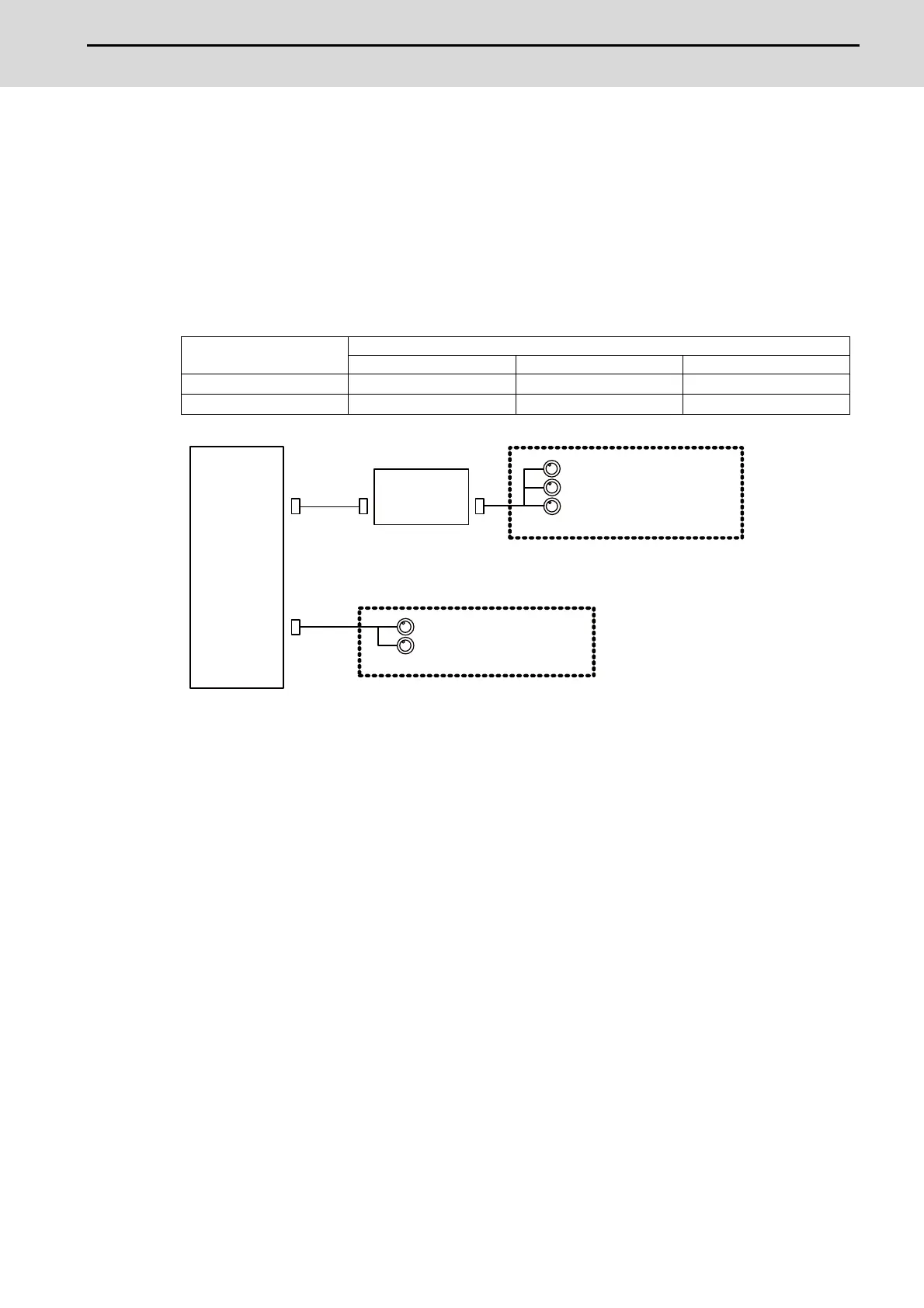

An example is shown below.
"ENC": Connector on control unit (two channels), "MPG": Connector on operation panel I/O unit (Up to three
channels)
[Arbitrary assignment]
Assign the handle I/F arbitrary according to the setting values of the parameters "#1395 H1_pno (1st handle
selection)" to "#1397 H3_pno (3rd handle selection)".
Operation panel I/O unit
Handle assignment
1st handle 2nd handle 3rd handle
Used Group (a) ch1 Group (a) ch2 Group (a) ch3
Not used Group (c) ch1 Group (c) ch2
CJ71
ENC
CJ71
MPG
(5V/12V)
(5V)
Manual Pulse Generator (ch1)
Manual Pulse Generator (ch2)
Manual Pulse Generator (ch3)
Operation panel I/O unit
Control unit
Manual Pulse Generator (ch1)
Manual Pulse Generator (ch2)
[ Group (a) ]
[ Group (b) ]
To Next Page
