M800S/M80/E80 Series Connection and Setup Manual
7 Connection of Control Unit
255
IB-1501269-J
7.12.2 Connecting I/O Device via PROFIBUS-DP
The expansion unit FCU8-EX563 functions as a master station of PROFIBUS-DP. Use the PROFIBUS dedicated
communication cable for connection to PROFIBUS-DP.
Make sure to attach the terminator to the final station unit of the network. There is a slide switch on the PROFIBUS
communication cable for setting the terminator. Turning "ON" the slide switch means attaching the terminator. Make sure
to turn "ON" the slide switch for the last station, and to turn "OFF" for other stations.
To use the expansion unit as a master station of PROFIBUS-DP, set the parameter with the configuration software (a
tool for parameter setting). When setting the parameter, you need to use the cable G295 to connect the PROFIBUS-DP
unit to the configuration software- installed personal computer (PC/AT compatible machine).
(Note) The communication parameters, etc. at the time of setup are required to be backed up for maintenance.
(Note 1) Use the rotary switch of PROFIBUS-DP unit with the initial value "0".
(Note 2) The performance is not guaranteed unless the PROFIBUS dedicated cable is used. For the specifications of
the PROFIBUS dedicated cable or for contact information for any inquiries, see the homepage of PROFIBUS
& PROFINET International (PI) (http://www.profibus.com/).
Contact information for inquiries related to the configuration software is as follows.
Hilscher Gesellschaft fur Systemautomation mbH
Rheinstrasse 78
D-65795 Hattersheim Germany
TEL: +49-6190-9907-0 FAX: +49-6190-9907-50
Contact in Japan: Euro-Far East Co., Ltd
Lilas Nogisaka Bldg. #901
Minami Aoyama 1-15-18
Minato-ku, Tokyo
107-0061 JAPAN
TEL: 03-3470-8769 FAX: 03-3478-8648

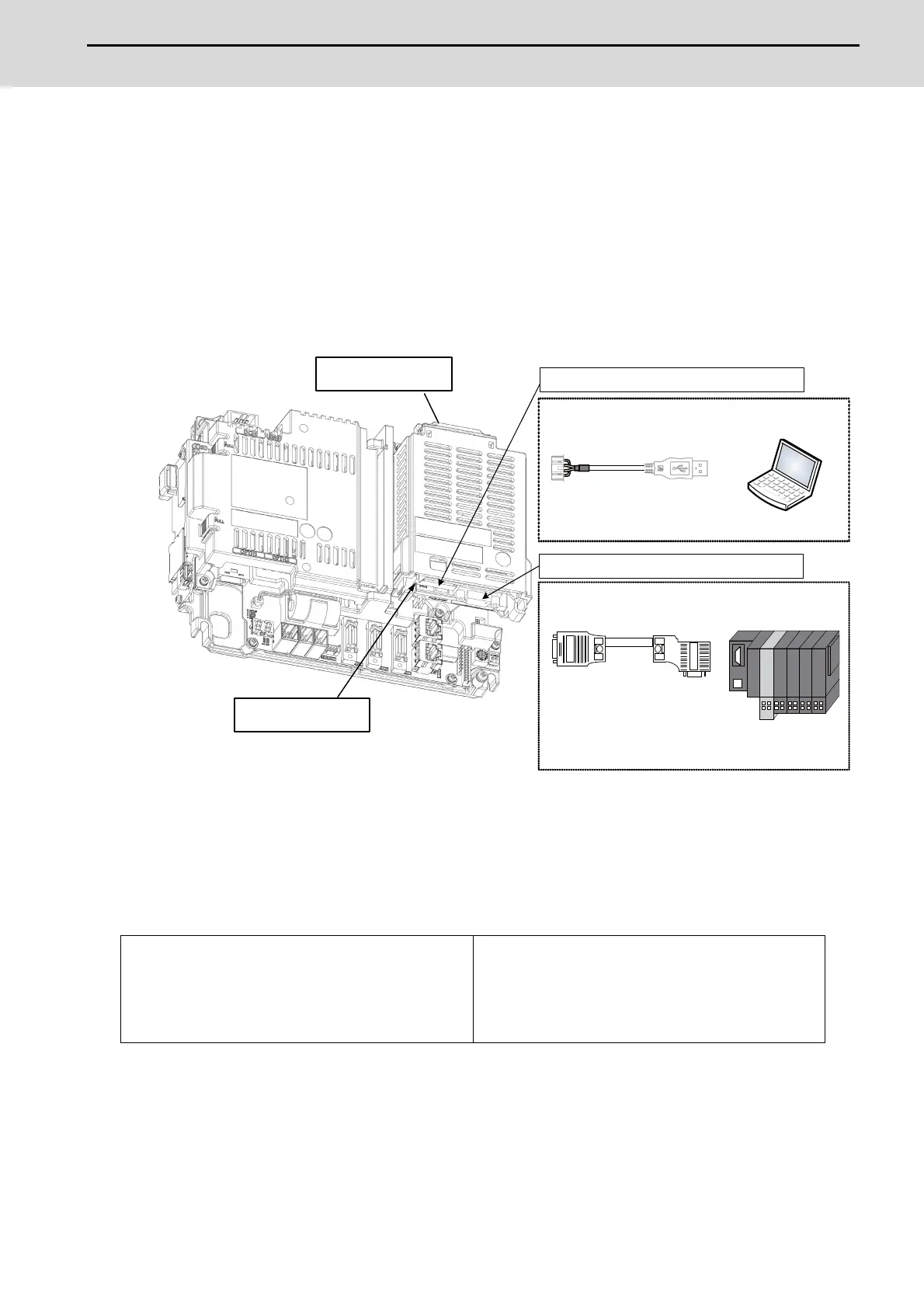

(FCU8-EX563)
(FCU8-EX70x)
provided by MTB
PROFIBUS-DP
slave unit
PROFIBUS
cable
Personal computer
(PC/AT compatibles)
provided by MTB
Connector for configuration
G295 cable
Connector for PROFIBUS-DP communication
(Note 1)
(Note 2)
PROFIBUS-DP unit
Option Relay Unit
To Next Page
