M800S/M80/E80 Series Connection and Setup Manual
7 Connection of Control Unit
250
IB-1501269-J

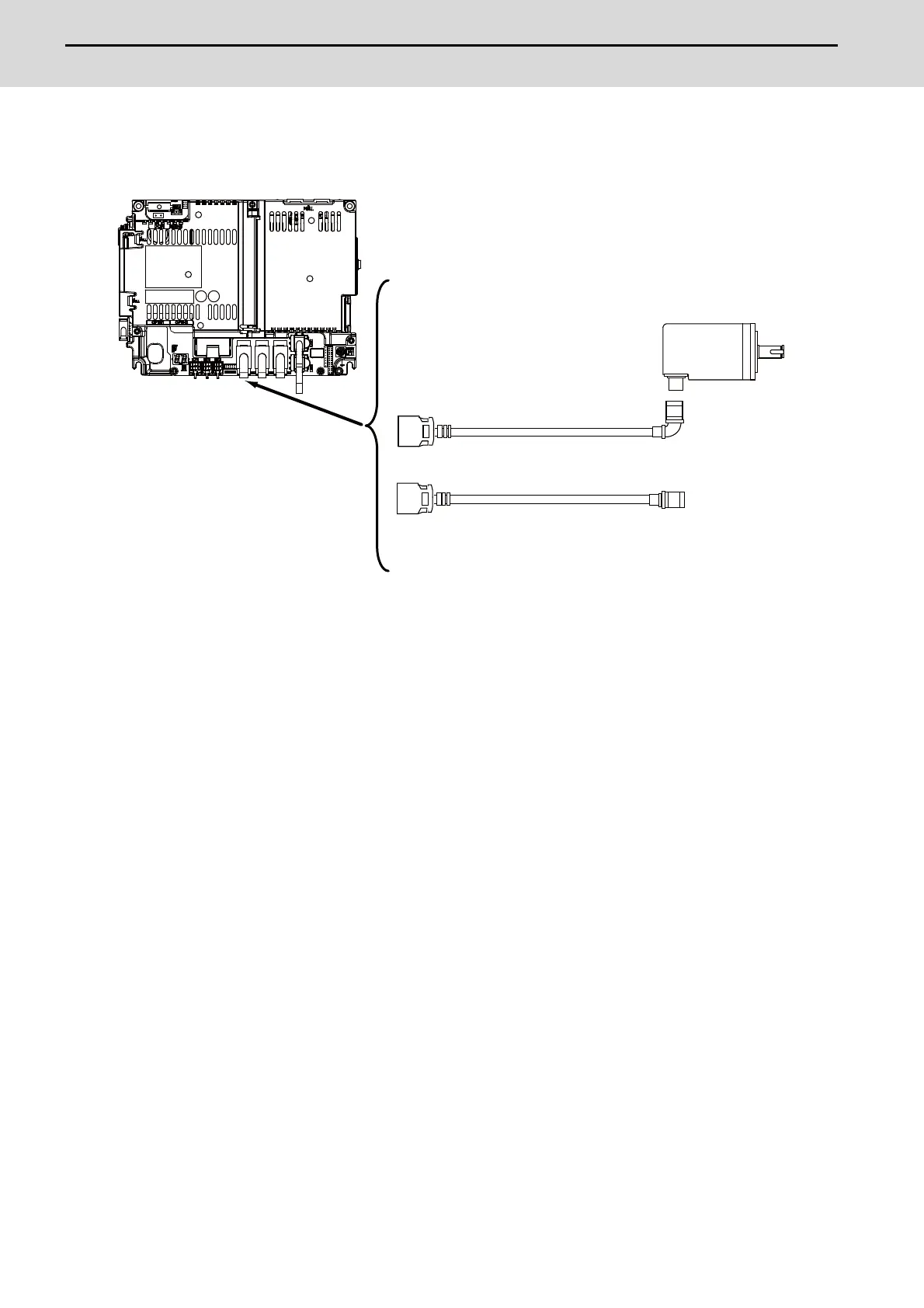

7.11 Connecting with Synchronous Feed Encoder
Connect the synchronous feed encode (1ch) to ENC connector of the control unit.
<Related items>
Cable drawing: "Cable: FCUA-R050/R054 Cable"
Connector pin assignment: "General Specifications: Control Unit" (ENC connector)
When using the synchronous feed encoder and the manual pulse generator at the same time, the cables must be
prepared by the machine tool builder.
OSE1024-3-15-68
ENC
R050 cable
R054 cable
Synchronous feed encoder
<Right angle>
<Straight>
