M800S/M80/E80 Series Connection and Setup Manual
13 Connection of MITSUBISHI CNC Machine Operation Panel
330
IB-1501269-J

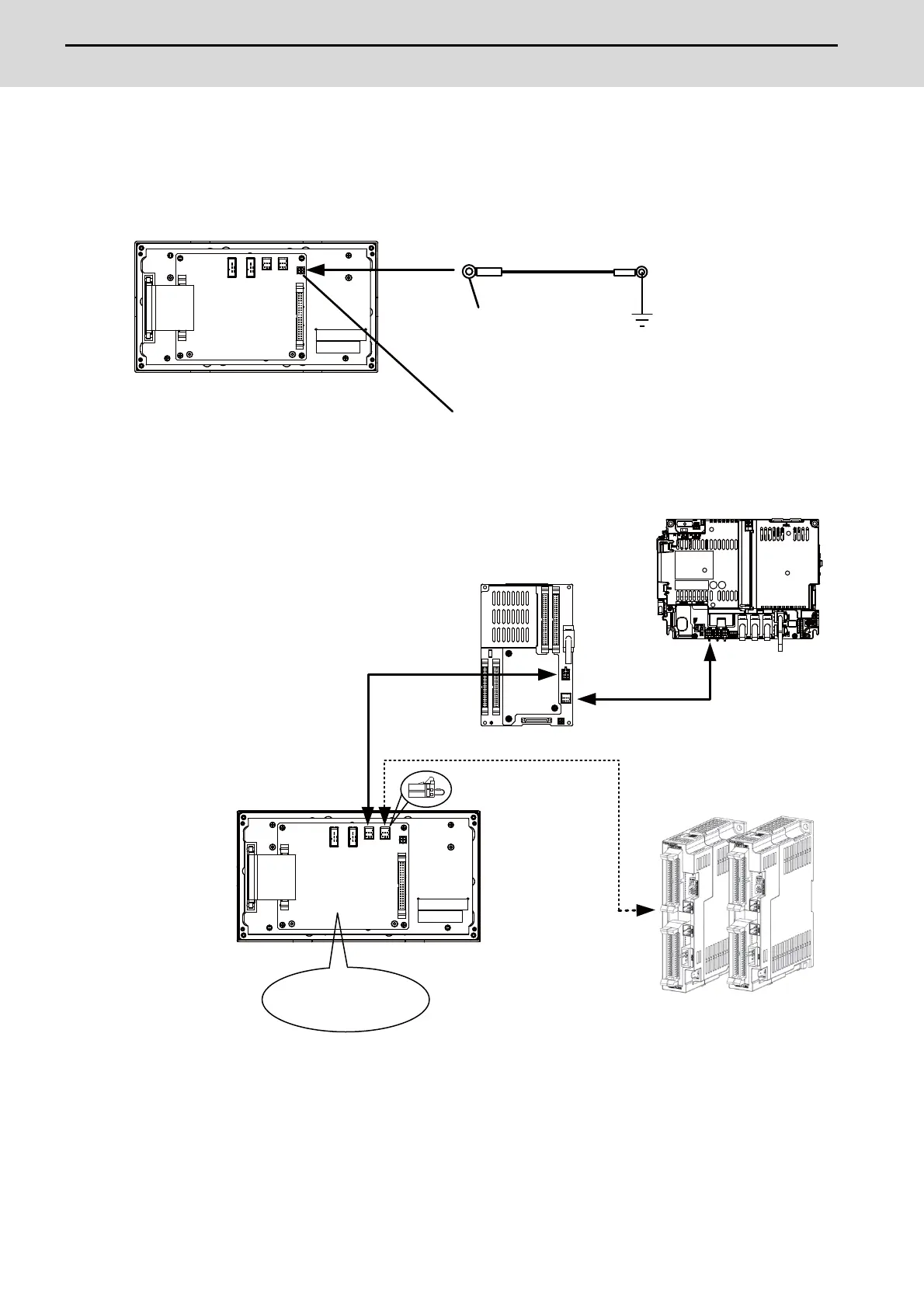

13.3 Connecting with Frame Ground
Connect 24VDC power supply (general-purpose stabilized power supply) to the main panel of the machine operation
panel.
[FCU8-KB921/KB922/KB923/KB924/KB925/KB926]
13.4 Connecting with Operation Panel I/O Unit
When the remote I/O unit on the next stage is not relayed, connect the R2-TM terminal.
<Related items>
Cable drawing: "Cable: J010 Cable", "Cable: J210 Cable"
Connector pin assignment: "General Specifications: MITSUBISHI CNC Machine Operation Panel: Main Panel A,B"
(RIOIN/RIOOUT connector)
FG
M4
Round terminal
screw
Frame ground
J010
CJ71
CJ71
RIO3EXT
RIOIN
J210
J210
RIOOUT
A
B
AMP
D-2
[FCU8-KB921/KB922/KB923/KB924
/KB925/KB926]
RIO occupied stations:
20 to 22 (3 stations)
Operation panel I/O unit
Control unit
Remote I/O unit
Remote I/O unit 3ch
Remote I/O unit 3ch
To Next Page
