M800S/M80/E80 Series Connection and Setup Manual

13 Connection of MITSUBISHI CNC Machine Operation Panel

328

IB-1501269-J

This chapter briefly explains how to connect the MITSUBISHI CNC machine operation panel to each unit and device.

(Note) In this chapter "MITSUBISHI CNC Machine operation panel" is shorten to Machine operation panel.

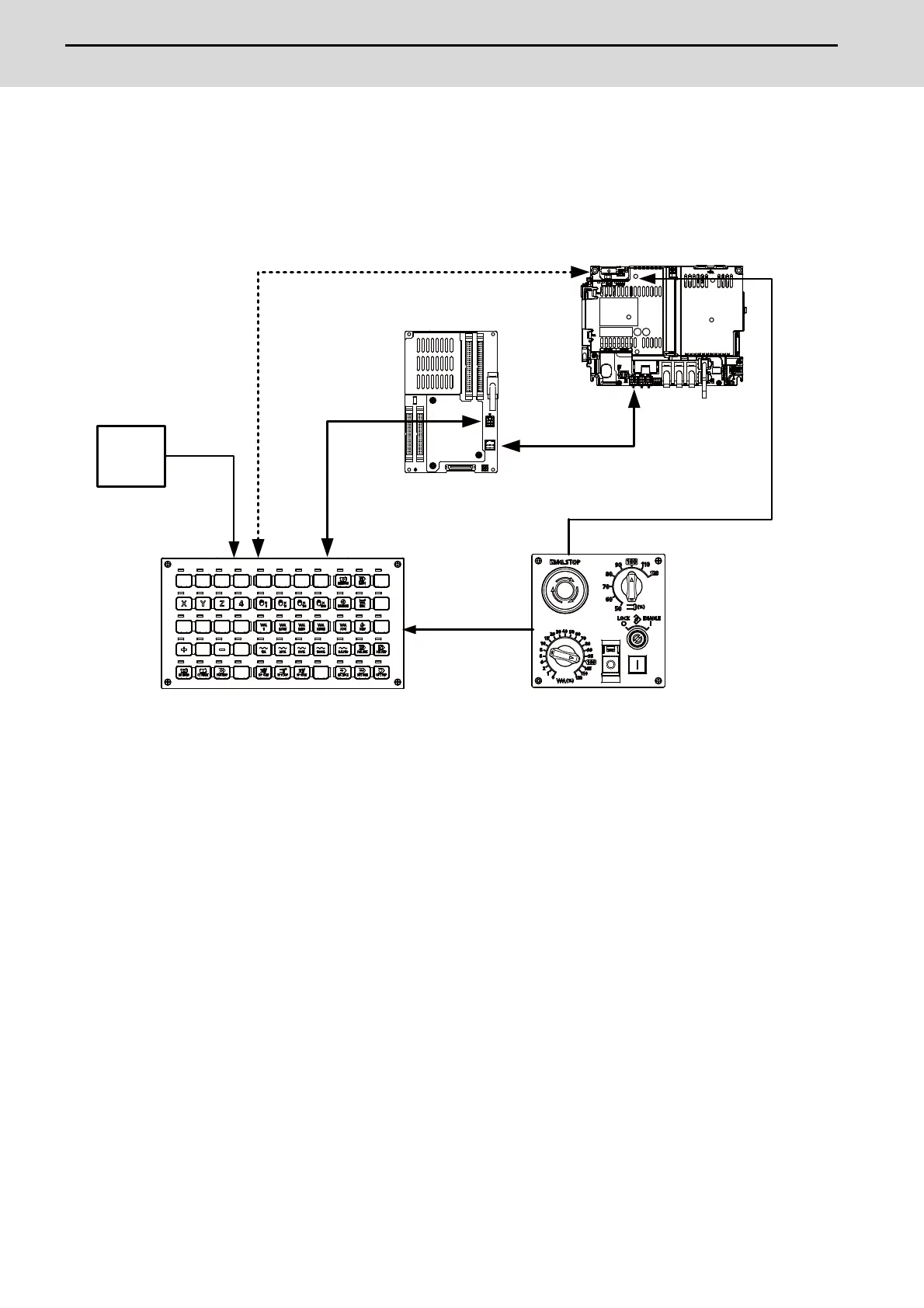

13.1 Machine Operation Panel Connection System Drawing

SUBP

J010

CJ71

RIO3EXT

RIOIN

J210

DCIN

J070/071

DCIN

J121

DCOUT

EMG

G460

24VDC(+)

Stabilized power supply

G071 (Only when relaying the power)

Operation panel I/O unit

Control unit

Machine operation panel (main panel) Machine operation panel (sub panel)

Emergency

stop switch
