M800S/M80/E80 Series Connection and Setup Manual
15 Cable
349
IB-1501269-J

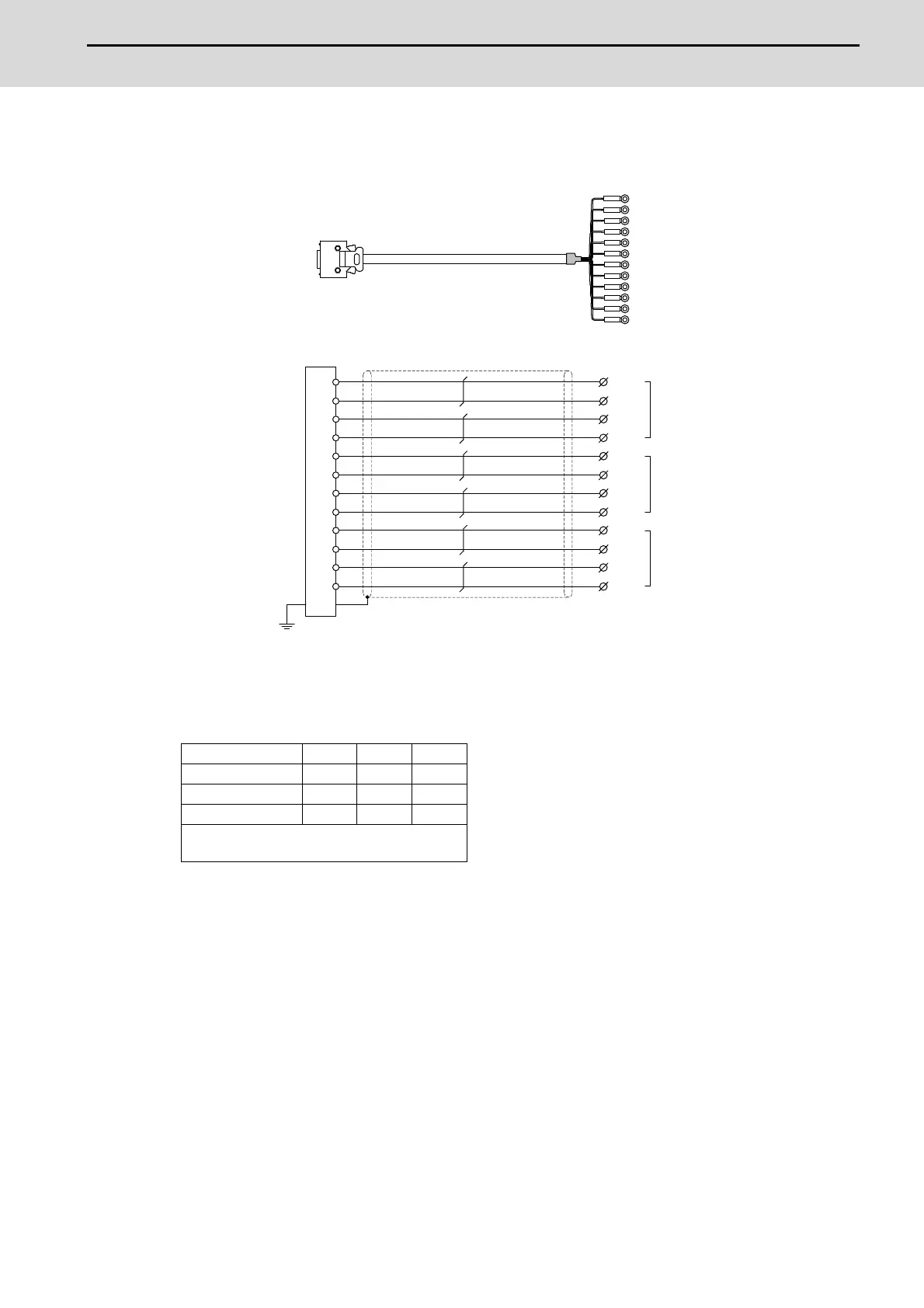

15.2.9 J023/J024/J025 Cable
Max. cable length: 20m
Application: Manual Pulse Generator cable (5V)
(Note 1) Fold the cable shield over the sheath, and wrap copper foil tape over it. Connect the wound copper foil
tape to GND plate of the connector.
(Note 2) The cables for 1ch and 2ch are compatible with F023 or F024 cable of the conventional model.
(Note 3) When using the jackscrew M2.6-type 10320-52A0-008 for the shell, do not fasten the screws too tightly
otherwise the connector and the PCB may be damaged.
(Manufacturer recommended tightening torque: 0.20±0.05Nꞏm)
[MPG]
Connector : 10120-3000PE
Case : 10320-52F0-008
Recommended manufacturer : 3M
Wire material :
UL2464 U-TKVVBS AWG22 × 6P
Recommended manufacturer :
Tachii Electric Wire
[1ch][2ch][3ch]
Crimp terminal : V1.25-3 × 12
Recommended manufacturer : JST
Cable name 1ch 2ch 3ch
J023 cable
○
J024 cable
○○
J025 cable
○○○
○ : Usable channel
Unconnectable to control unit side
㻴㻭㻞
㻴㻭㻝
㻡㼂㻝
㻡㼂㻞
㻜㼂㻞
㻡㼂㻟
㻜㼂㻟
㻴㻮㻟
㻴㻭㻟
㻴㻮㻝
㻜㼂㻝
㻴㻮㻞
MPG
MPG
HA1A
HA1B
+5V
0V
HA2A
HA2B
+5V
0V
HA3A
HA3B
+5V
0V
4
14
10
1
3
13
20
11
2
12
19
15
FG
HA1
HB1
5V1
0V1
HA2
HB2
5V2
0V2
HA3
HB3
5V3
0V3
1ch
2ch
3ch
