M800S/M80/E80 Series Connection and Setup Manual
17 Setting the Hardware
382
IB-1501269-J

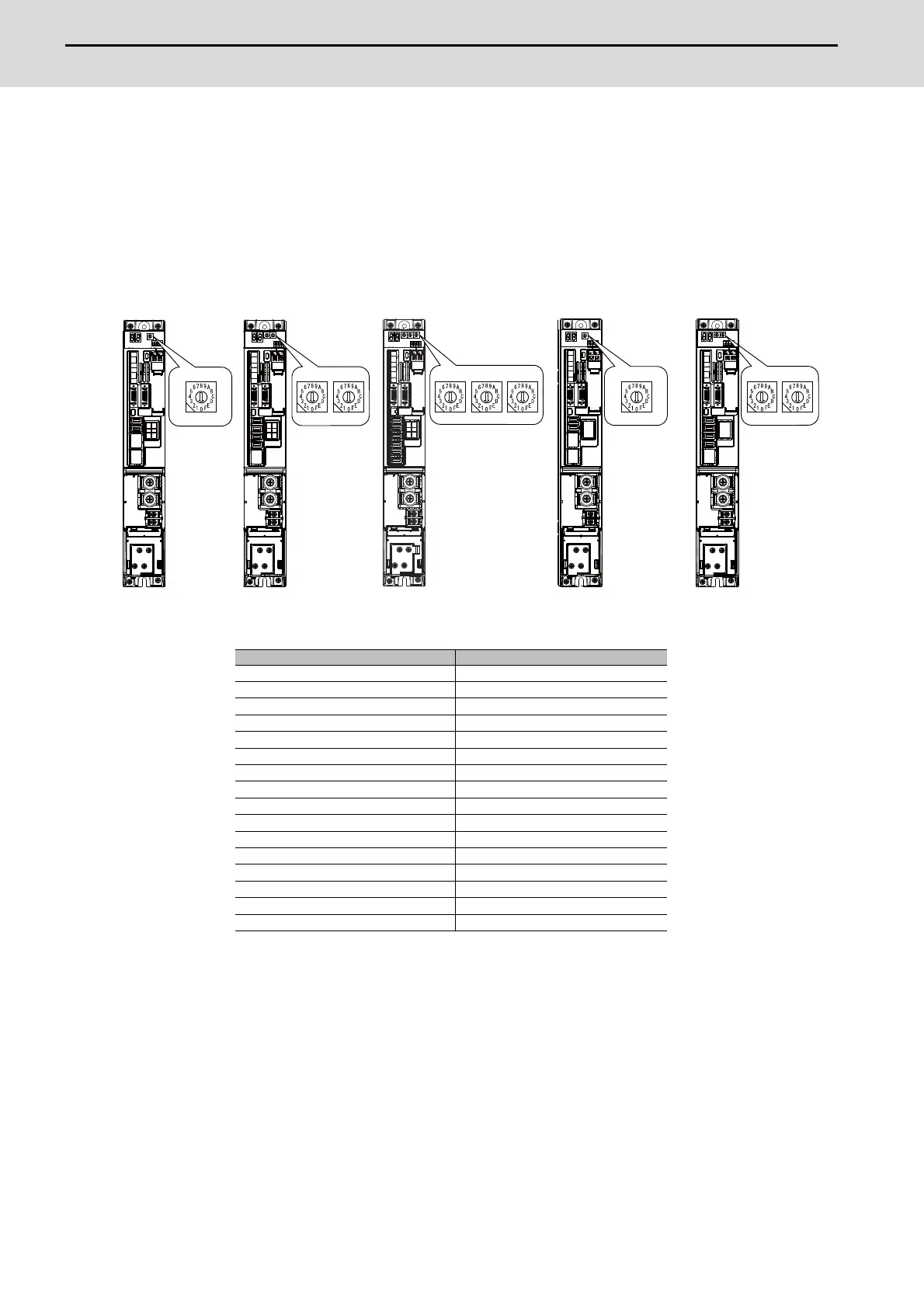

17.1 Setting Drive Unit MDS-E/EH Series
17.1.1 Setting the Rotary Switch
Set the axis number with the rotary switch.
<Drive unit>
MDS-E/EH-V1/V2/SP, MDS-E/EH-V3/SP2 setting
Rotary switch setting AXIS NO.
0 1st axis
1 2nd axis
2 3rd axis
3 4th axis
4 5th axis
5 6th axis
6 7th axis
7 8th axis
8 9th axis
9 10th axis
A 11th axis
B 12th axis
C 13th axis
D 14th axis
E 15th axis
F 16th axis
L axis M axis
1-axis
spindle drive unit
(MDS-E/EH-SP)
2-axis
spindle drive unit
(MDS-E-SP2)
1-axis
servo drive unit
(MDS-E/EH-V1)
2-axis
servo drive unit
(MDS-E/EH-V2)
L axis M axis S axis
3-axis
servo drive unit
(MDS-E/EH-V3)
