M800S/M80/E80 Series Connection and Setup Manual
15 Cable
369
IB-1501269-J
15.3.10 J396 Cable
Max. cable length: 10m
Application: Optical communication cable
for wiring between drive units (inside panel)
Use when wiring in the panel with a cable of 10m or less.
(Note 1) Binding the cables too tight with tie-wraps could result in an increased loss or a disconnection. Use a
cushioning material such as a sponge or rubber when bundling the cables and fix so that the cables do not
move. Recommended clamp material: CKN-13SP KITAGAWA INDUSTRIES.
(Note 2) Never bundle the cables with vinyl tape. The plasticizing material in the vinyl tape could cause the POF cable
to break.
(Note 3) Loop the excessive cable with twice or more than the minimum bending radius.

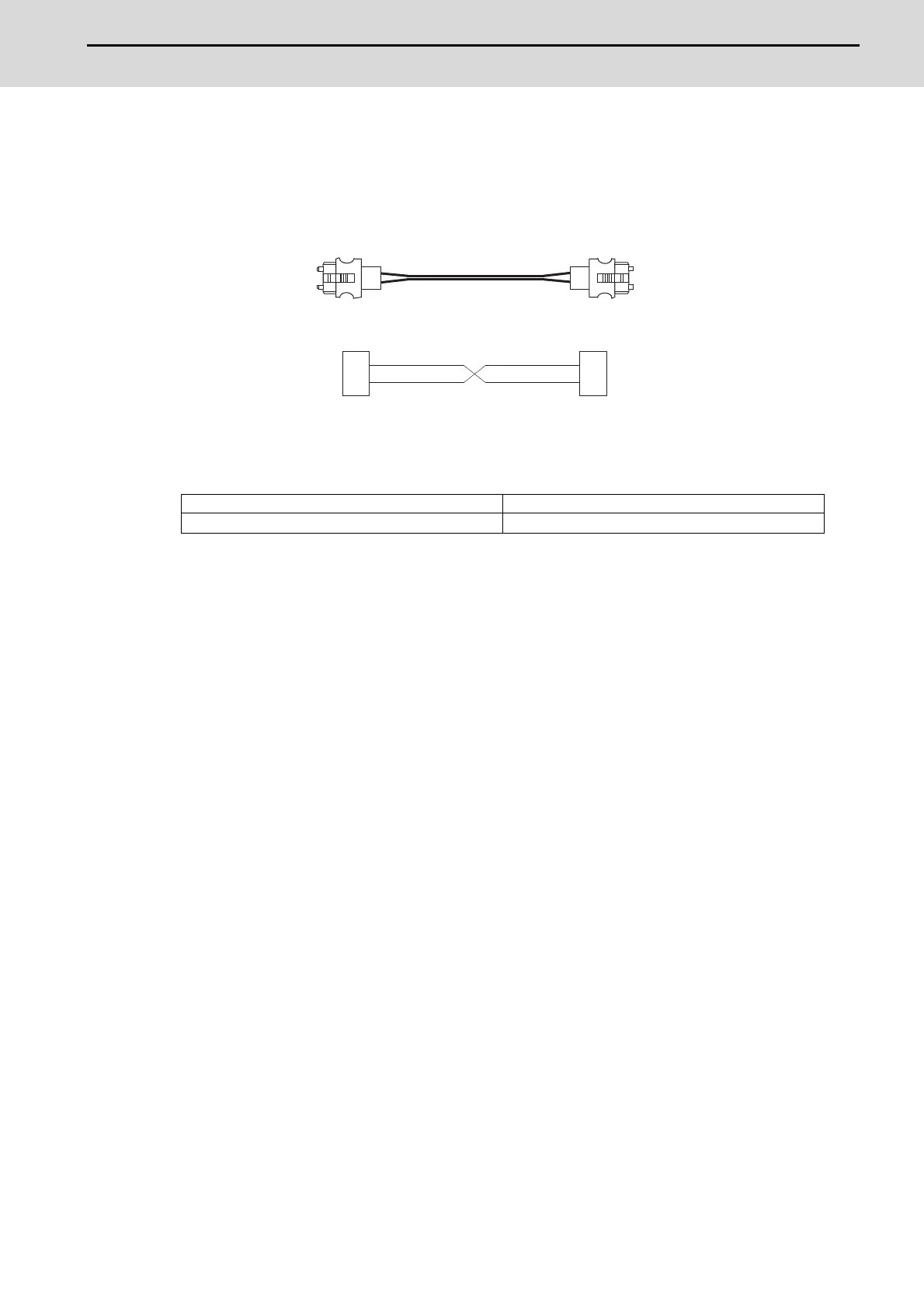

[OPT]
Connector : LGP-Z0007PK
Recommended manufacturer :
HONDA TSUSHIN KOGYO
Wire material : PFDU-CD1002-18E22T
Recommended manufacturer : TORAY
Cable Minimum bending radius: R
2-core parallel cord 30mm
OPT OPT
To Next Page
