M800S/M80/E80 Series Connection and Setup Manual
20 Sequence Program Writing
426
IB-1501269-J
Sequence program writing is executed by connecting a personal computer, in which GX Developer or GX Works2 has
been installed, to the control unit.
Refer to the "PLC Development Manual" for details.
20.1 Writing Sequence Program using the SD Card
Save the sequence program in an SD card and write the data to NC using the external file operations on PLC onboard.
20.2 Setting the Ethernet Communication
20.2.1 Confirming the IP Address for CNC
Confirm the IP address set for the CNC. IP address is set to the following parameter.
The case of when the initial value "192.168.200.1" after SRAM clear has been set is explained as an example in this
chapter.
20.2.2 Setting the IP Address for PC Side
For the personal computer for which GX Developer or GX Works2 is available, IP address has to be set within the same
subnet mask as CNC unit.
(1) Select [Start] - [Control Panel] - [Network and Internet] - [Network and Sharing Center] from task bar.

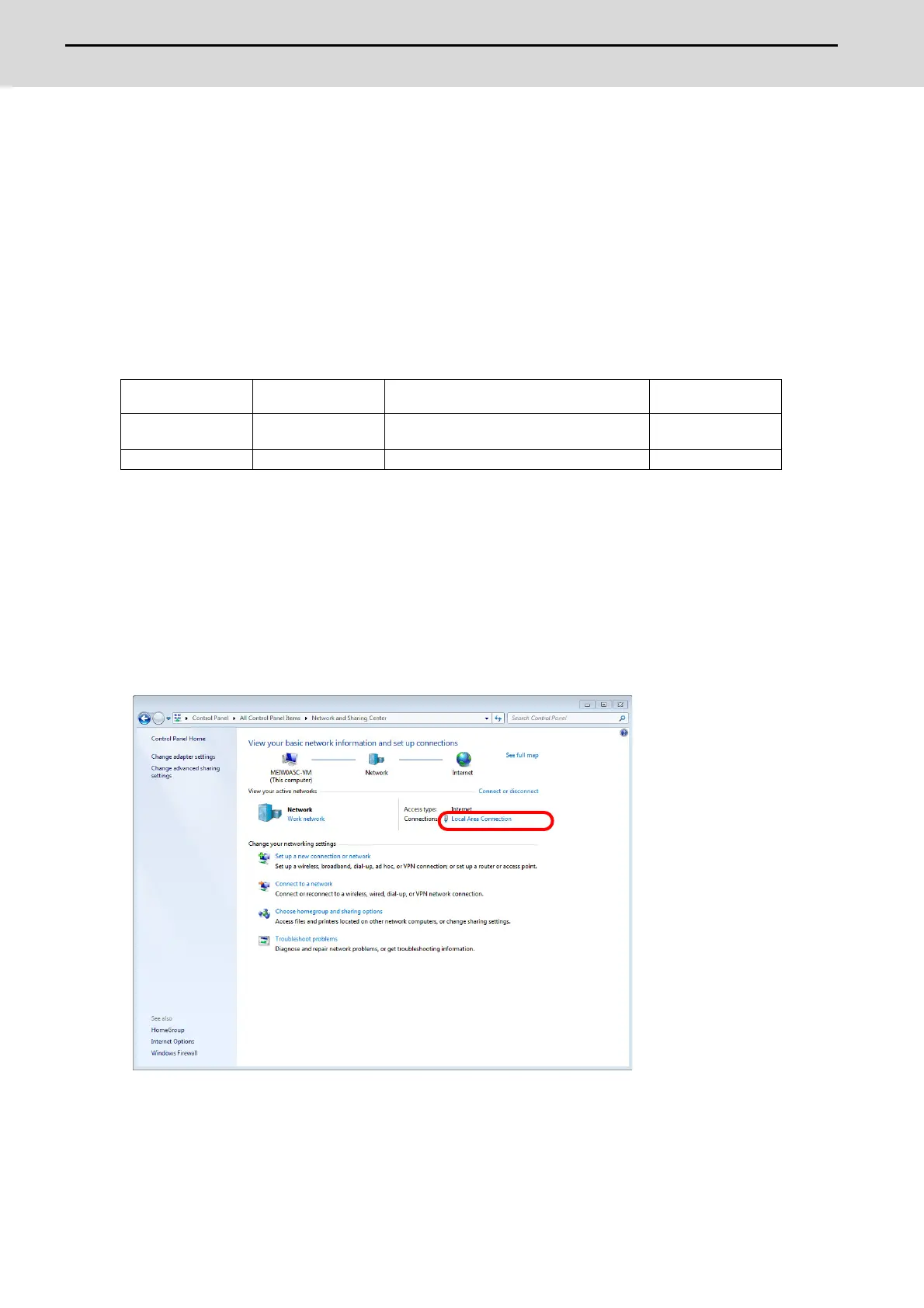

(2) "Network and Sharing Center" is displayed. Click [Local Area Connection].
Basic common
parameter
Item Content Setting example
#1926 Global IP address
IP address for CNC seen from an external
source
192.168.200.1
#1927 Global Subnet mask Subnet mask of #1926 255.255.255.0
To Next Page
