M800S/M80/E80 Series Connection and Setup Manual

5 Installation

215

IB-1501269-J

[FCU8-EX703]

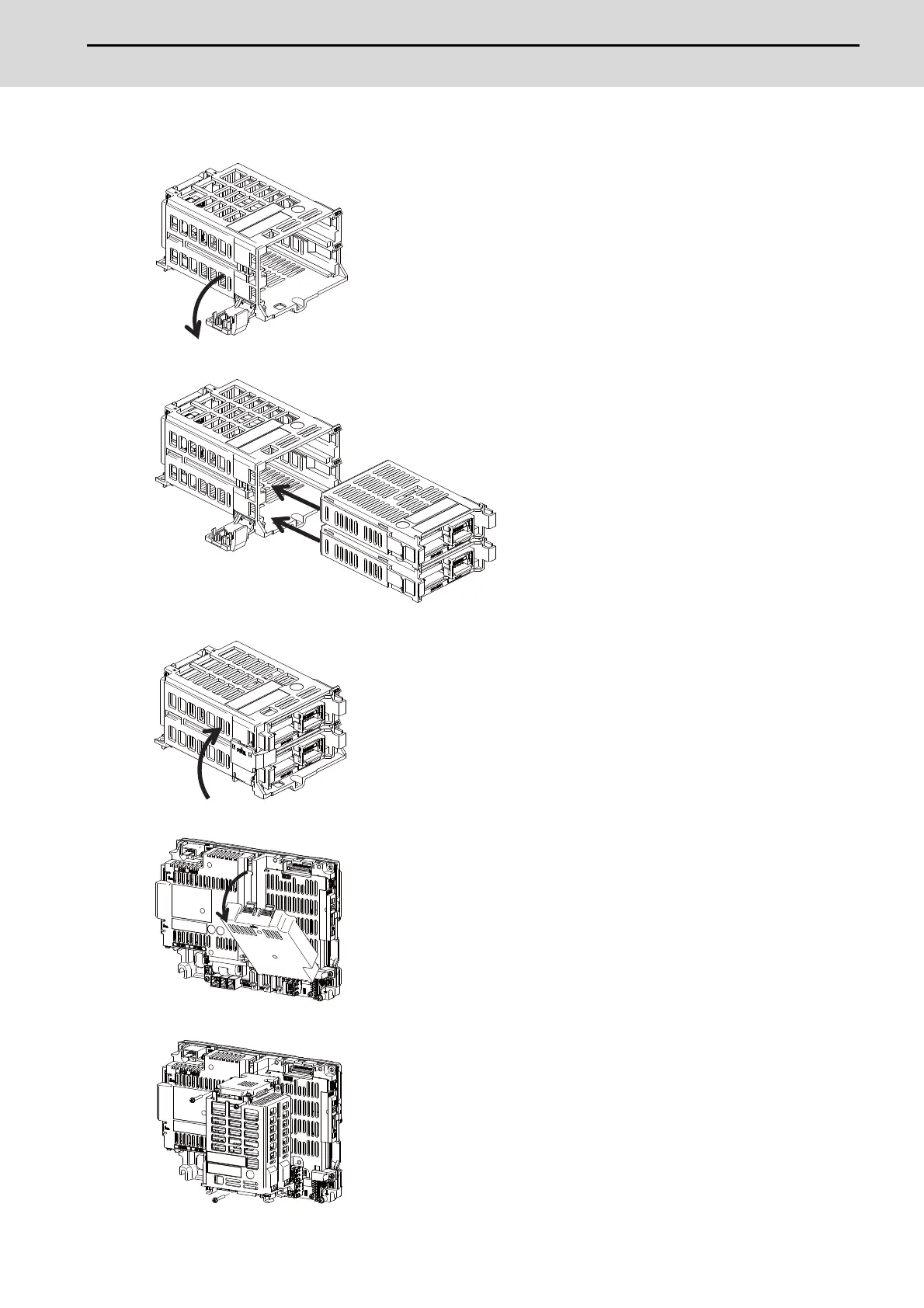

(1) Remove the cover of FCU8-EX703.

(2) Insert FCU8-EX561/EX563/EX564/EX565/EX568 into FCU8-EX703.

(3) Close the cover of FCU8-EX703.

(4) Remove the cover on the back side of control unit.

(5) Fix FCU8-EX703 to the control unit with three screws of M3 x 25.
