M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
161
IB-1501269-J

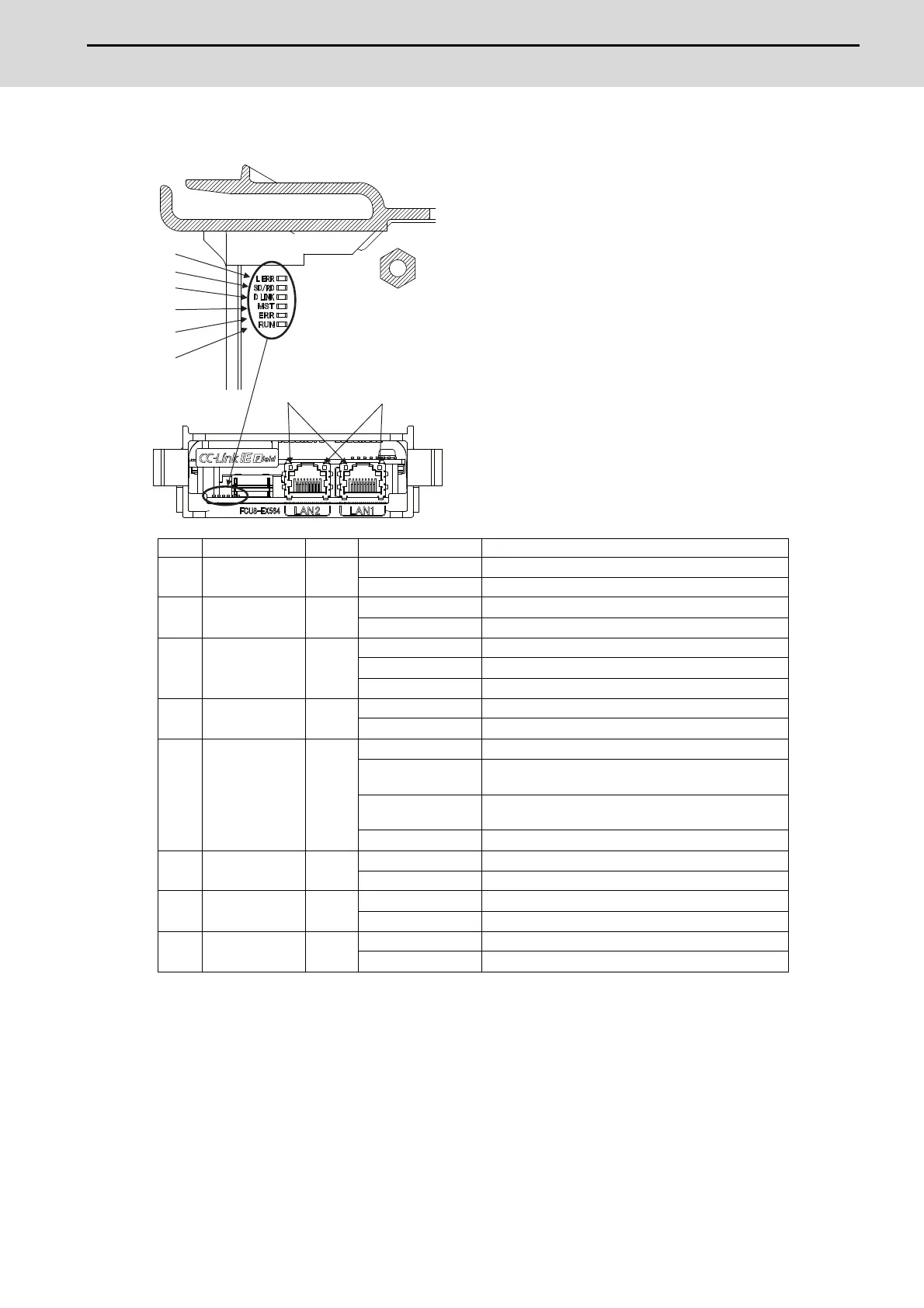

[LED]
No. Name Color Status Details
(1) L ERR Red
Not lit Normal data received and loopback not performed
Lit Abnormal data received or loopback being performed
(2) SD/RD Green
Lit Data being sent or received
Not lit Data not sent nor received
(3) D LINK Green
Lit Data link (cyclic transmission being performed)
Flashing Data link (cyclic transmission stopped)
Not lit Data link not performed (disconnected)
(4) MST Green
Lit Operating as master station
Not lit Operating as local station
(5) ERR Red
Not lit Normal operation
Flashing
(500 ms interval)
A data link faulty station detected
Flashing
(200 ms interval)
Failure occurring
Lit Error in all stations detected or occurring
(6) RUN Green
Lit Hardware running normally
Not lit Hardware error occurring
(7) LINK Green
Lit Link-up
Not lit Link-down
(8) L ER Red
Lit Normal data received and loopback not performed
Not lit Abnormal data received or loopback being performed
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
