M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
166
IB-1501269-J

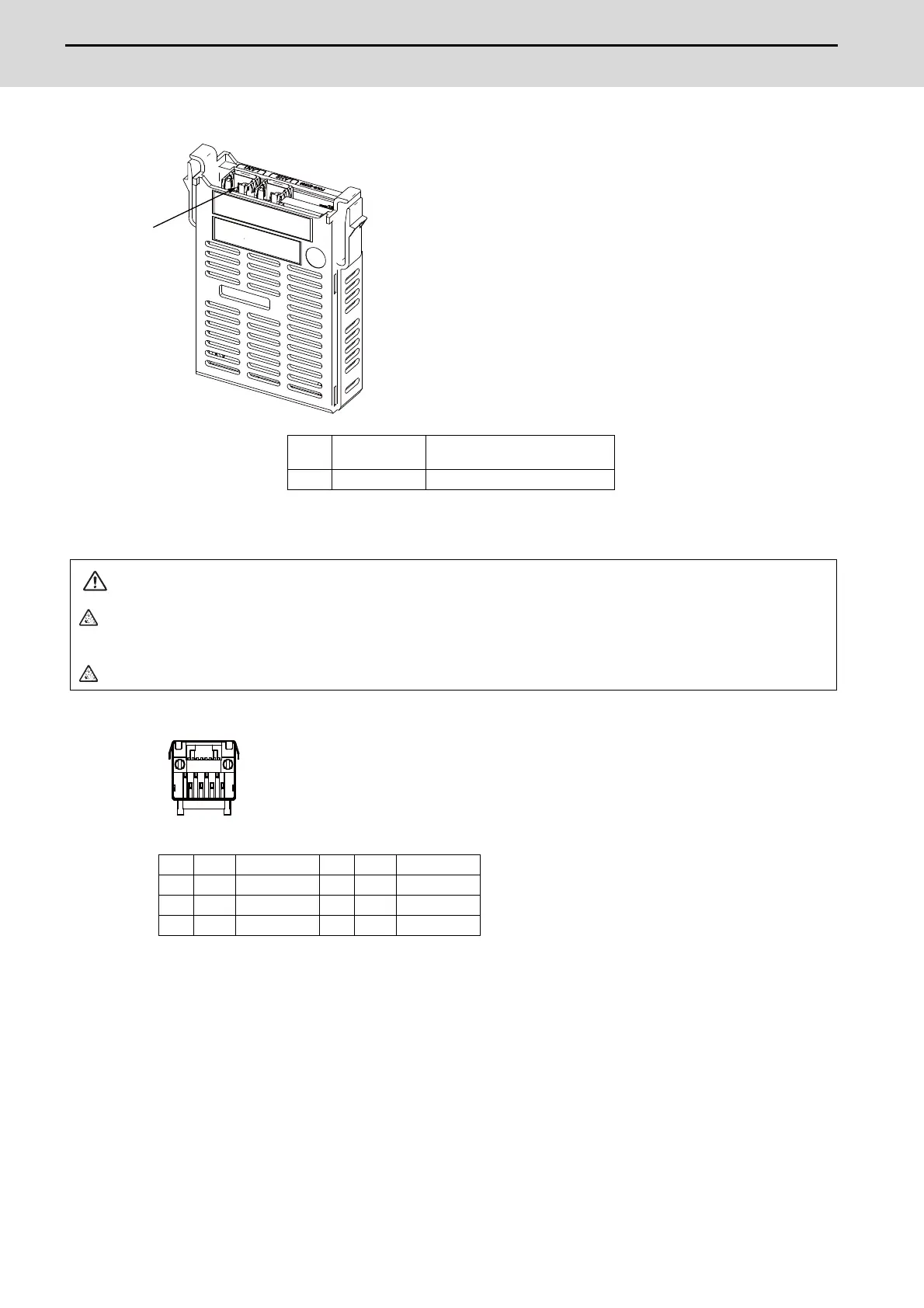

[Connector]
(Note) On this unit, FL-net function is supported by the "LAN1" port only. LAN2 does not support FL-net function.
(1) LAN1 (FL-net communication)
- Connect connector case with FG pattern.
<Cable side connector type>
Connector : J00026A0165
Recommended manufacturer : Japan Telegärtner
No.
Connector
name
Function
(1) LAN1 FL-net communication
CAUTION
Do not apply any voltage to the connectors other than voltage specified in this manual. Failure to observe this
could cause bursting, damage, etc.
Connect the cables to the designated connectors. Incorrect connections could damage the device.
1 OTXD+ 5 NC
2 OTXD- 6 IRXD-
3 IRXD+ 7 NC
4 NC 8 NC
