Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
184
IB-1501269-J
(6) Cutting override

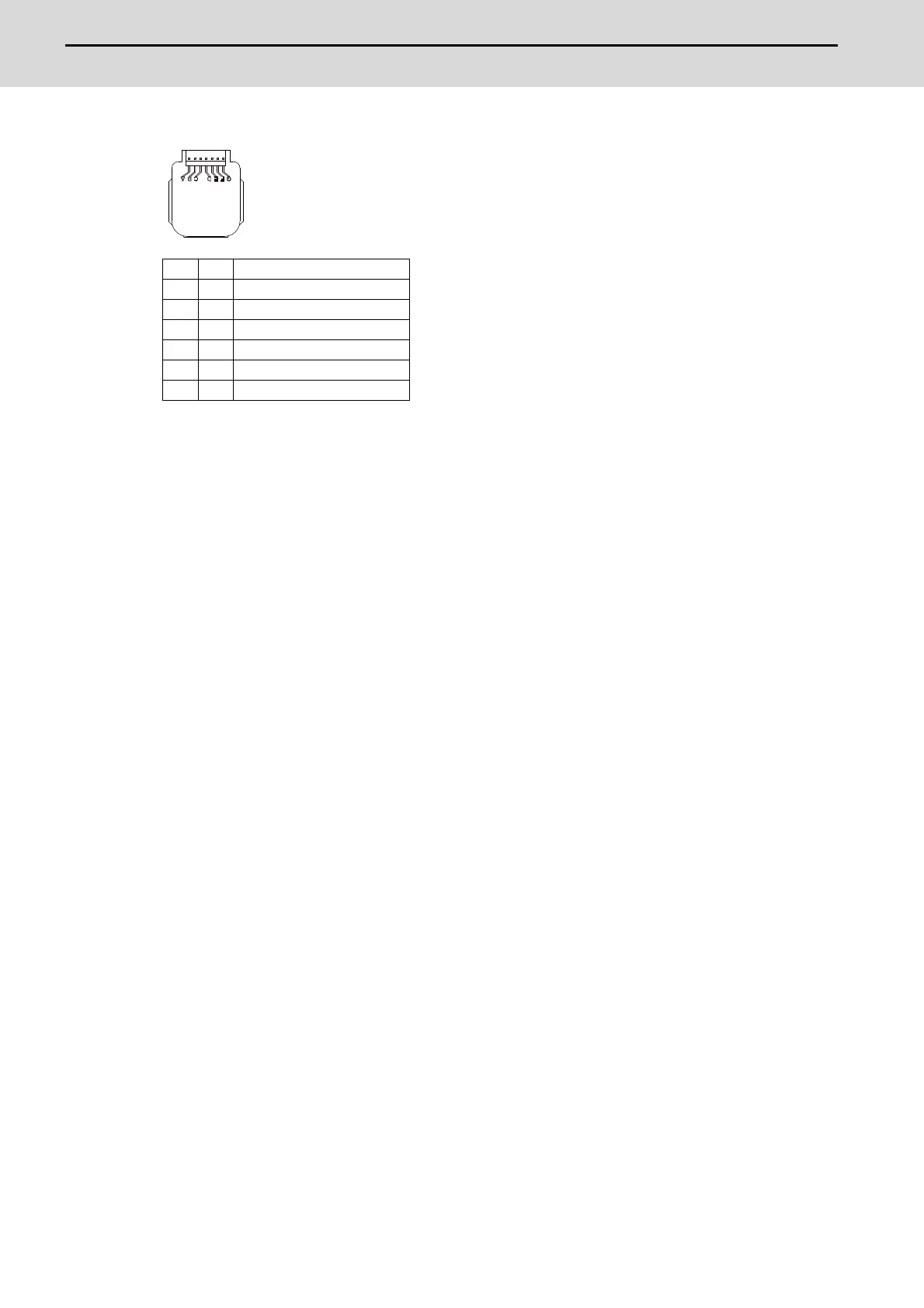

<Switch type>
Switch : AC09-GY0/20L3B02
Recommended manufacturer : Fuji Electric
Connection : Connector
<Switch side connector type>
Connector : IL-7P-S3EN2
Recommended manufacturer : Japan Aviation Electronics
<Cable side connector type>
Connector : IL-7S-S3L-(N)
Contact : IL-C2-10000
Recommended manufacturer : Japan Aviation Electronics
A O Output signal a
B O Output signal c
C O Output signal e
D - Common terminal
E O Output signal d
F O Output signal b
G O Parity check signal
