M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
186
IB-1501269-J

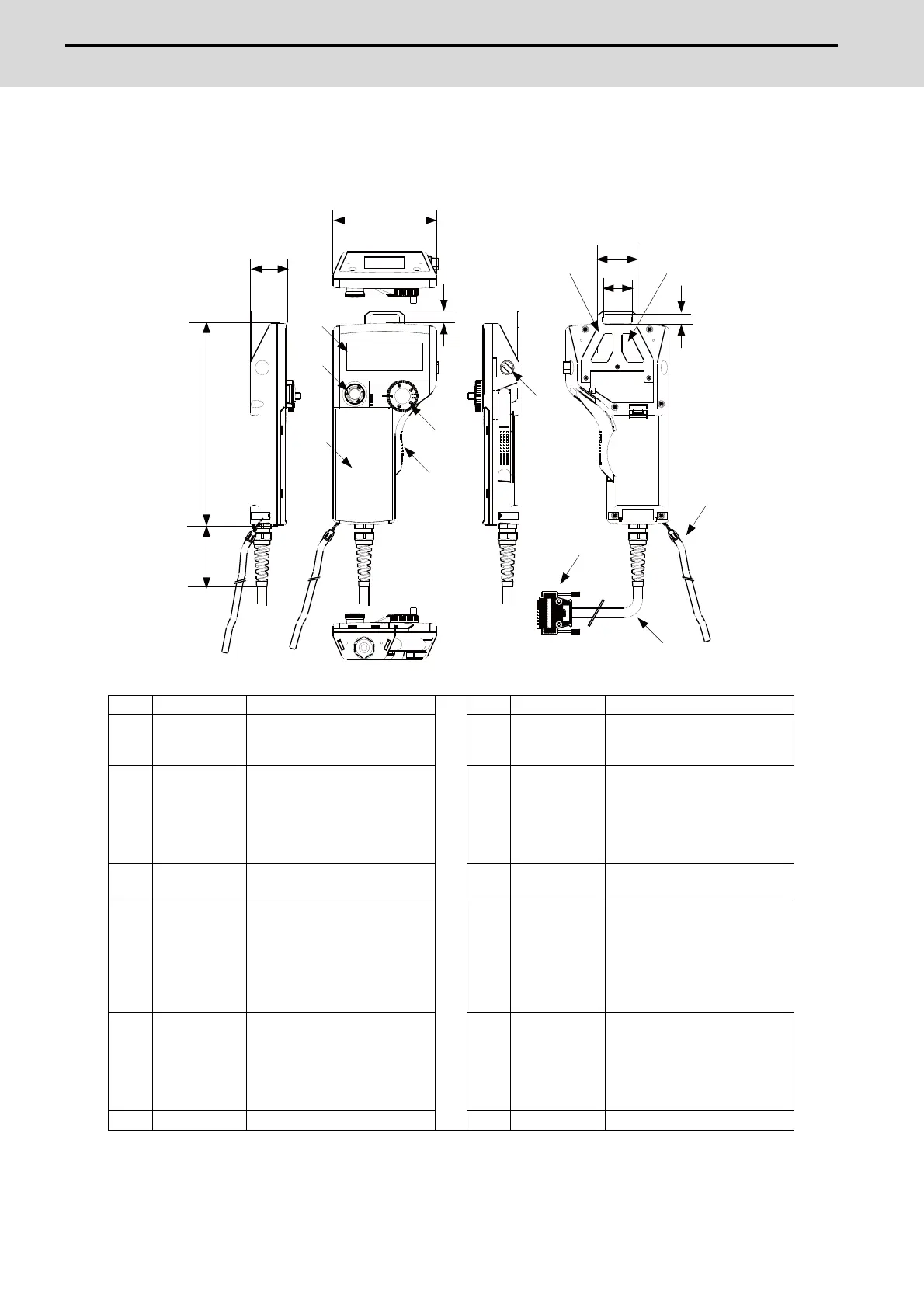

Dimension and names of parts
(Note) Do not press multiple switches simultaneously: When three or more switches are pressed simultaneously,
unpressed switches are also detected as pressed ones.
No. Name Function/ Specification No. Name Function/ Specification
(1) LCD
Monochrome display with
backlight
192(W) × 64(H) dots
(7) HOST
Host interface connector
(DDK: 17JE-23250-02(D8A6))
(2) SW1
Emergency stop switch
Contact rating/ Contact: 24VDC,
1A
Contact configuration: 2b contacts
(IDEC Corporation: HA1E-
V2S2VR)
(8) -
Host interface cable
(5m)
(3) - Membrane switch (Note) (9) -
Simplified hand strap
(IDEC Corporation: HG9Z-PS1)
(4) SW2
Enable switch
Contact rating/ Contact: 24VDC,
50mA
Contact configuration: 3 position
contact × 2
(OFF-ON-OFF)
(IDEC Corporation: HE3B-M2)
(10) -
Panel hanging fitting
(IDEC Corporation: HG9Z-TK1)
(5) SW4
Manual pulse generator
Output: Open collector
4.7kΩ pull-up resistor is
connected. (TOKYO
SOKUTEIKIZAI CO., LTD:
RE19PH50C16RR)
(11) - Serial number plate
(6) SW6 Selector switch
133
255
90
46.7
38
51
11.5
15
(2)
(5)
(6)
(3)
(1)
(4)
(8)
(7)
(9)
(11)(10)
