Mitsubishi M80 series User Manual

M800S/M80/E80 Series Connection and Setup Manual
17 Setting the Hardware
397
IB-1501269-J
When connecting to the operation panel I/O unit
(Note 1) For FCU8-DX731, station No. 1, 3, 7 to 12 and 20 to 22 of 64 stations are occupied, and the extensible
stations are station No. 2, 4 to 6, 13 to 19 and 23 to 64.
(Note 2) For FCU8-DX750, station No. 1 to 3, 7 to 12 and 20 to 22 of 64 stations are occupied, and the extensible
stations are station No. 4 to 6, 13 to 19 and 23 to 64.
(Note 3) For FCU8-DX760, station No. 1 to 4, 7 to 12 and 20 to 22 of 64 stations are occupied, and the extensible
stations are station No. 5, 6, 13 to 19 and 23 to 64.
(Note 4) For FCU8-DX761, station No. 1 to 5, 7 to 12 and 20 to 22 of 64 stations are occupied, and the extensible
stations are station No. 6, 13 to 19 and 23 to 64.
(Note 5) For FCU8-DX834, station No. 1 to 4, 7 to 14 and 20 to 22 of 64 stations are occupied, and the extensible
stations are station No. 5, 6, 15 to 19 and 23 to 64.
(Note 6) Refer to "17.6.4 PLC Device Assignment of Digital Signal (DI/DO)" for device No. assignment.
(Note 7) The maximum connectable number of remote I/O units is 32.

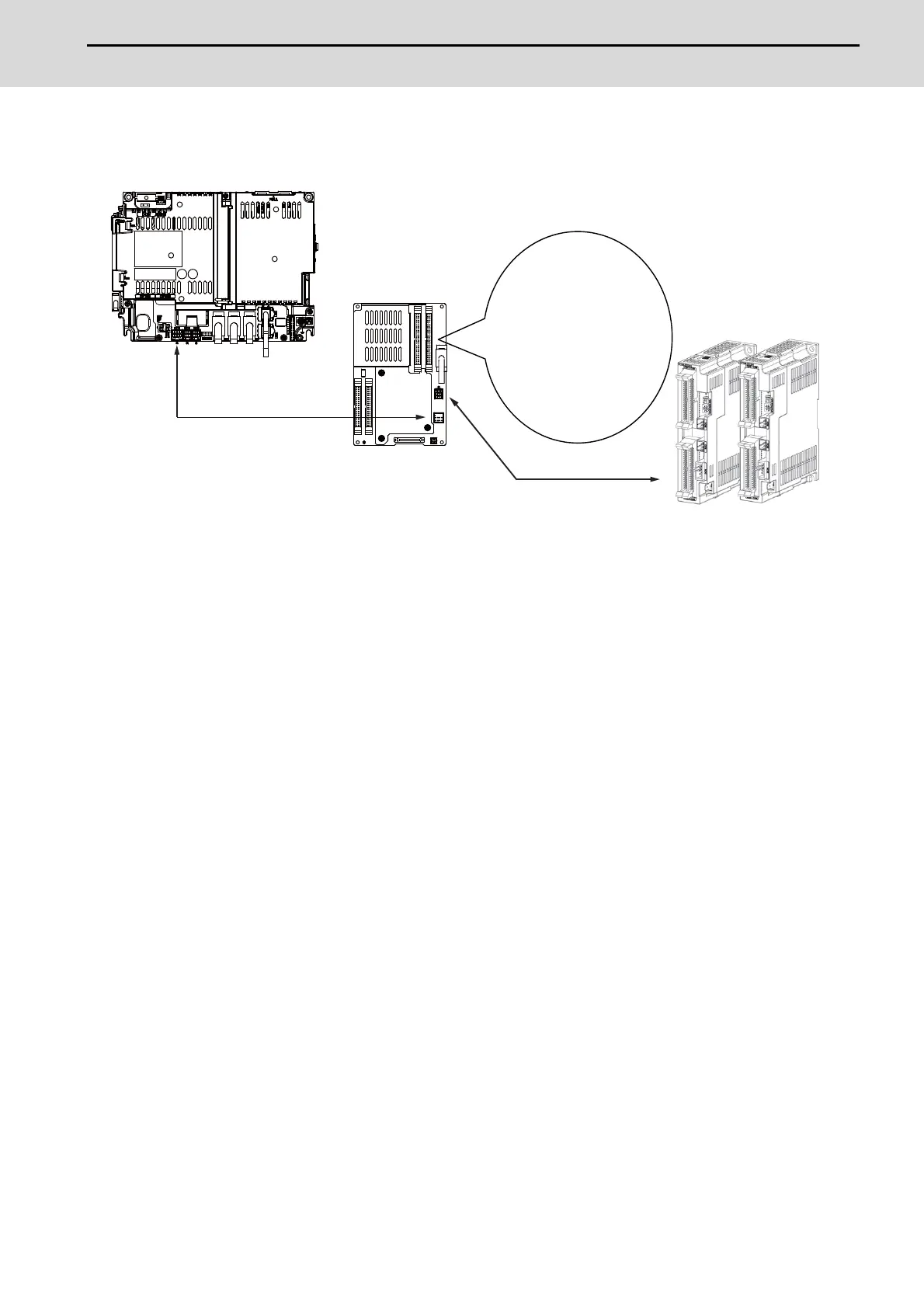

J210
CJ71
J010(FCU8-DX731/750/760/761)
J012(FCU8-DX834)
Control unit
Remote I/O unit
Operation panel I/O unit
Remote I/O3ch
Max. 49 to 53 stations
Max. input: 1568 to 1696 points
Max. output: 1568 to 1696 points
RIO occupied stations
FCU8-DX731:
1, 3, 7 to 12, 20 to 22
FCU8-DX750:
1 to 3, 7 to 12, 20 to 22
FCU8-DX760:
1 to 4, 7 to 12, 20 to 22
FCU8-DX761:
1 to 5, 7 to 12, 20 to 22
FCU8-DX834:
1 to 4, 7 to 14, 20 to 22
