M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
41
IB-1501269-J

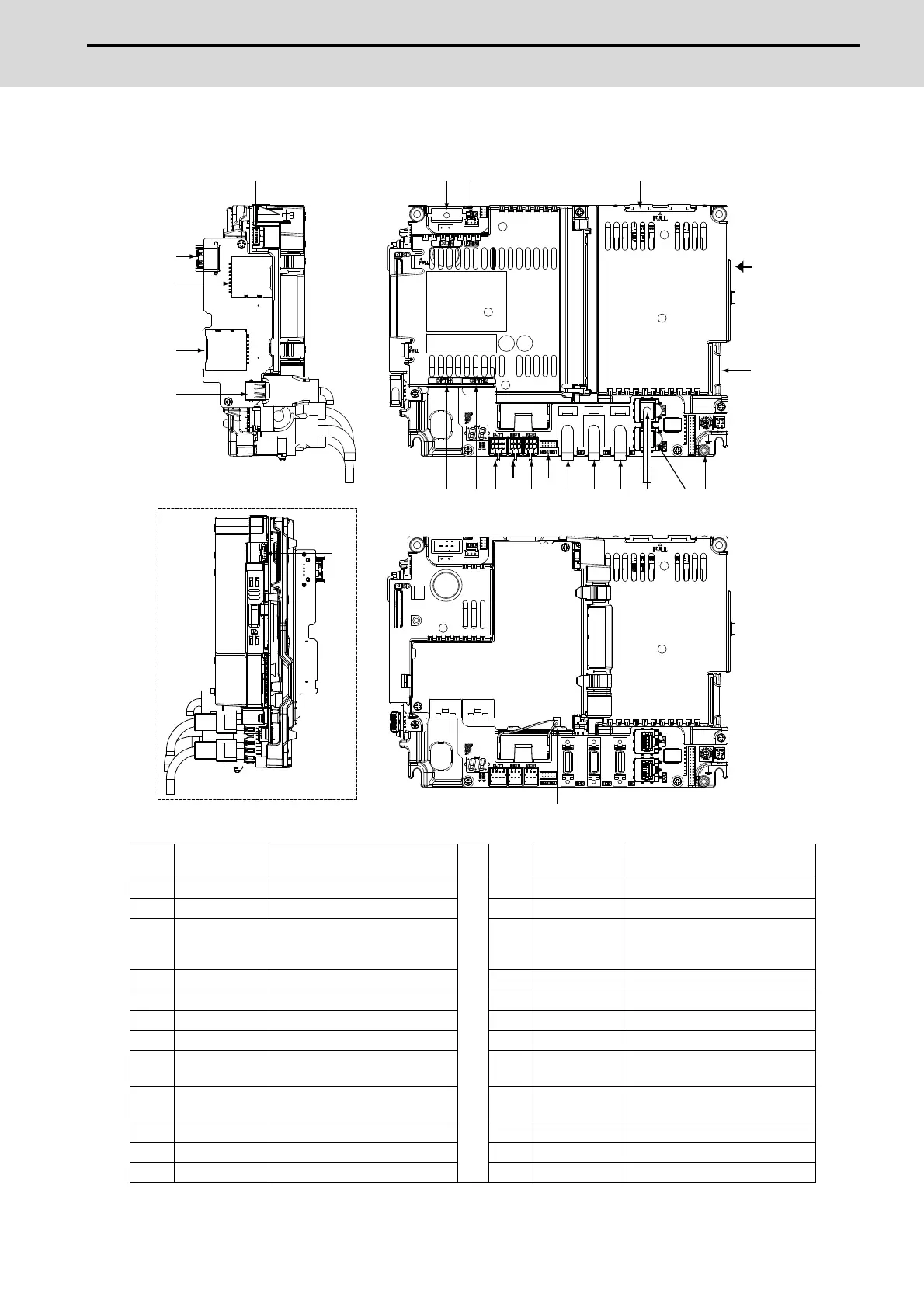

[Connector]
No.
Connector
name
Function No.
Connector
name
Function
(1) USB_F Front-side USB memory I/F (13) RIO2 Remote I/O 2.0 communication
(2) USB_B (14) MENUKEY Menu key I/F
(3) BL Display unit backlight I/F (15) ENC
Encoder input 1ch
(5V manual pulse generator input
2ch)
(4) SDC_F Front-side SD card I/F (16) SKIP SKIP input 8 points
(5) SDC_B Back-side SD card I/F (17) SIO RS-232C communication 2ch
(6) DCIN 24VDC input (18) LAN1 Ethernet communication
(7) EMG External emergency stop input (19) LAN2 Ethernet communication
(8) OPTH1
High-speed optical servo
communication
(20) FG FG terminal
(9) OPTH2
High-speed optical servo
communication
(21) LCD Display unit signal I/F
(10) BAT Battery I/F (22) EXT_P Communication expansion unit I/F
(11) CJ71 Operation panel I/O unit I/F (23) TP Touch panel I/F
(12) RIO1 Remote I/O 2.0 communication
(1)
(2)
(3)
(8)
(5)
(4)
(7)(6)
(9) (13)(11)
(12) (14)
(15) (16) (18)(17) (19) (20)
(21)
(22)
(10)
ArrowA
[Cover opened]
A
(23)
