Polycom CX5500 Unified Conferenc
e Station Administrator’s Guide
1.1.0
Polycom, Inc.
207
Reading a Syslog File

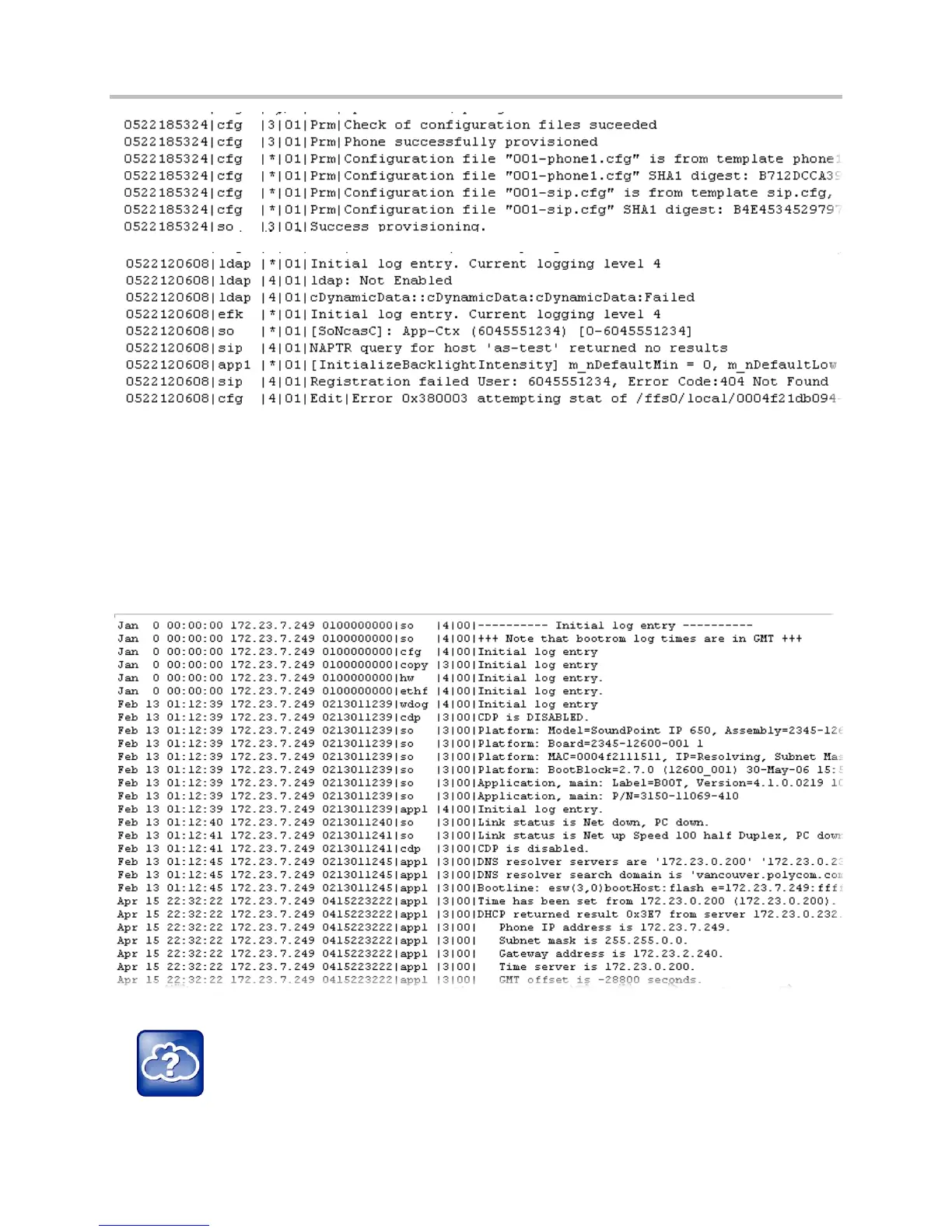

The figure
Syslog File
shows a portion
of a syslog log file. Note
that the messages look identical t
o the
normal log except for the a
ddition of a timestamp and I
P address:
Syslog File
Web Info: Using Syslog on Polycom Phones
For more information about syslog, see
Feature Profile 17124: Using Syslog on Polycom Phones
.
206
208
