Tray Operation
D372 44 SM
2.6 TRAY OPERATION

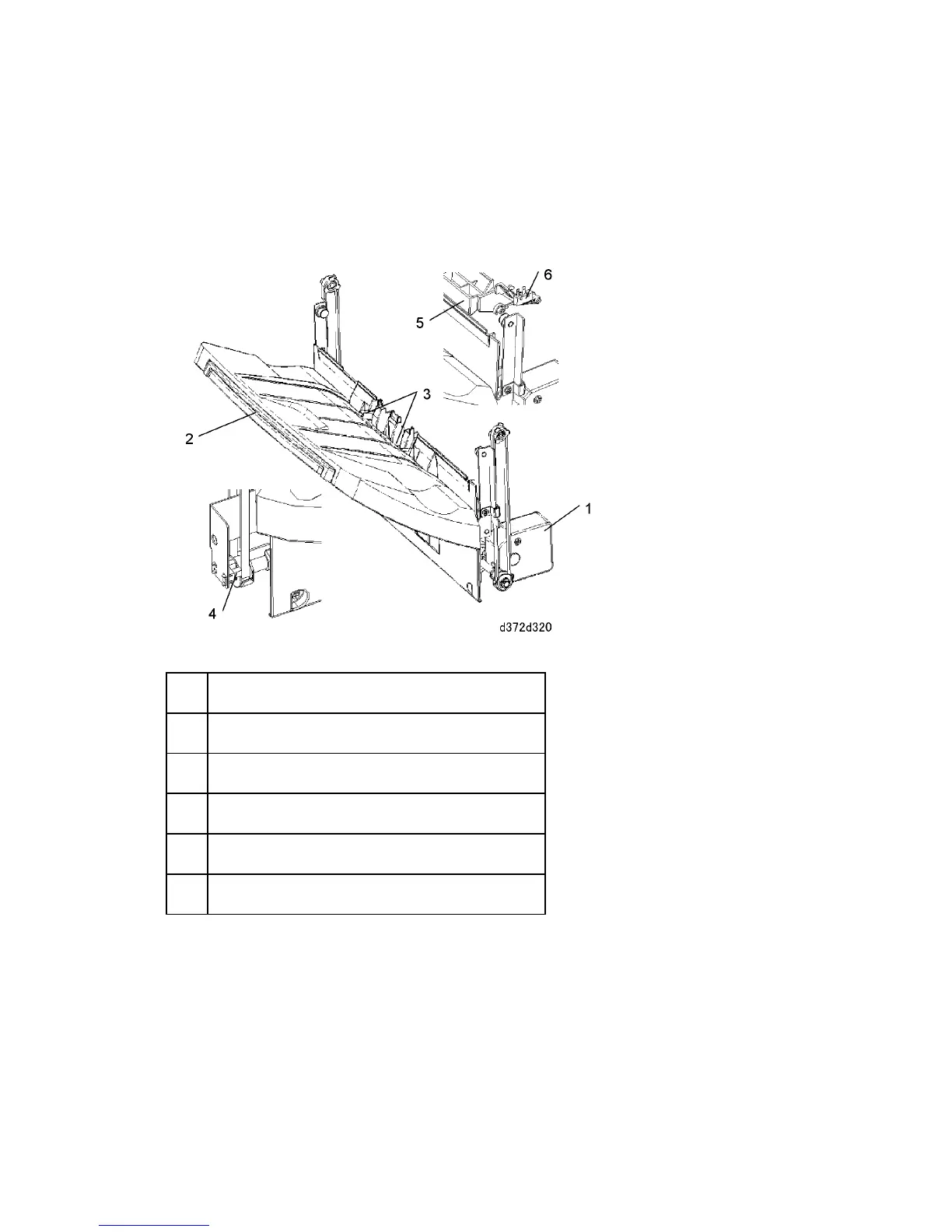

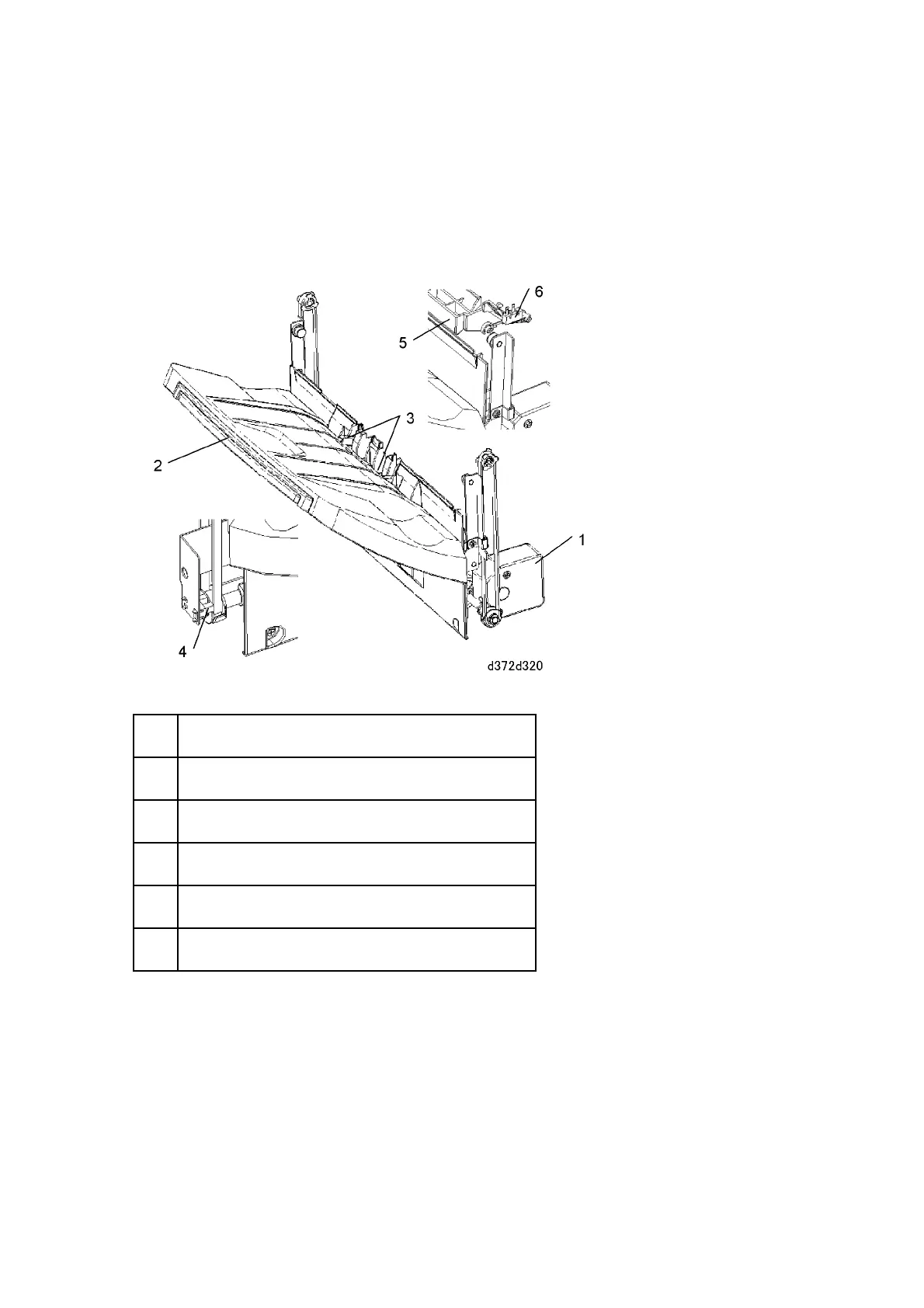

2.6.1 OVERVIEW
1. Tray Lift Motor
2. Output Tray
3. Edge Depressors
4. Tray Full Sensor
5. Upper Limit Push-bar
6. Tray Upper Limit Switch
The tray lift motor (1) raises and lowers the output tray (2).
The edge depressors (3) lightly press down on the trailing edges of stacks already on the
tray to keep them down against the end fence.
When the actuator on the bottom of the rear rail switches the tray full sensor (4) ON, this
means that the tray is at its lowest point and the tray is full.
If the tray becomes overloaded, the top of the stack pushes up the spring-loaded push-bar
