Fusing/Exit
SM 3-39 D017/D018/D019/D020
Replacement
and
Adjustment

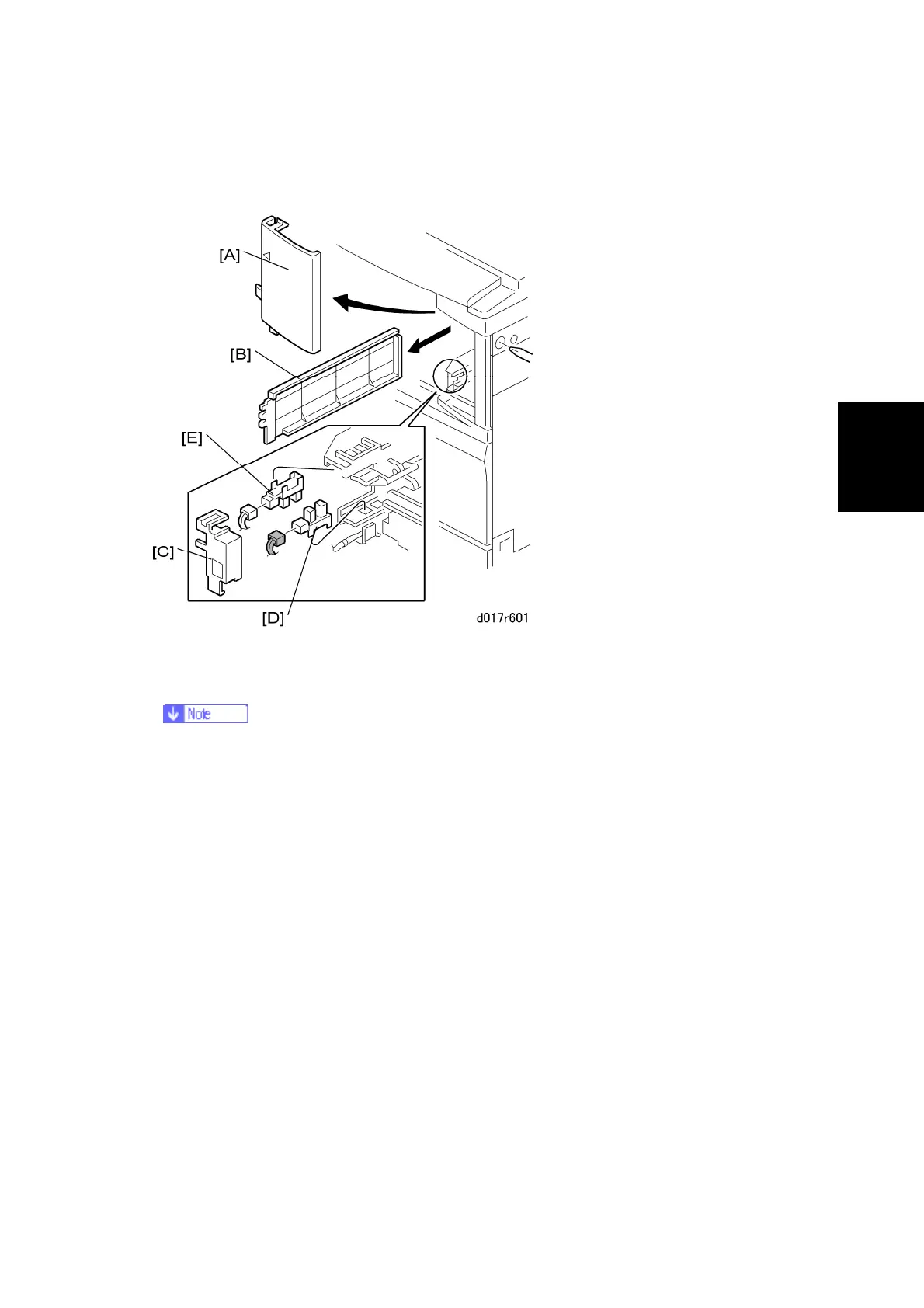

3.7.6 PAPER EXIT SENSOR/PAPER OVERFLOW SENSOR
1. Remove the front upper cover [A] ( x1, Peg x1).
2. Remove the exit cover [B].
 If the optional one-bin tray unit and/or interchange unit have been installed,
remove them.
3. Remove the cover [C].
4. Replace the exit sensor [D] ( x1).
5. Replace the overflow sensor [E] ( x1).
