Scanner Unit
D017/D018/D019/D020 3-8
SM

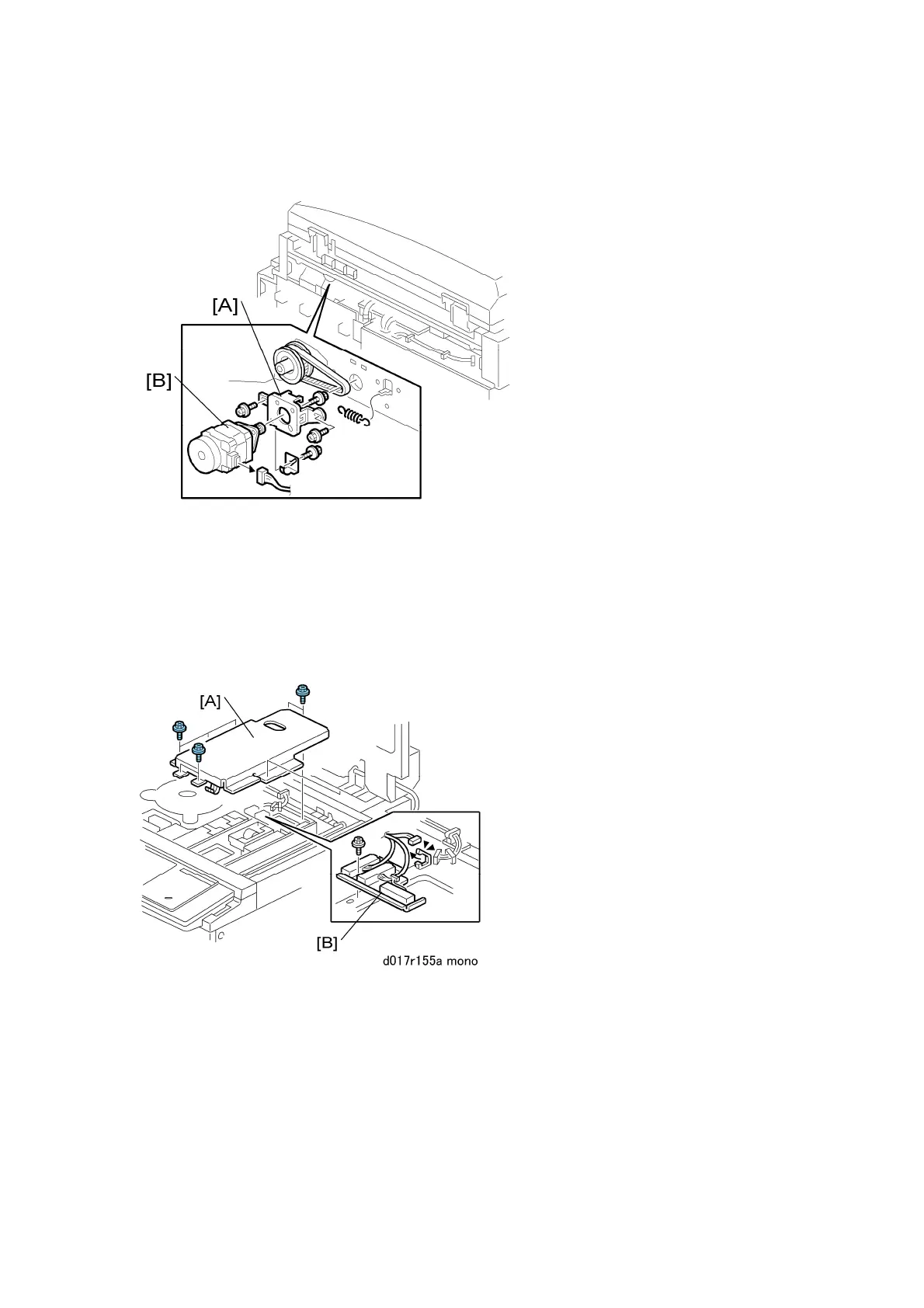

3.3.4 SCANNER
MOTOR
1.
Rear cover (
Rear Cover)
2.
Scanner motor assembly [A] (
x 2,
x 1, spring x 1)
3.
Scanner motor [B] (
x 2)
3.3.5
SENSOR BOARD UNIT (SBU)
Monochrome Scanner Unit
1. Remove:
Exposure glass (
Exposure glass)
[A] SBU cover (
x3)
[B] Original length sensor bracket (
x1,
=
x1)
139
141
