Paper Feed
D017/D018/D019/D020 3-44 SM

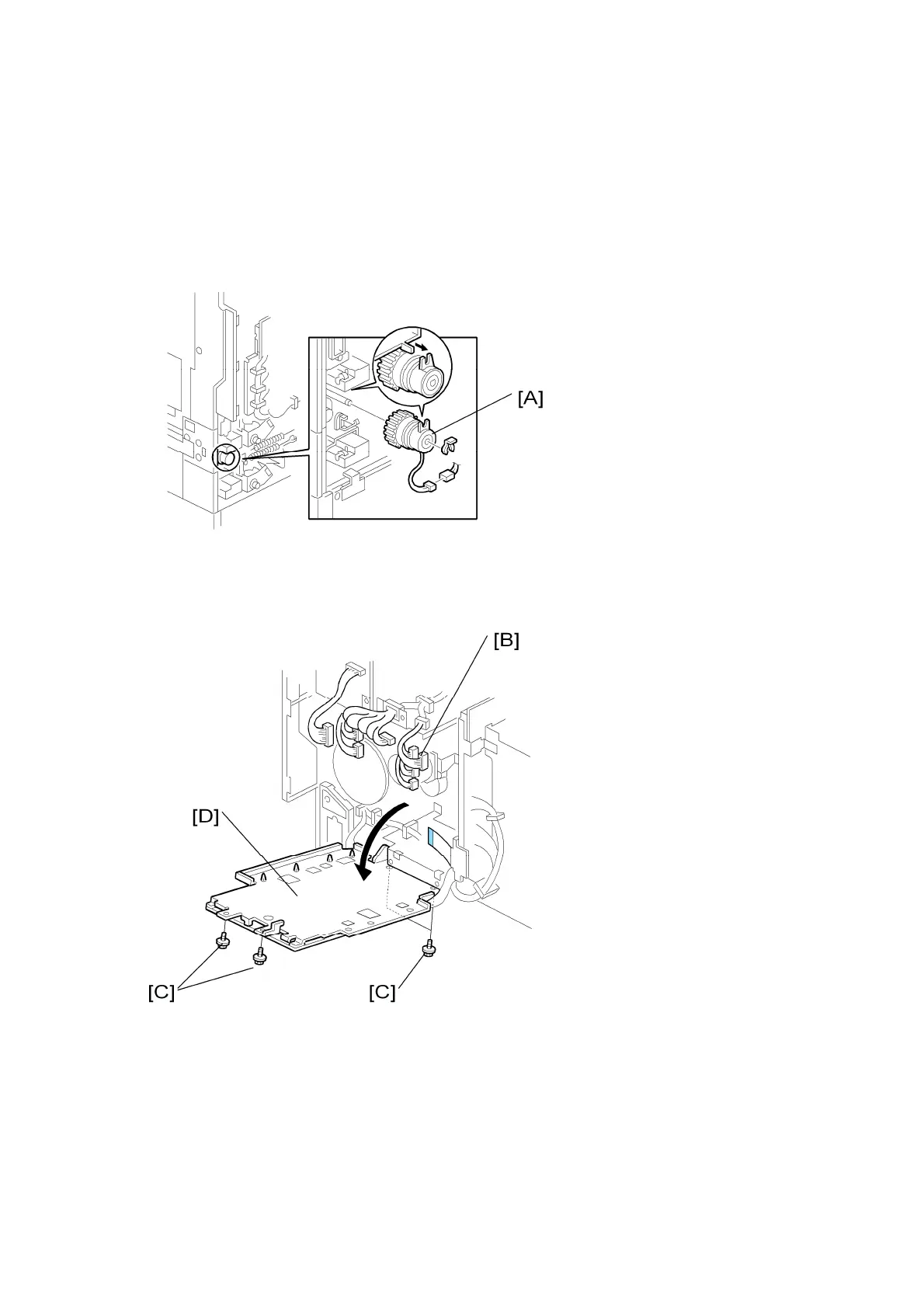

3.8.7 PAPER FEED CLUTCHES
Lower Paper Feed Clutch
1. Remove the rear cover.
2. Remove the lower rear cover.
3. Replace the lower paper feed clutch [A] ( x 1,  x 1).
Upper Paper Feed Clutch
1. Disconnect the connectors [B] for the BCU board as shown ( x15).
2. Remove 4 screws [C] securing the BCU board bracket then swing down the BCU
board bracket [D].
