B793 54 SM
2.11.3 FOLD ROLLERS

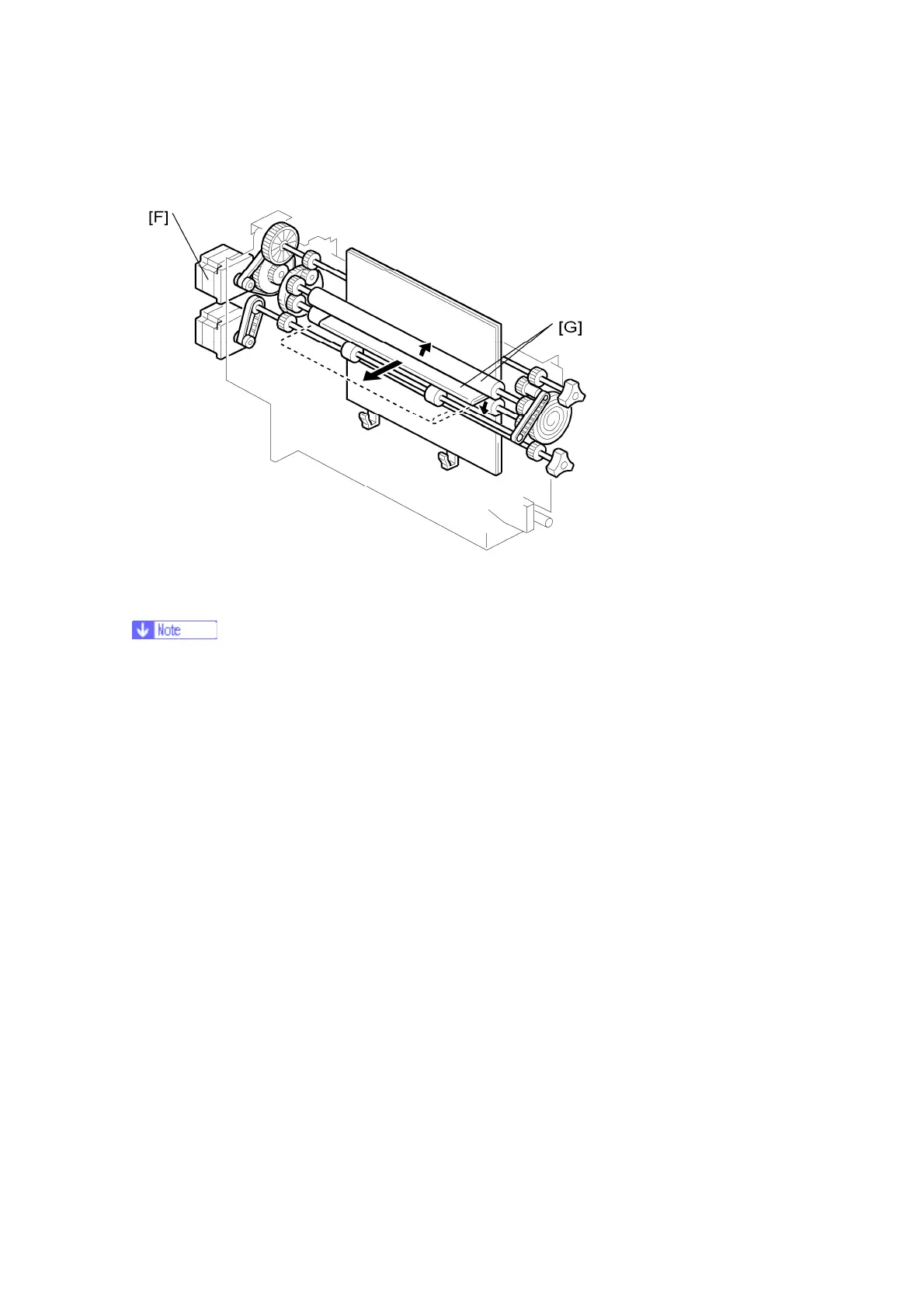

[F]: Fold Roller Motor. Drives forward to feed out the stack at the fold, and then drives
forward again to feed out the folded stack.
 This cycle can be repeated by changing the setting of SP6136.
[G]: Fold Rollers. Driven by the fold roller motor, this roller pair feeds out the stack at its fold,
reverses to feed in the stack to, and then feeds forward again (assisted by the fold unit exit
rollers – not shown) to feed out the stack to the lower tray.
