Paper Feed
D017/D018/D019/D020 3-42
SM

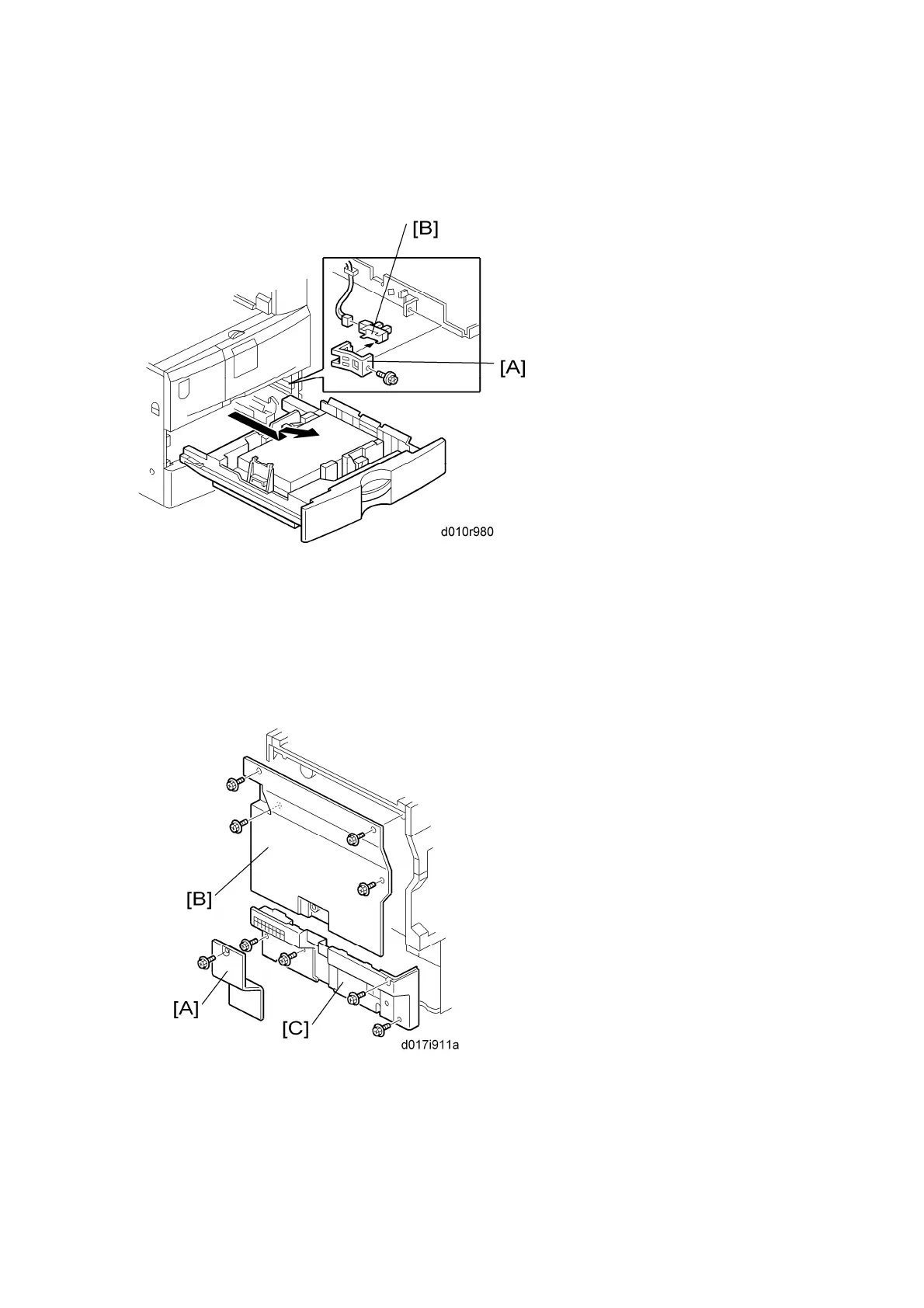

3.8.4 PAPER
END
SENSOR
1. Paper
cassette
2. Bracket
[A]
(
x 1,
x 1)
3.
Paper end sensor [B] (Hook x1)
3.8.5
PAPER TRAY LIFT MOTORS
1.
Remove the paper tray
.
2. Remove:
[A] Connector cover (
x1) and disconnect the cable.
[B] Rear cover (
x4).
[C] Lower rear cover (
x4).
