Duplex Unit (D369)
SM 1-39 D017/D018/D019/D020
Installation
1.10 DUPLEX UNIT (D369)

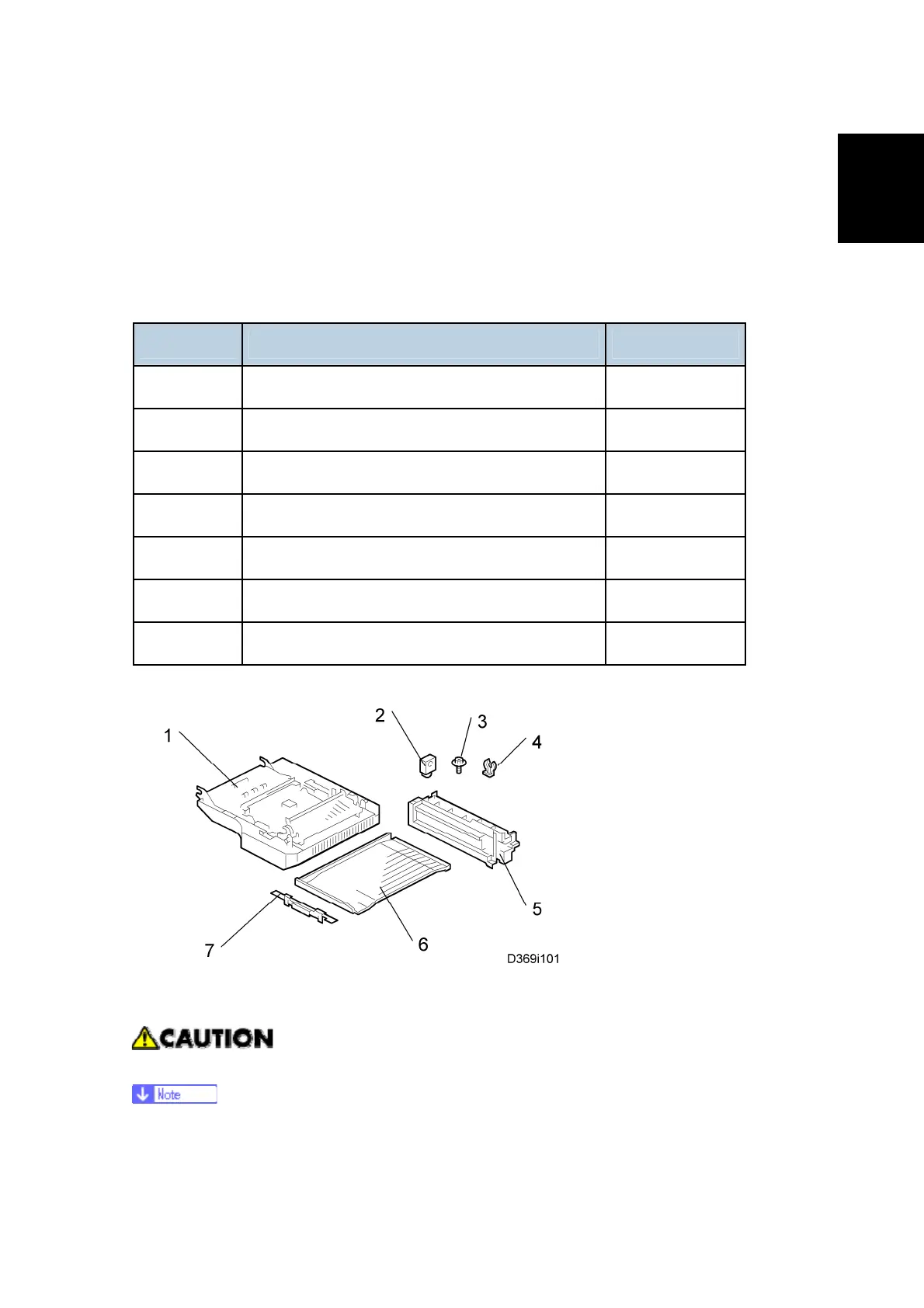

1.10.1 ACCESSORY CHECK
Check the quantity and condition of the components against the following list.
No. Description Quantity
1 Duplex Unit 1
2 Connector Cover 1
3 Tapping Screw – M3 x 8 3
4 Clip 1
5 Duplex Guide 1
6 Duplex Tray 1
7 Duplex Tray Guide 1
1.10.2 INSTALLATION PROCEDURE
 Unplug the copier power cord before starting the following procedure.
 Before installing the duplex unit, the optional interchange unit (D371) must be
installed.
To Next Page
