Copy Adjustments: Printing/Scanning
D017/D018/D019/D020 3-66 SM
1. Place the test chart on the exposure glass and make a copy from one of the feed
stations.
2. Check the magnification ratio. Use SP4-008 (Scanner Sub Scan Magnification) to
adjust if necessary. Specification: ±0.9%.
3.10.3 ADF IMAGE ADJUSTMENT
Registration

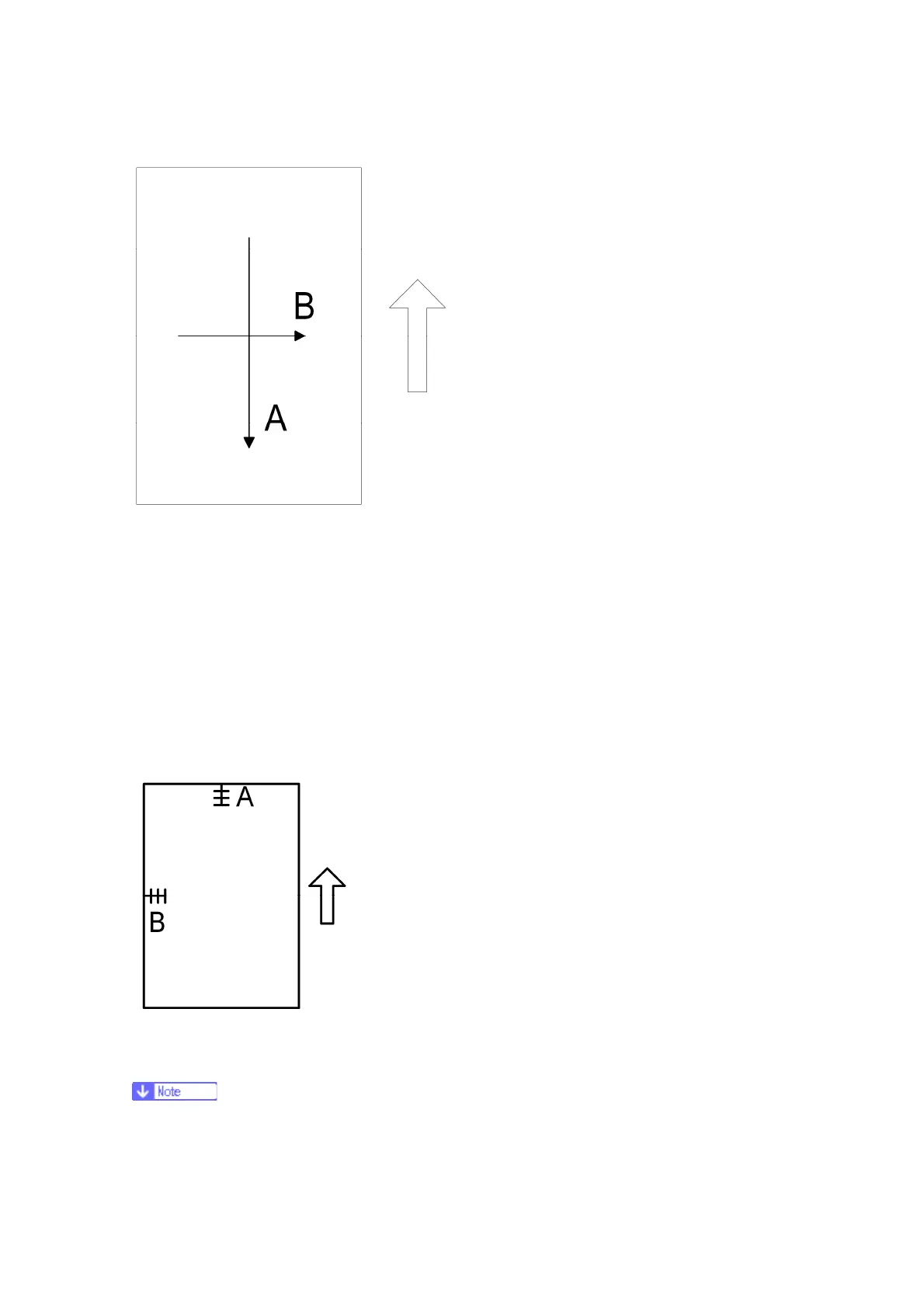

A: Leading Edge Registration
B: Side-to-side Registration
 Make a temporary test chart as shown above using A3/DLT paper.
1. Place the temporary test chart on the ADF and make a copy from one of the feed
To Next Page
